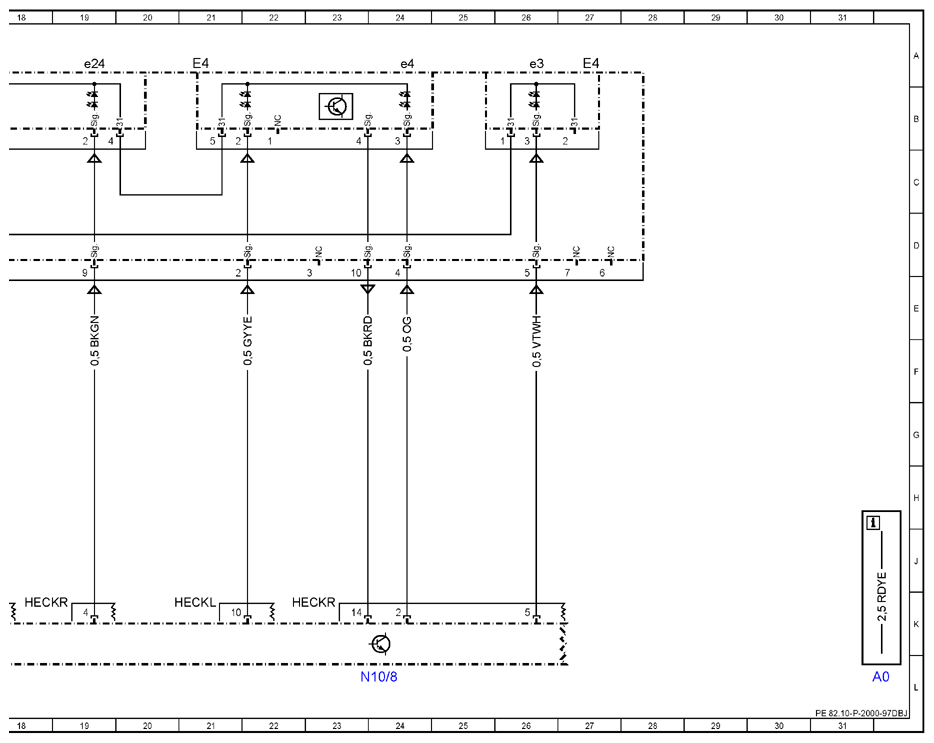

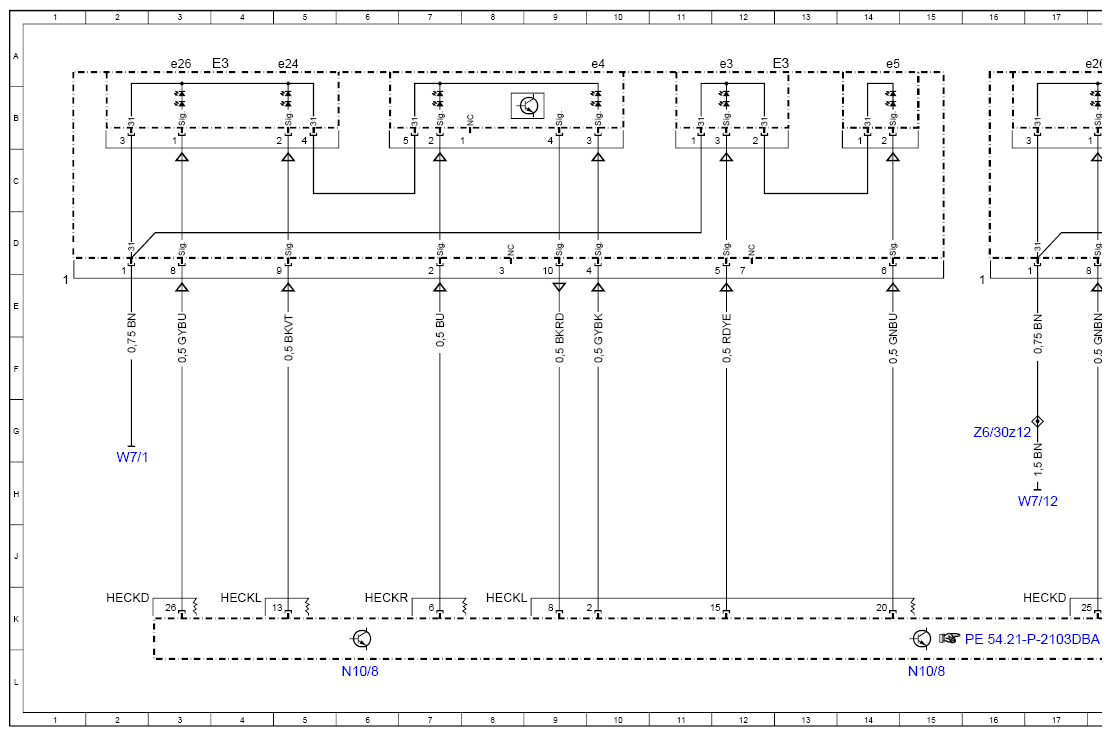

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DBJ
Model 213.0/1 up to model year 2021
with code 494 (US version)
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic) Lamp unit E3, E4
with code P35 (Light Package) Lamp unit E3, E4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| Code 045 | LED rear lamp | - |
| Code 494 | USA version | - |
| E3 | Left rear lamp unit | 4A |
| E3 | Left rear lamp unit | 13A |
| E3e24 | Lower left brake light | 5A |
| E3e26 | Lower left taillight | 3A |
| E3e3 | Left backup lamp | 12A |
| E3e4 | Left stop lamp | 10A |
| E3e5 | Left rear fog lamp | 14A |
| E4 | Right rear lamp unit | 21A |
| E4 | Right rear lamp unit | 27A |
| E4e24 | Lower right brake light | 19A |
| E4e26 | Lower right taillight | 18A |
| E4e3 | Right backup lamp | 26A |
| E4e4 | Right stop lamp | 24A |
| N10/8 | Rear SAM control unit | 6L |
| N10/8 | Rear SAM control unit | 15L |
| N10/8 | Rear SAM control unit | 24L |
| W7/1 | Right taillamp trunk ground point | 2H |
| W7/12 | Right floor AdBlue® ground point | 17H |
| Z6/30z12 | Circuit 31 connector sleeve | 16G |
