Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020LWE

Model 213.0/2

with code 877 (Ambient lighting)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Update Vehicle Documentation (VeDoc)
1	Enter special equipment into online vehicle data card.	Code O26 (Exit and warning lamp with logo projector). Make sure here that the first digit is the letter "O" for Oscar.
2	Attach a note "Exit and warning lamp with logo projector retrofitted as per AZ82.20-P-0020LWE " under field organization texts to DG 72 and DG 82.
	Remove
3	Remove left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6).	Starting at the bottom, on the left side, unclip the exit and warning lamp on left front door (E17/3), exit and warning lamp on right front door (E17/4), exit and warning lamp on left rear door (E17/5) and the exit and warning lamp on the right rear door (E17/6). Otherwise, the electrical connector located on the right-hand side will be damaged. Long wedge	Fig 1
4	Remove black 2-pin connector from left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6).	Left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6) are no longer required.
	Install

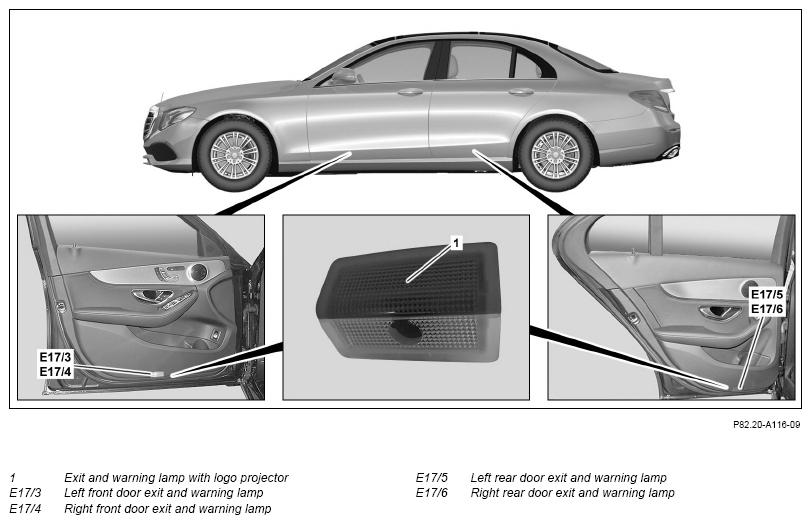

5	Install exit and warning lamp with logo projector (1) in front door on right and left.		AZ82.20-P-0020-04A
		If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot. Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
6	Install exit and warning lamp with logo projector (1) in rear door on right and left.		AZ82.20-P-0020-05A
		If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot. Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
	Check
7	Perform function test.	The entry and exit illumination on overhead control panel control unit must be switched on.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see XENTRY Portal parts information)	Parts kit for exit and warning lamps with logo projector	1
