Wiring Diagram Of Rear Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2103-97DDA
Model 213 as of model year 2021 Control unit N10/8
| Code: | Designation: | Position: |
|---|---|---|

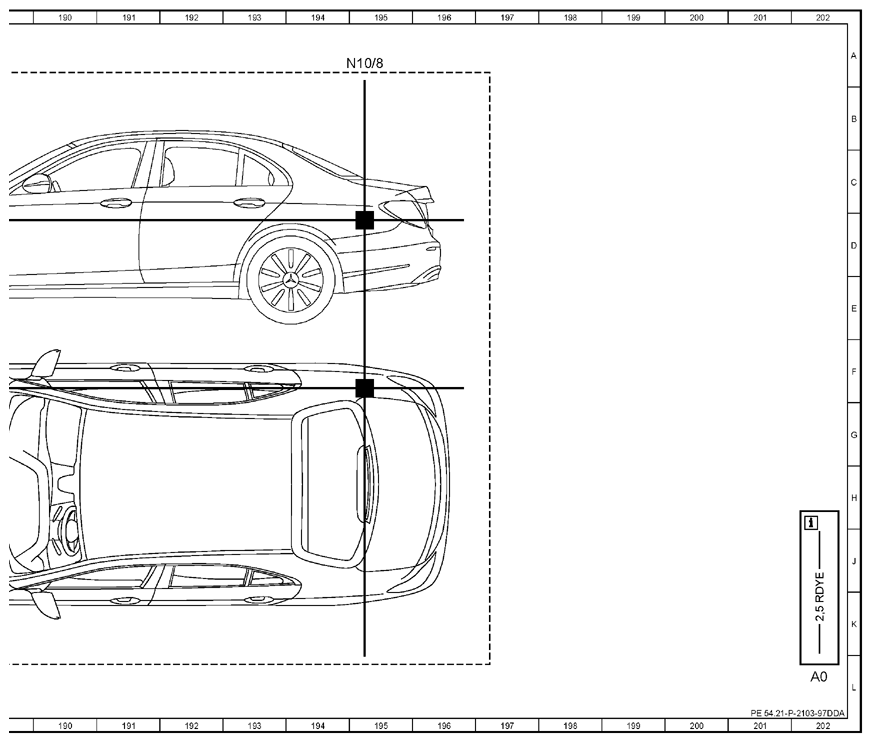

| A0 | Use of wiring diagrams | 202L |
| A100 | High-voltage battery module | 98L |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 41L |
| A85/5 | Trunk lid/liftgate lock | 46L |
| A85/5 | Trunk lid/liftgate lock | 47L |
| A85/5 | Trunk lid/liftgate lock | 54L |
| B92/10 | Left outer rear bumper radar sensor | 37L |
| B92/11 | Left outer rear bumper integrated radar sensor | 40L |
| B92/12 | Short and long-range radar sensor | 41L |
| B92/2 | Left outer front bumper radar sensor | 29L |
| B92/5 | Right outer front bumper radar sensor | 28L |
| B92/6 | Right outer rear bumper integrated radar sensor | 38L |
| B92/7 | Right outer rear bumper radar sensor | 39L |
| Code 218 | Backup camera | 50G |
| Code 218 | Backup camera | 51G |
| Code 218 | Backup camera | 132G |
| Code 218 | Backup camera | 123G |
| Code 234 | Blind Spot Assist (BSM) | 40G |
| Code 234 | Blind Spot Assist (BSM) | 38G |
| Code 234 | Blind Spot Assist (BSM) | 37G |
| Code 234 | Blind Spot Assist (BSM) | 39G |
| Code 235 | Parking Pilot | 51G |
| Code 235 | Parking Pilot | 50G |
| Code 235 | Parking Pilot | 132G |
| Code 235 | Parking Pilot | 123G |
| Code 239 | Active Distance Assist DISTRONIC | 41G |
| Code 23P | Driver assistance package | 37G |
| Code 23P | Driver assistance package | 39G |
| Code 23P | Driver assistance package | 41G |
| Code 287 | Through-loading feature | 133G |
| Code 287 | Through-loading feature | 133G |
| Code 287 | Through-loading feature | 128G |
| Code 287 | Through-loading feature | 134G |
| Code 287 | Through-loading feature | 135G |
| Code 287 | Through-loading feature | HOG |
| Code 287 | Through-loading feature | 136G |
| Code 287 | Through-loading feature | 136G |
| Code 287 | Through-loading feature | 138G |
| Code 287 | Through-loading feature | 137G |
| Code 287 | Through-loading feature | 139G |
| Code 292 | PRE-SAFE PULSE | 29G |
| Code 292 | PRE-SAFE PULSE | 28G |
| Code 292 | PRE-SAFE PULSE | 27G |
| Code 306 | Belt airbag | 142G |
| Code 401 | Seat climate control for driver and front passenger | 149G |
| Code 494 | USA version | 73G |
| Code 494 | USA version | 83G |
| Code 494 | USA version | 107G |
| Code 540 | Electric roller sun blind for rear window | 129G |
| Code 540 | Electric roller sun blind for rear window | 145G |
| Code 540 | Electric roller sun blind for rear window | 146G |
| Code 540 | Electric roller sun blind for rear window | 148G |
| Code 540 | Electric roller sun blind for rear window | 169G |
| Code 540 | Electric roller sun blind for rear window | 170G |
| Code 550 | Trailer hitch | 15G |
| Code 550 | Trailer hitch | 15G |
| Code 550 | Trailer hitch | 14G |
| Code 550 | Trailer hitch | 16G |
| Code 872 | Left and right rear seat heaters | 153G |
| Code 873 | Seat heater for driver and front passenger | 150G |
| Code 877 | Ambiance illumination | 70G |
| Code 877 | Ambiance illumination | 71G |
| Code 877 | Ambiance illumination | 74G |
| Code 877 | Ambiance illumination | 75G |
| Code 877 | Ambiance illumination | 76G |
| Code 881 | Trunk lid control | 26G |
| Code 881 | Trunk lid control | 24G |
| Code 906 | Front armrest heater | 149G |
| Code 907 | Rear armrest heater | 149G |
| Code B01 | 48V technology | 42G |
| Code FS | STATION WAGON | 34G |
| Code FS | STATION WAGON | 36G |
| Code FS | STATION WAGON | 28G |
| Code FS | STATION WAGON | 32G |
| Code FS | STATION WAGON | 46G |
| Code FS | STATION WAGON | 47G |
| Code FS | STATION WAGON | 49G |
| Code FS | STATION WAGON | 52G |
| Code FS | STATION WAGON | 53G |
| Code FS | STATION WAGON | 54G |
| Code FS | STATION WAGON | 43G |
| Code FS | STATION WAGON | 45G |
| Code FS | STATION WAGON | 73G |
| Code FS | STATION WAGON | 68G |
| Code FS | STATION WAGON | 69G |
| Code FS | STATION WAGON | 82G |
| Code FS | STATION WAGON | 84G |
| Code FS | STATION WAGON | 78G |
| Code FS | STATION WAGON | 79G |
| Code FS | STATION WAGON | 80G |
| Code FS | STATION WAGON | 97G |
| Code FS | STATION WAGON | 98G |
| Code FS | STATION WAGON | 101G |
| Code FS | STATION WAGON | 105G |
| Code FS | STATION WAGON | 106G |
| Code FS | STATION WAGON | 104G |
| Code FS | STATION WAGON | 130G |
| Code FS | STATION WAGON | 131G |
| Code FS | STATION WAGON | 134G |
| Code FS | STATION WAGON | 124G |
| Code FS | STATION WAGON | 125G |
| Code FS | STATION WAGON | 139G |
| Code FS | STATION WAGON | 144G |
| Code FS | STATION WAGON | 146G |
| Code FS | STATION WAGON | 147G |
| Code FS | STATION WAGON | 136G |
| Code FS | STATION WAGON | 138G |
| Code FS | STATION WAGON | 156G |
| Code FS | STATION WAGON | 157G |
| Code FS | STATION WAGON | 159G |
| Code FS | STATION WAGON | 159G |
| Code FS | STATION WAGON | 158G |
| Code FS | STATION WAGON | 172G |
| Code FS | STATION WAGON | 172G |
| Code FS | STATION WAGON | 171G |
| Code FS | STATION WAGON | 168G |
| Code FS | STATION WAGON | 25G |
| Code FS | STATION WAGON | 23G |
| Code FV | LONG SEDAN | 45G |
| Code FV | LONG SEDAN | 49G |
| Code FV | LONG SEDAN | 55G |
| Code FV | LONG SEDAN | 56G |
| Code FV | LONG SEDAN | 44G |
| Code FV | LONG SEDAN | 72G |
| Code FV | LONG SEDAN | 66G |
| Code FV | LONG SEDAN | 68G |
| Code FV | LONG SEDAN | 83G |
| Code FV | LONG SEDAN | 77G |
| Code FV | LONG SEDAN | 79G |
| Code FV | LONG SEDAN | 81G |
| Code FV | LONG SEDAN | 103G |
| Code FV | LONG SEDAN | 96G |
| Code FV | LONG SEDAN | 99G |
| Code FV | LONG SEDAN | 100G |
| Code FV | LONG SEDAN | 106G |
| Code FW | SEDAN | 103G |
| Code FW | SEDAN | 46G |
| Code FW | SEDAN | 50G |
| Code FW | SEDAN | 55G |
| Code FW | SEDAN | 56G |
| Code FW | SEDAN | 44G |
| Code FW | SEDAN | 72G |
| Code FW | SEDAN | 67G |
| Code FW | SEDAN | 68G |
| Code FW | SEDAN | 84G |
| Code FW | SEDAN | 77G |
| Code FW | SEDAN | 79G |
| Code FW | SEDAN | 81G |
| Code FW | SEDAN | 96G |
| Code FW | SEDAN | 99G |
| Code FW | SEDAN | 100G |
| Code FW | SEDAN | 135G |
| Code FW | SEDAN | 106G |
| Code FW | SEDAN | 140G |
| Code FW | SEDAN | 137G |
| Code FW | SEDAN | 138G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 151G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 152G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 97G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 110G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 98G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 109G |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 109G |
| E18/1 | Luggage compartment lamp | 79L |
| E18/4 | Right luggage compartment lamp | 105L |
| E18/5 | Left luggage compartment lamp | 79L |
| E19/1 | Left license plate lamp | 30L |
| E19/2 | Right license plate lamp | 31L |
| E20/2 | Front center console cup holder illumination | 76L |
| E21 | Center stop lamp | 129L |
| E3 | Left rear lamp unit | 69L |
| E3 | Left rear lamp unit | 72L |
| E3 | Left rear lamp unit | 73L |
| E3 | Left rear lamp unit | 68L |
| E3 | Left rear lamp unit | 67L |
| E3 | Left rear lamp unit | 68L |
| E3 | Left rear lamp unit | 82L |
| E3 | Left rear lamp unit | 81L |
| E3 | Left rear lamp unit | 101L |
| E3 | Left rear lamp unit | 100L |
| E3 | Left rear lamp unit | 73L |
| E3/1 | Inner left rear lamp unit | 46L |
| E3/1 | Inner left rear lamp unit | 45L |
| E3/1 | Inner left rear lamp unit | 84L |
| E3/1 | Inner left rear lamp unit | 84L |
| E3/1 | Inner left rear lamp unit | 80L |
| E4 | Right rear lamp unit | 77L |
| E4 | Right rear lamp unit | 78L |
| E4 | Right rear lamp unit | 97L |
| E4 | Right rear lamp unit | 96L |
| E4 | Right rear lamp unit | 99L |
| E4 | Right rear lamp unit | 102L |
| E4 | Right rear lamp unit | 107L |
| E4 | Right rear lamp unit | 106L |
| E4 | Right rear lamp unit | 103L |
| E4 | Right rear lamp unit | 104L |
| E4 | Right rear lamp unit | 107L |
| E4/1 | Inner right rear lamp unit | 44L |
| E4/1 | Inner right rear lamp unit | 43L |
| E4/1 | Inner right rear lamp unit | 98L |
| E4/1 | Inner right rear lamp unit | 83L |
| E40/2 | Left trunk lid/1iftgate ambient lamp and warning lamp | 27 L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 28L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 70L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 75L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 71L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 74L |
| G1/3 | 48 V on-board electrical system battery | 42L |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5 | Rear fuse and relay module | 9L |
| K40/5 | Rear fuse and relay module | 110L |
| K40/5 | Rear fuse and relay module | 108L |
| K40/5 | Rear fuse and relay module | 112L |
| K40/5 | Rear fuse and relay module | 111L |
| M14/10 | Tank cap central locking actuator | 94L |
| 1114/10 | Tank cap central locking actuator | 95L |
| Ml4/31 | Trunk lid/liftgate locking element | 25L |
| Ml4/31 | Trunk lid/liftgate locking element | 26L |
| M14/31 | Trunk lid/liftgate locking element | 24L |
| M14/31 | Trunk lid/liftgate locking element | 23L |
| M14/7 | Trunk lid/1 iftgate central locking motor | 48L |
| M14/7 | Trunk lid/1 iftgate central locking motor | 55L |
| M24 | Rear window roller sun blind motor | 129L |
| M24 | Rear window roller sun blind motor | 146L |
| M24 | Rear window roller sun blind motor | 145L |
| M24 | Rear window roller sun blind motor | 148L |
| M24 | Rear window roller sun blind motor | 169L |
| M24 | Rear window roller sun blind motor | 170L |
| M35/2 | Rear camera cover motor | 50L |
| M35/2 | Rear camera cover motor | 51L |
| M35/2 | Rear camera cover motor | 132L |
| M35/2 | Rear camera cover motor | 123L |
| M50/1 | Left cargo area cover actuator motor | 128L |
| M50/1 | Left cargo area cover actuator motor | 146L |
| M50/1 | Left cargo area cover actuator motor | 144L |
| M50/1 | Left cargo area cover actuator motor | 147L |
| M50/1 | Left cargo area cover actuator motor | 171L |
| M50/1 | Left cargo area cover actuator motor | 168L |
| M50/2 | Right cargo area cover actuator motor | 156L |
| M50/2 | Right cargo area cover actuator motor | 157L |
| M50/2 | Right cargo area cover actuator motor | 158L |
| M50/2 | Right cargo area cover actuator motor | 158L |
| M50/2 | Right cargo area cover actuator motor | 159L |
| M50/2 | Right cargo area cover actuator motor | 172L |
| M50/2 | Right cargo area cover actuator motor | 172L |
| M53/12 | Left rear passenger compartment head restraint release actuator | 125L |
| M53/14 | Right rear passenger compartment head restraint release actuator | 124L |
| M6/4 | Tailgate wiper motor | 52L |
| M6/4 | Tailgate wiper motor | 53L |
| N10/6 | Front SAM control unit | 155L |

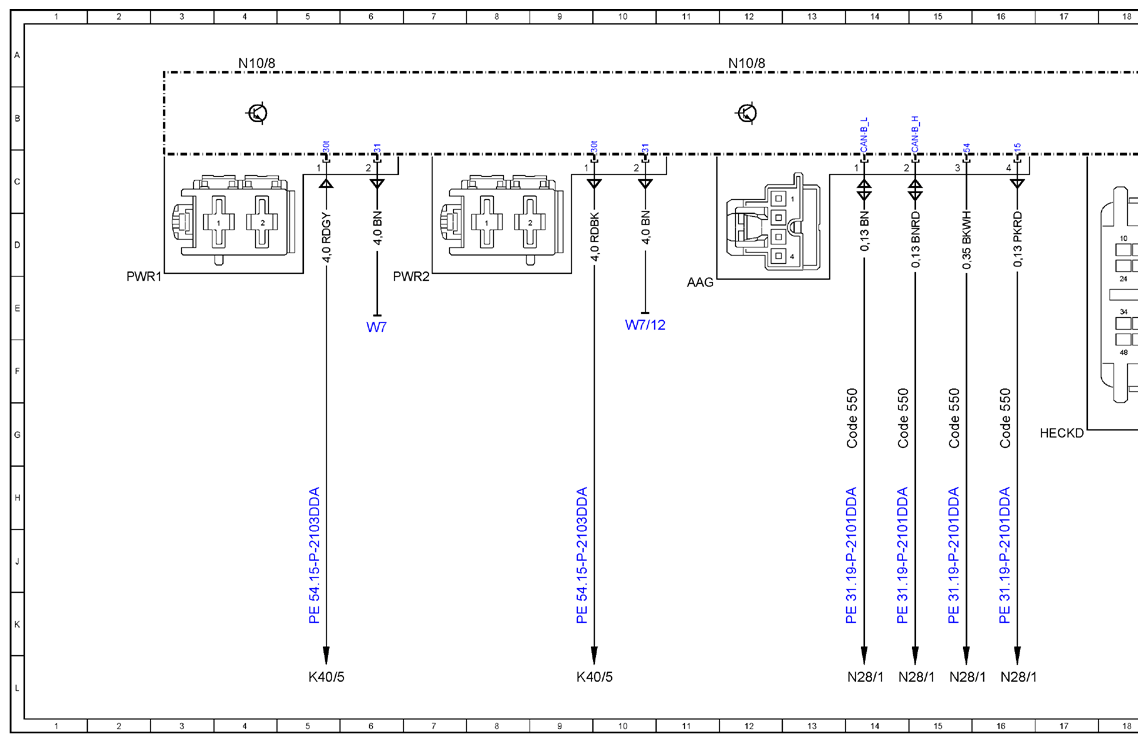

| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |

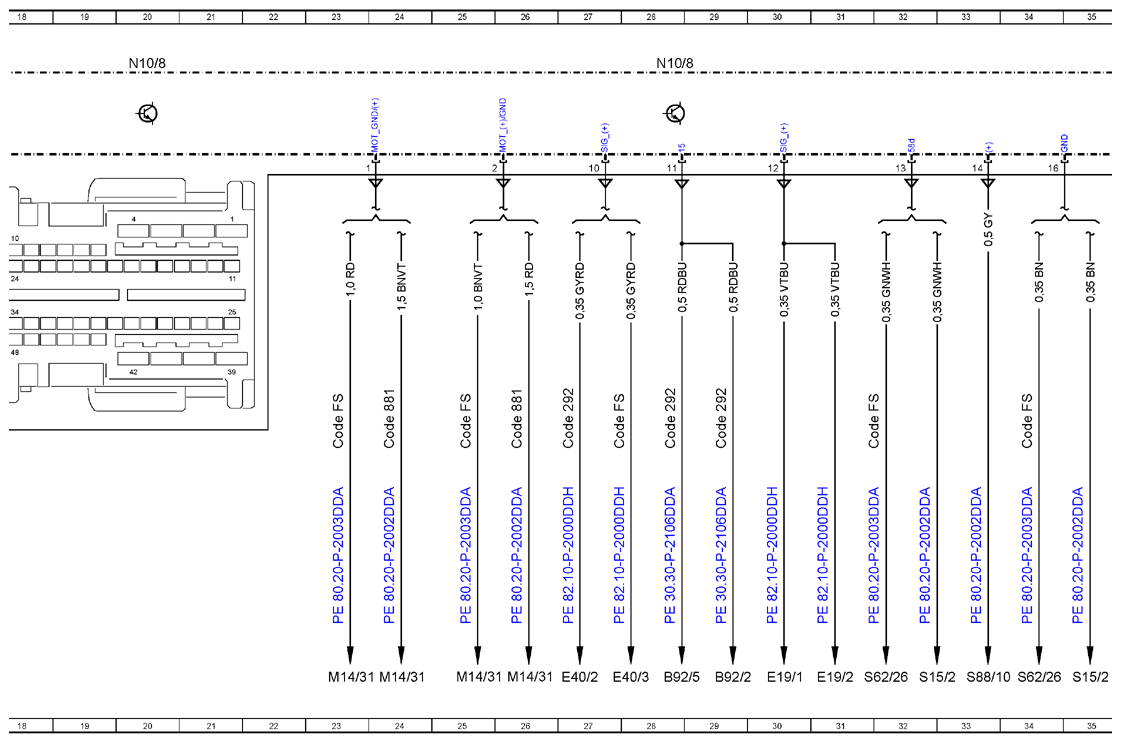

| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |

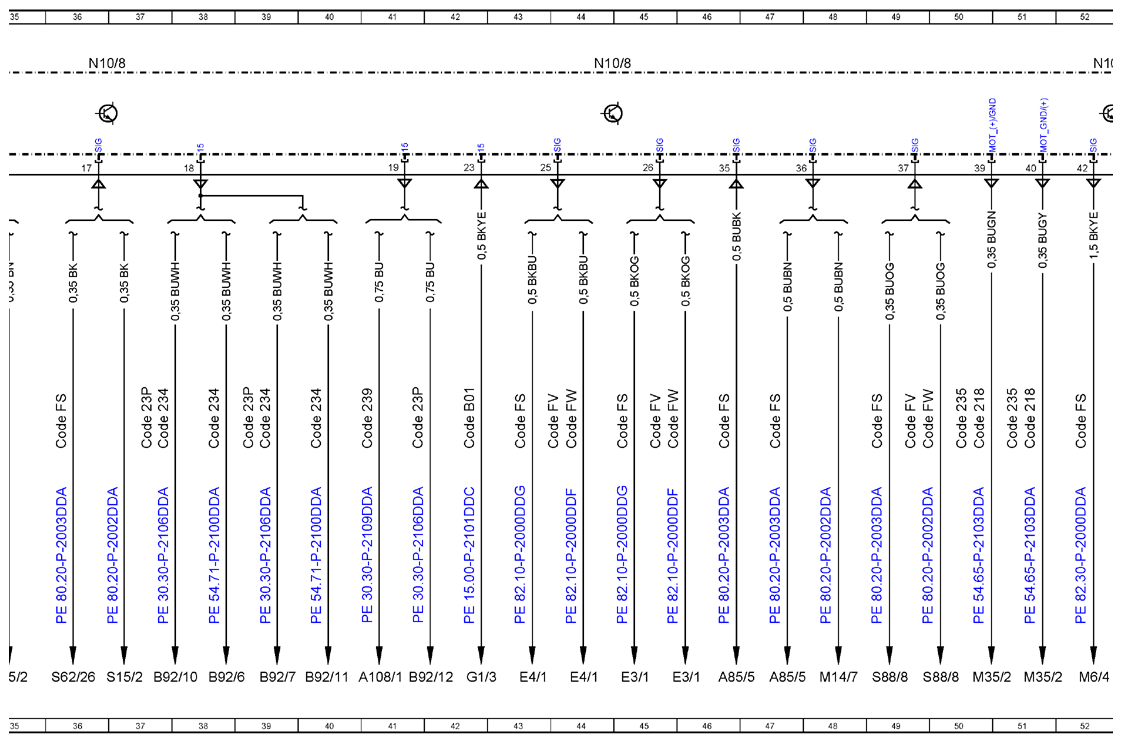

| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 180A |

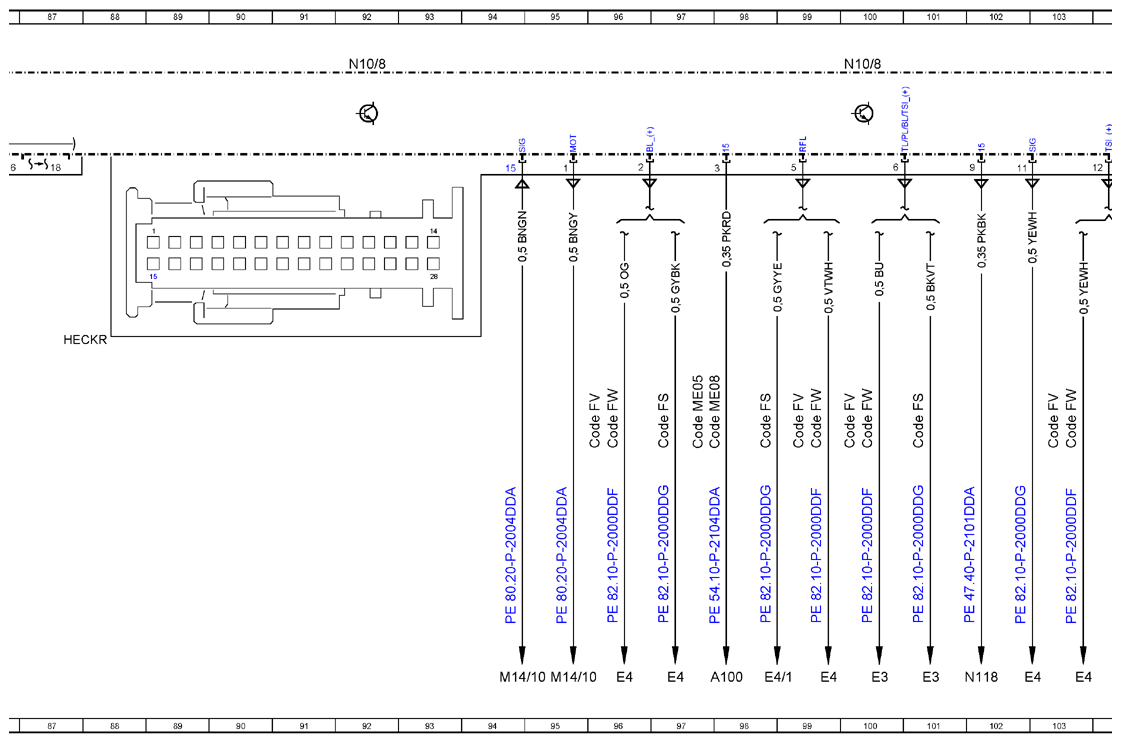

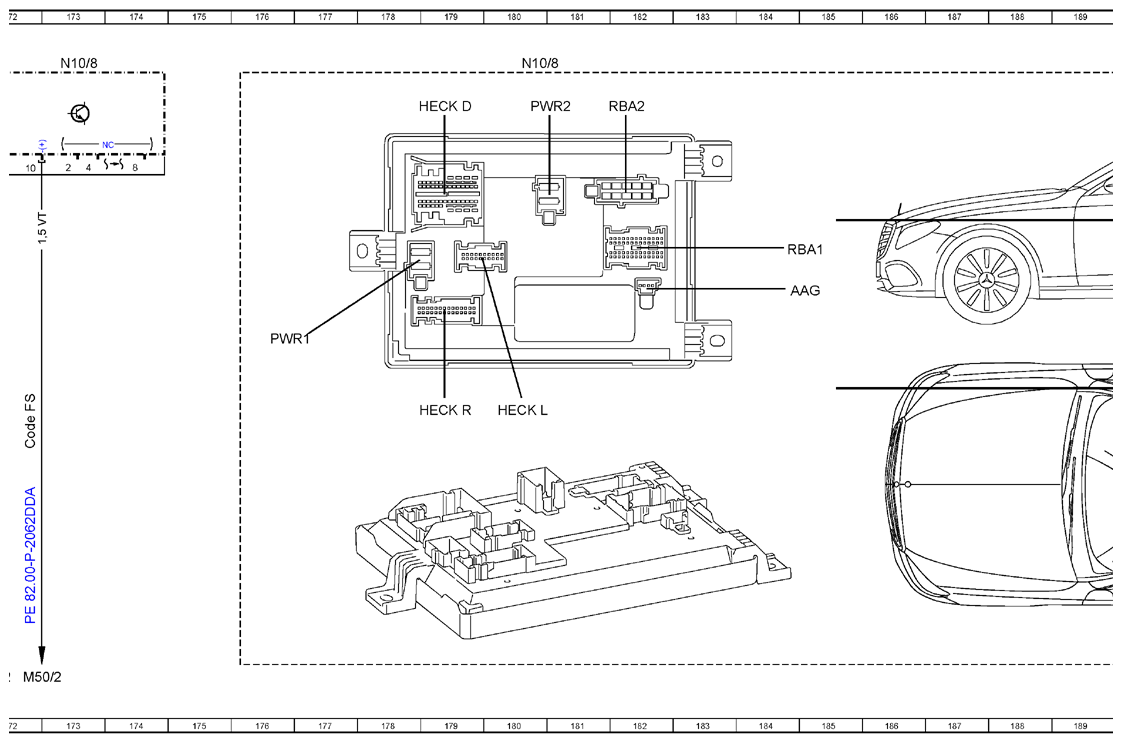

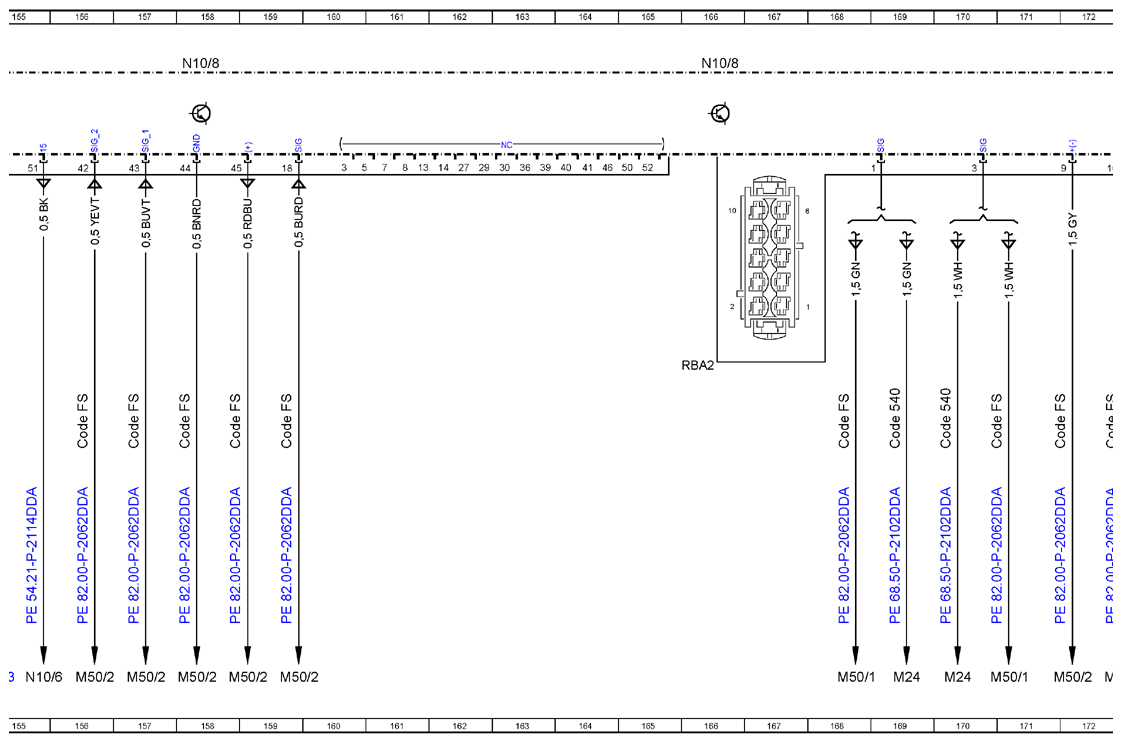

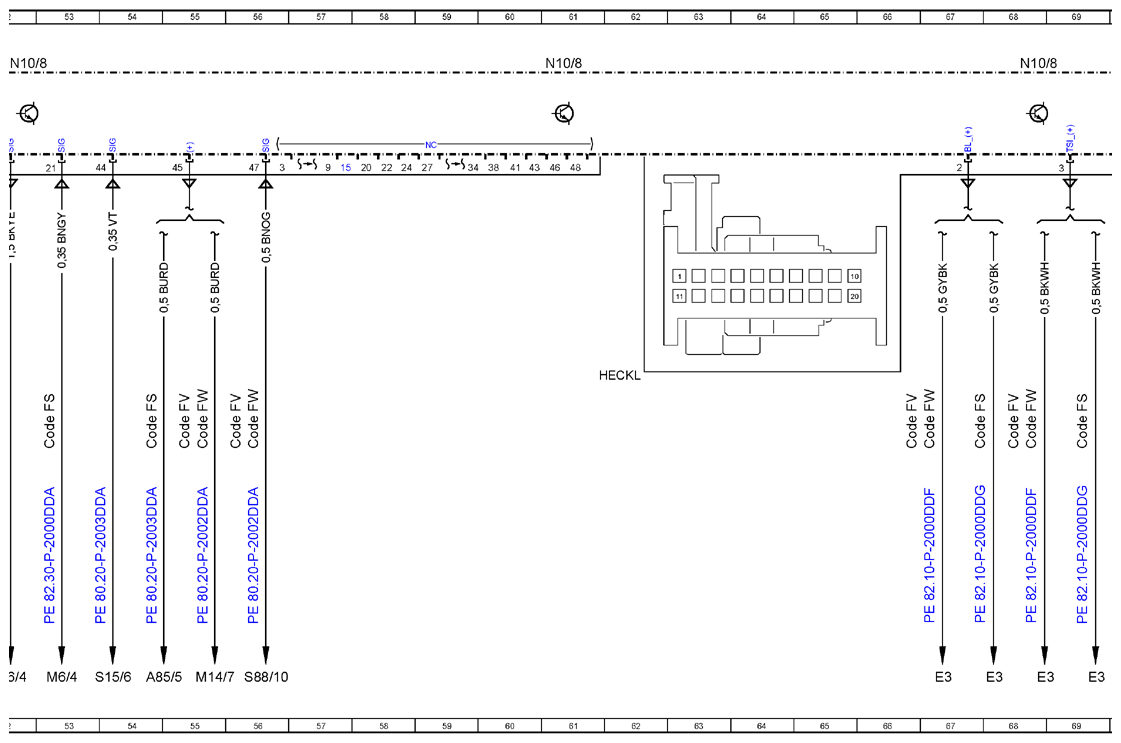

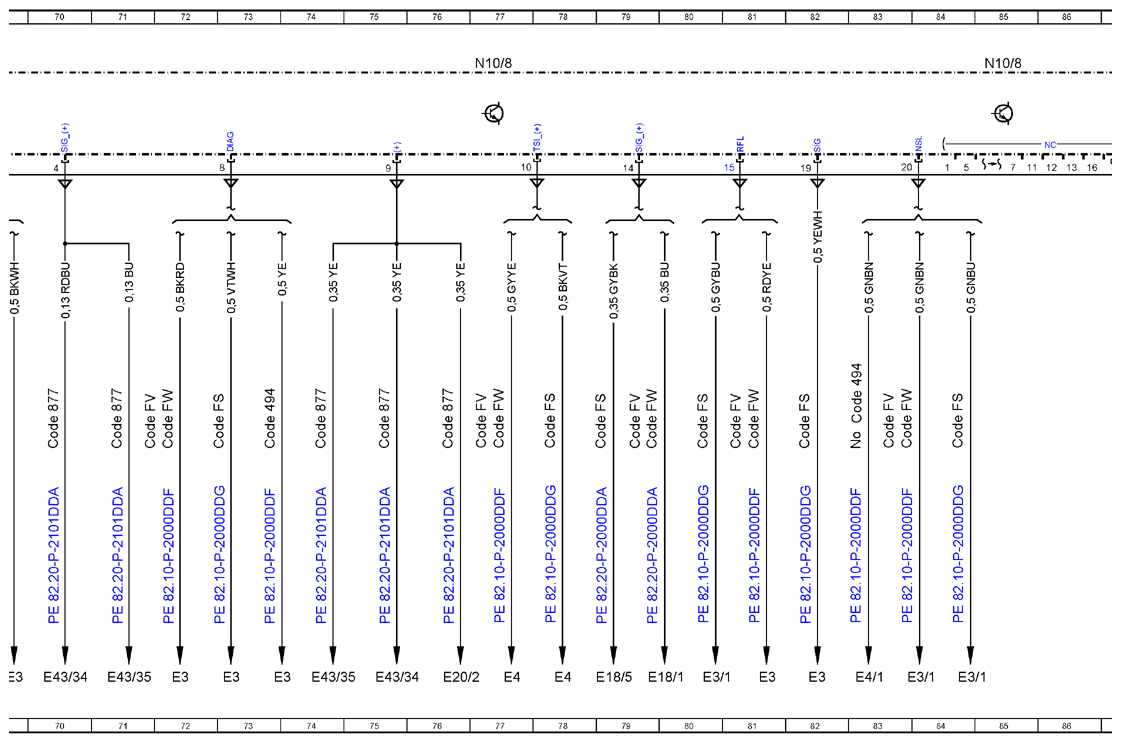

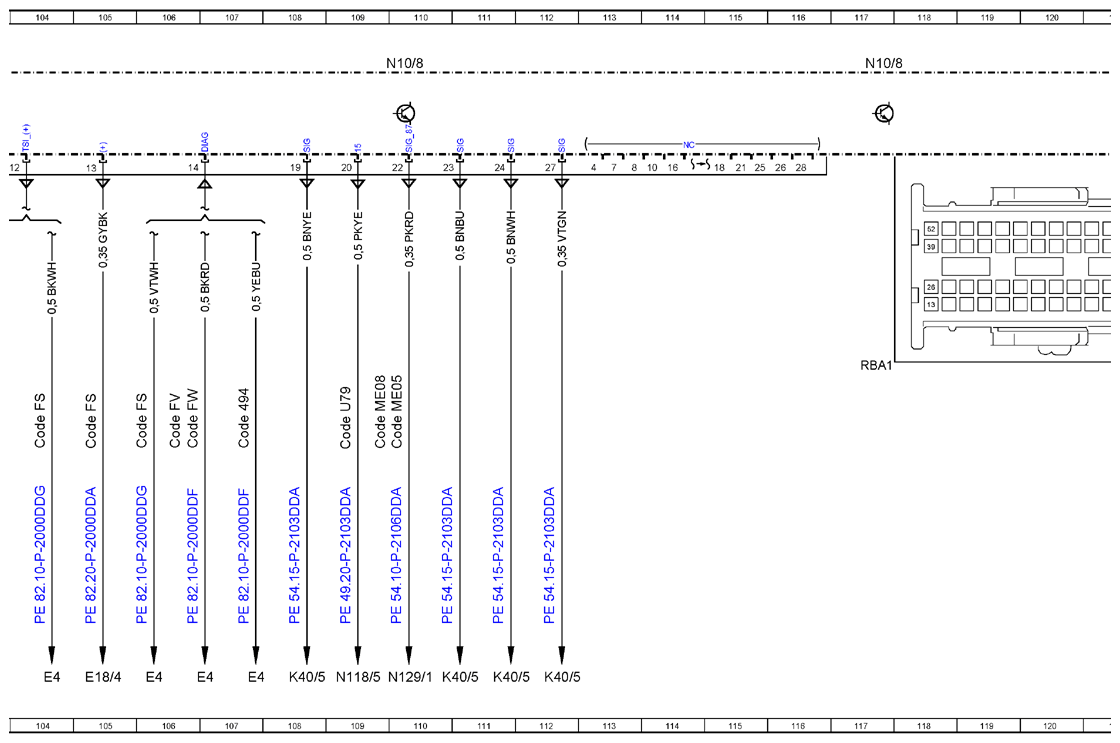

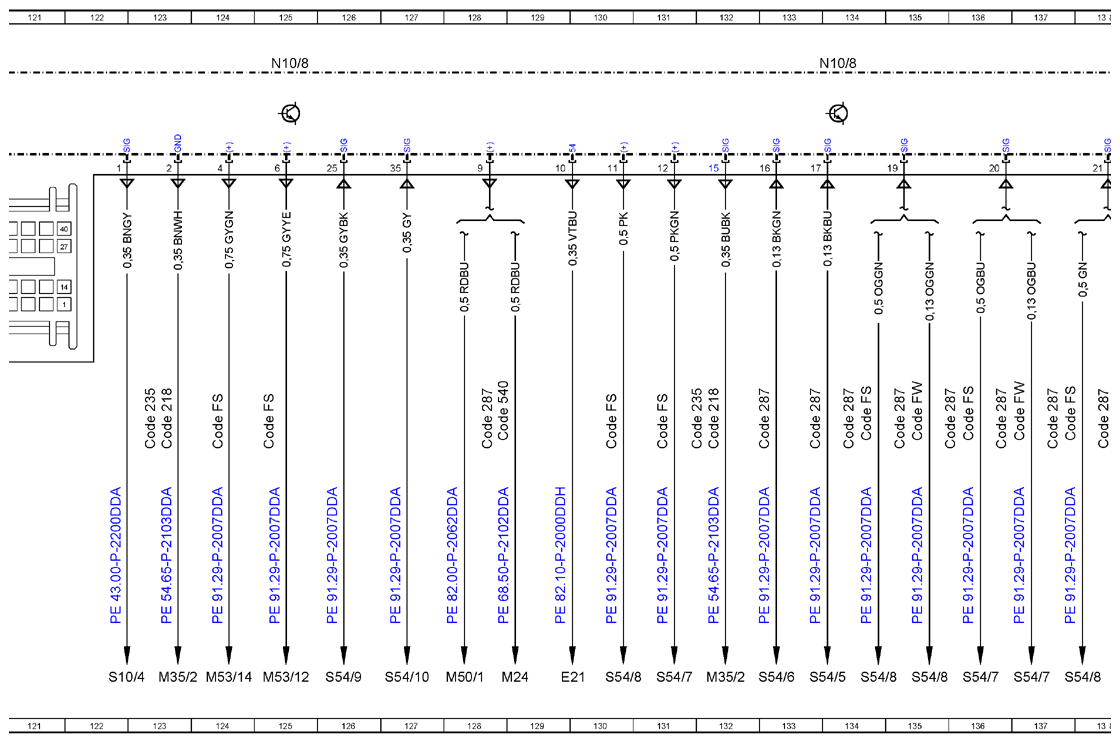

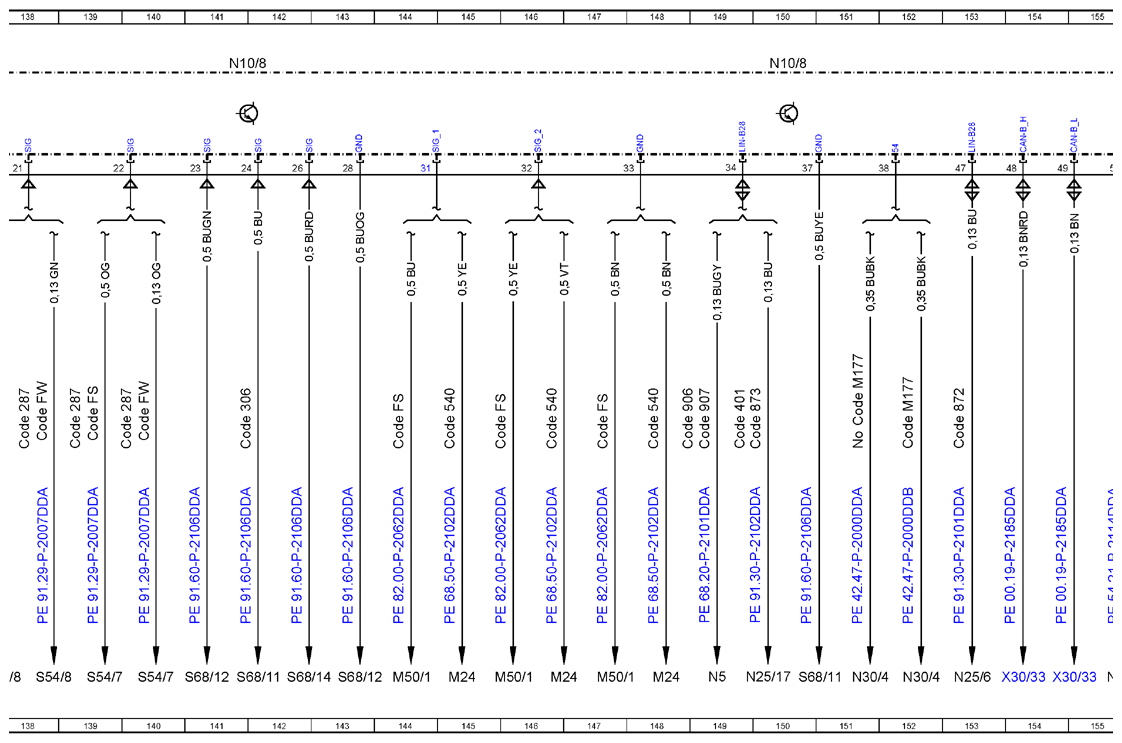

| N10/8 | Rear SAM control unit | 195A |
| N10/8 | Rear SAM control unit | 61A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | Ilk |
| N10/8 | Rear SAM control unit | 85A |
| N10/8 | Rear SAM control unit | 92A |
| N10/8 | Rear SAM control unit | 100A |
| N10/8 | Rear SAM control unit | 110A |
| N10/8 | Rear SAM control unit | 117A |
| N10/8 | Rear SAM control unit | 125A |
| N10/8 | Rear SAM control unit | 134A |
| N10/8 | Rear SAM control unit | 141A |
| N10/8 | Rear SAM control unit | 150A |
| N10/8 | Rear SAM control unit | 158A |
| N10/8 | Rear SAM control unit | 166A |
| N10/8 | Rear SAM control unit | 173A |
| N118 | Fuel pump control unit | 102L |
| N118/5 | AdBlue® control unit | 109L |
| N129/1 | Power electronics control unit | 110L |
| N25/17 | Front seat heater/seat ventilation control unit | 150L |
| N25/6 | Rear seat heaters control unit | 153L |
| N28/1 | Trailer recognition control unit | 15L |
| N28/1 | Trailer recognition control unit | 14L |
| N28/1 | Trailer recognition control unit | 14L |
| N28/1 | Trailer recognition control unit | 16L |
| N30/4 | Electronic Stability Program control unit | 151L |
| N30/4 | Electronic Stability Program control unit | 152L |
| N5 | Armrest heater control unit | 149L |
| S10/4 | Right rear brake wear sensor | 122L |
| S15/2 | Liftgate inside door handle | 35L |
| S15/2 | Liftgate inside door handle | 37L |
| S15/2 | Liftgate inside door handle | 32L |
| S15/6 | 3rd seat row liftgate unlocking switch | 54L |
| S54/10 | Right luggage compartment rear backrest release button | 127L |
| S54/5 | Left rear backrest inclination switch | 133L |
| S54/6 | Right rear backrest inclination switch | 133L |
| S54/7 | Left rear backrest lock switch | 131L |
| S54/7 | Left rear backrest lock switch | 140L |
| S54/7 | Left rear backrest lock switch | 139L |
| S54/7 | Left rear backrest lock switch | 137L |
| S54/7 | Left rear backrest lock switch | 136L |
| S54/8 | Right rear backrest lock switch | 135L |
| S54/8 | Right rear backrest lock switch | 130L |
| S54/8 | Right rear backrest lock switch | 134L |
| S54/8 | Right rear backrest lock switch | 137L |
| S54/8 | Right rear backrest lock switch | 138L |
| S54/9 | Left luggage compartment rear backrest release button | 126L |
| S62/26 | Trunk lid/liftgate control button | 34L |
| S62/26 | Trunk lid/liftgate control button | 36L |
| S62/26 | Trunk lid/liftgate control button | 32L |
| S68/11 | Left rear seat belt buckle switch | 150L |
| S68/11 | Left rear seat belt buckle switch | 141L |
| S68/12 | Right rear seat belt buckle switch | 141L |
| S68/12 | Right rear seat belt buckle switch | 143L |
| S68/14 | Center rear seat belt buckle switch | 142L |
| S88/10 | Trunk lid emergency opening switch | 33L |
| S88/10 | Trunk lid emergency opening switch | 56L |
| S88/8 | Trunk lid/liftgate external operation switch | 50L |
| S88/8 | Trunk lid/liftgate external operation switch | 49L |
| W7 | Right wheel house trunk ground point | 6E |
| W7/12 | Right floor AdBlue® ground point | 10E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 154L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 154L |
