Wiring Diagram For The Power Electronics Control Unit - PE54.10-P-2106-97DDA
Model 213 as of model year 2021 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Control unit N129/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A100 | High-voltage battery module | 39L |
| A100 | High-voltage battery module | 57L |
| A79/1 | Electric machine | 51L |
| A9/6 | 32L | |
| A9/6 | 71L | |
| CAN L | Hybrid CAN | 17K |
| Code L | LEFT-HAND DRIVE | 2E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 18F |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 18G |
| Code R | RIGHT-HAND DRIVE | 2E |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3f13 | Fuse 13 | 3K |
| F34/6f752 | Electrical fuse 752 | 60E |
| F63 | Pyrofuse | 23L |
| K40/5 | Rear fuse and relay module | 13L |
| K40/5f416 | Fuse 416 | 12L |
| L20 | Electric machine rotor position sensor | 44L |
| N10/8 | Rear SAM control unit | 28L |

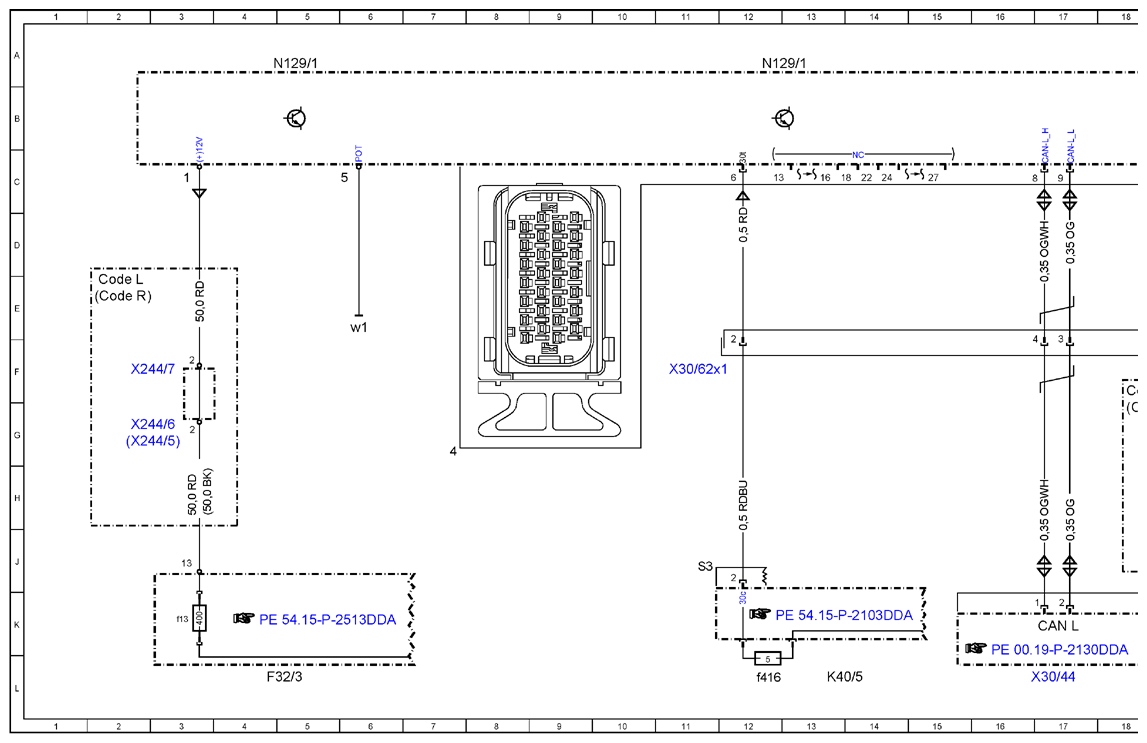

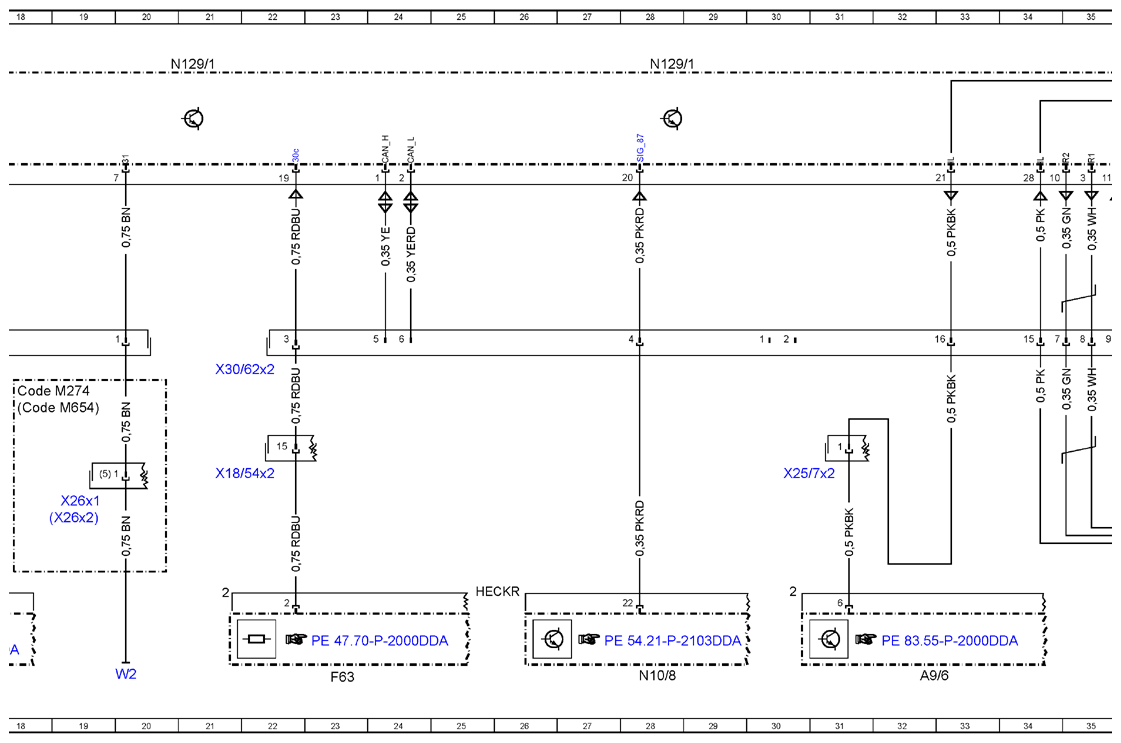

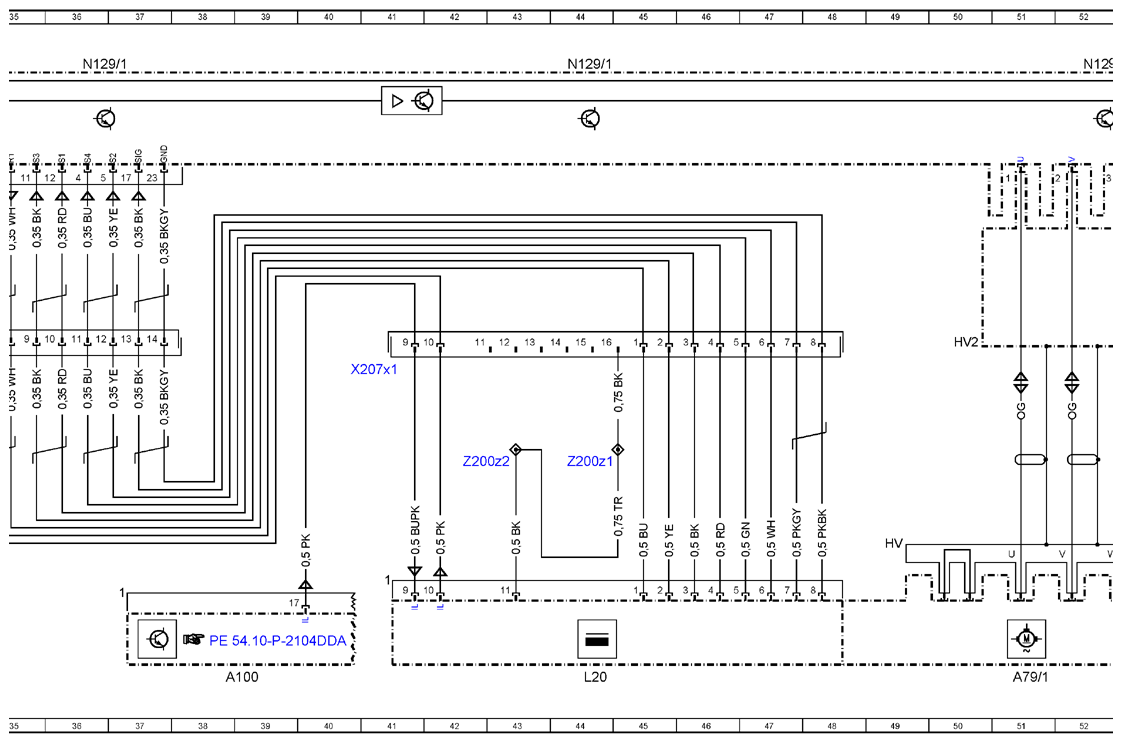

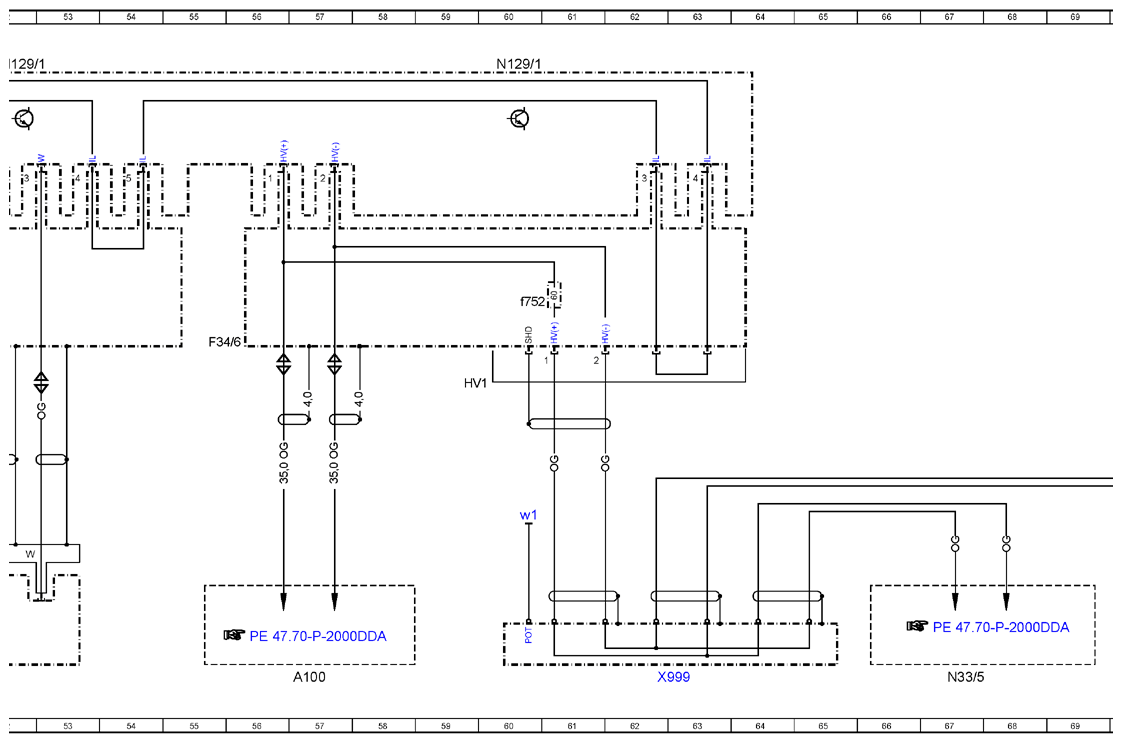

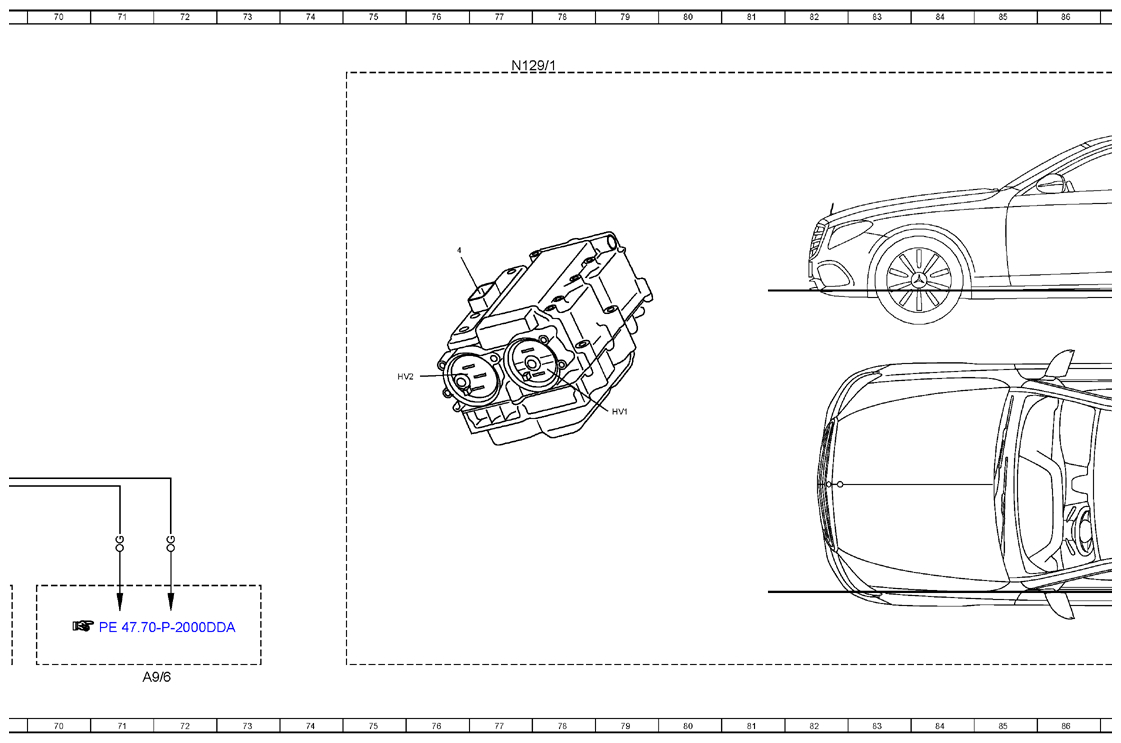

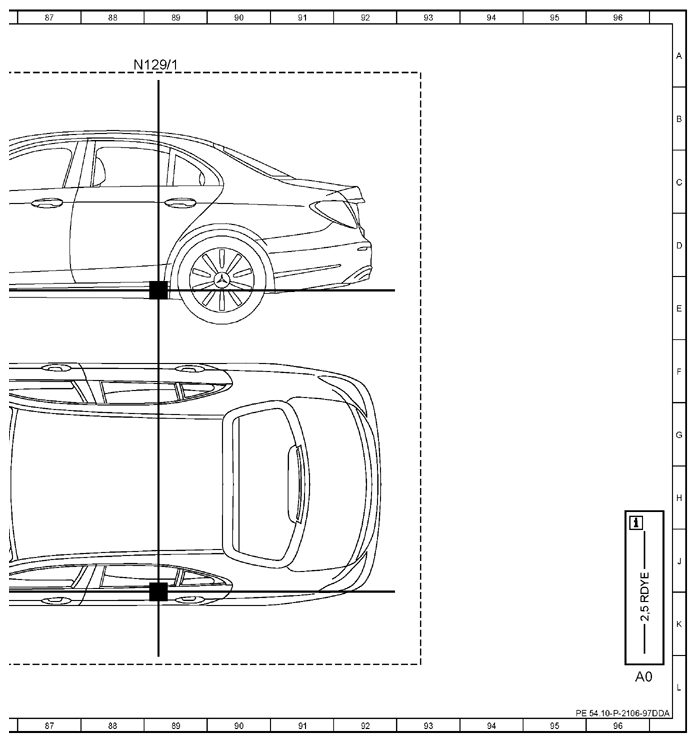

| N129/1 | Power electronics control unit | 21A |
| N129/1 | Power electronics control unit | 12A |
| N129/1 | Power electronics control unit | 5A |
| N129/1 | Power electronics control unit | 28A |
| N129/1 | Power electronics control unit | 36A |
| N129/1 | Power electronics control unit | 44A |
| N129/1 | Power electronics control unit | 52A |
| N129/1 | Power electronics control unit | 60A |
| N129/1 | Power electronics control unit | Ilk |
| N129/1 | Power electronics control unit | 88A |
| N129/1w1 | Power electronics control unit potential equalization ground point | 6E |
| N33/5 | High-voltage PTC heater | 67L |
| W2 | Right front ground point (at lamp unit) | 20L |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 22H |
| X207x1 | Interior wiring harness electric machine electrical connector | 41F |
| X244/5 | Left vehicle-end busbar stud 2 | 2G |
| X244/6 | Right vehicle-end busbar stud 2 | 2G |
| X244/7 | Left engine-end busbar stud 2 | 2F |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 31H |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 19H |
| X26x2 | Engine wiring harness/engine compartment electrical connector | 19H |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 17L |
| X30/62x1 | Power electronics control unit electrical connector 1 | 11F |
| X30/62x2 | Power electronics control unit electrical connector 2 | 22F |
| X999 | High-voltage power distributor | 62L |
| X999w1 | High-voltage power distributor potential equalization ground point | 60H |
| Z200z1 | Sensor ground line connector sleeve | 44G |
| Z200z2 | Sensor ground line connector sleeve | 43G |
