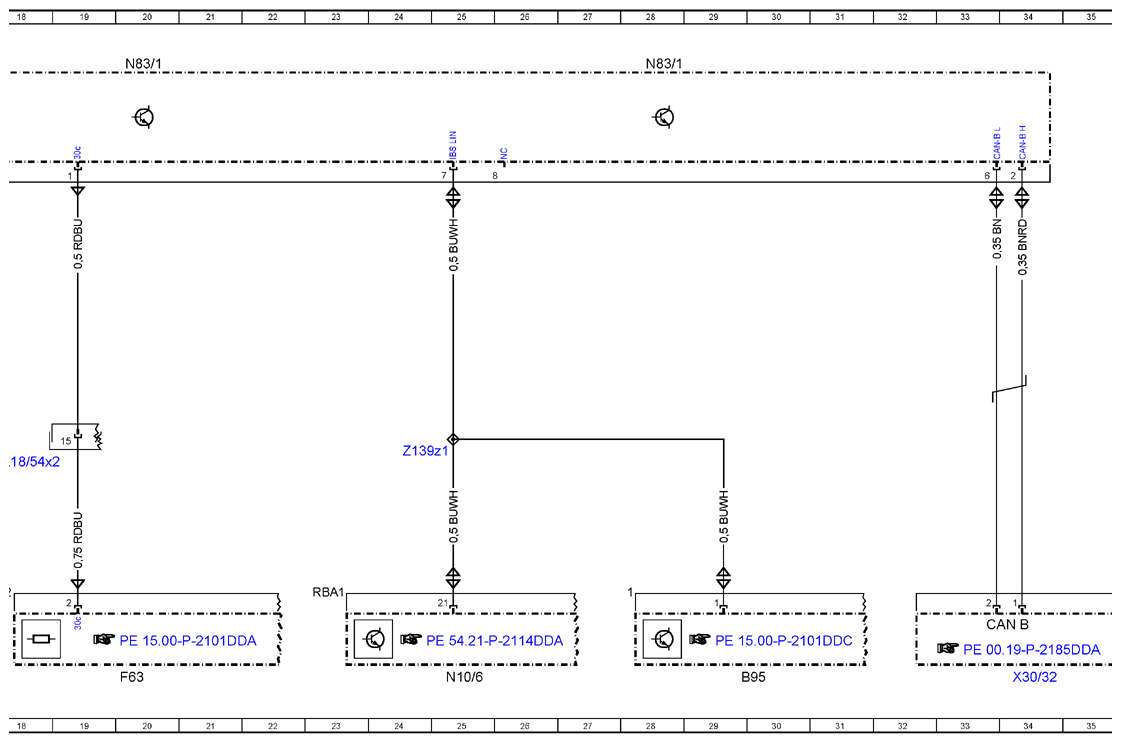

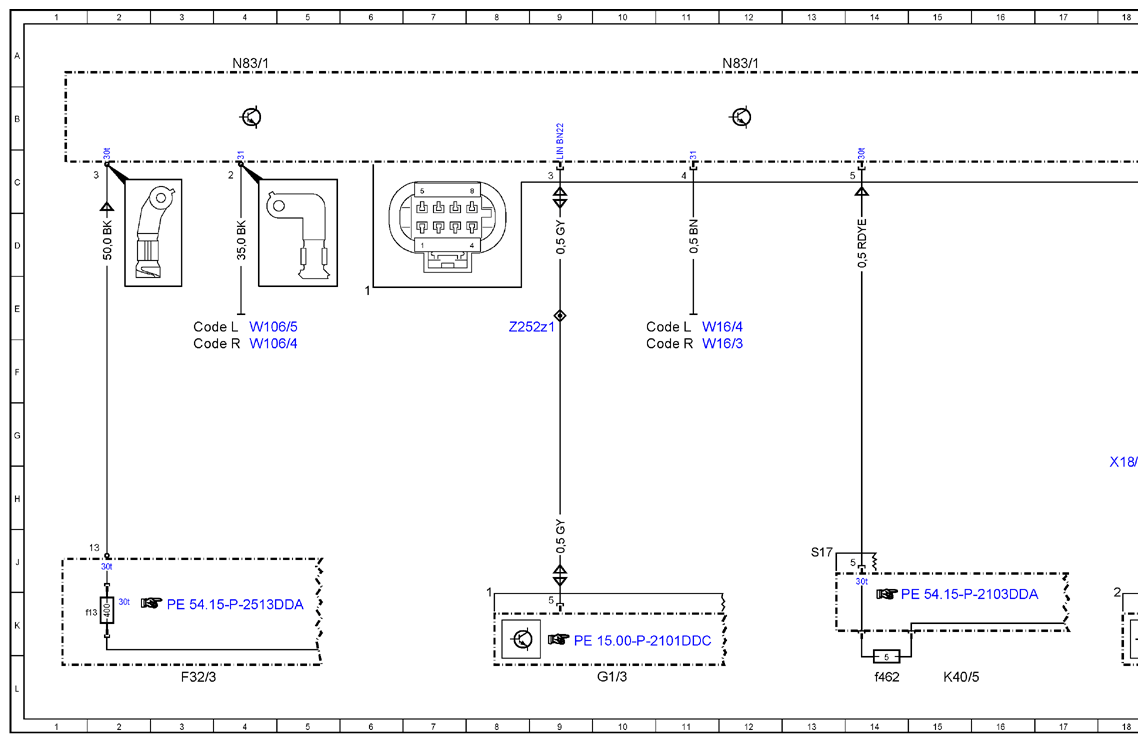

Wiring Diagram For DC/DC Converter Control Unit - PE54.10-P-2105-97DDA
Model 213 as of model year 2021 with code B01 (48V technology) Control unit N83/1
| Code: | Designation: | Position: |
|---|---|---|

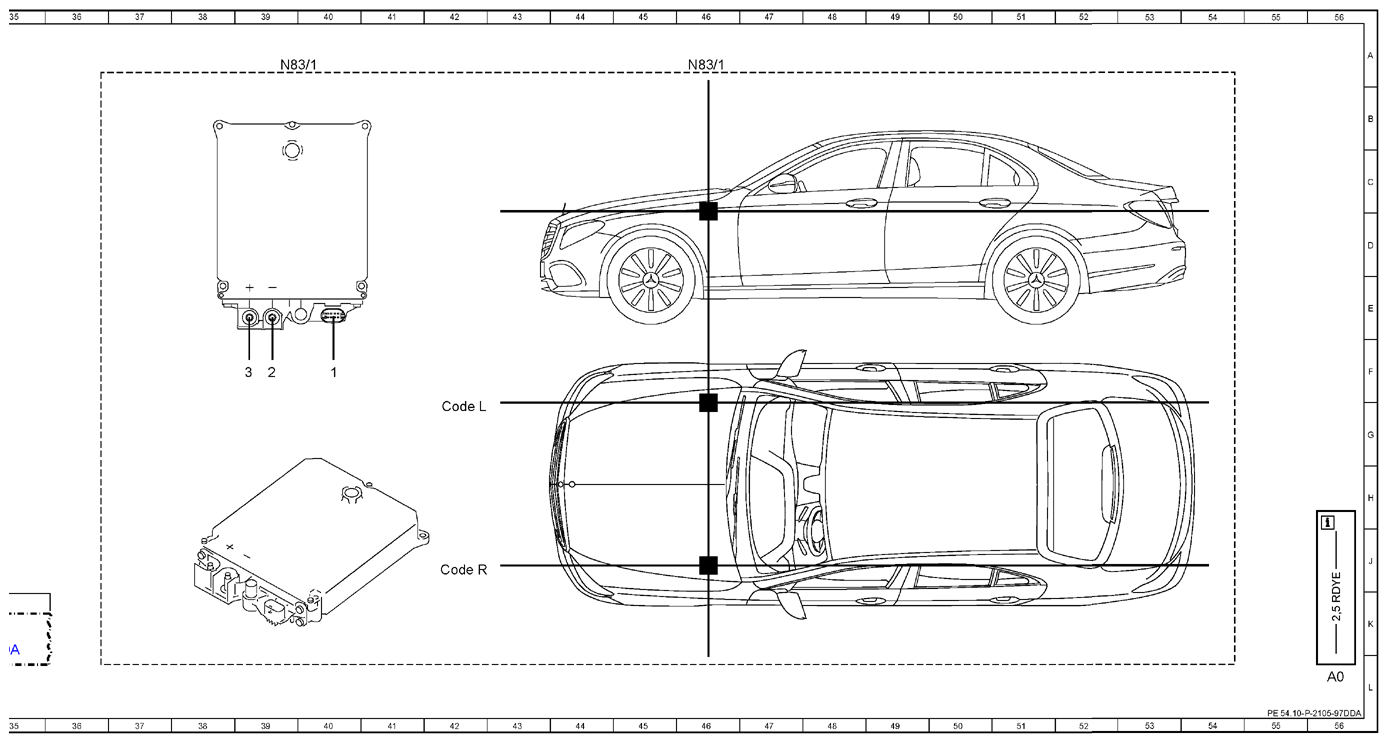

| A0 | Use of wiring diagrams | 56L |
| B95 | Battery sensor | 30L |
| CAN B | Interior CAN | 33K |
| Code L | LEFT-HAND DRIVE | 3E |
| Code L | LEFT-HAND DRIVE | 10E |
| Code L | LEFT-HAND DRIVE | 42G |
| Code R | RIGHT-HAND DRIVE | 3F |
| Code R | RIGHT-HAND DRIVE | 10F |
| Code R | RIGHT-HAND DRIVE | 42J |
| F32/3 | Engine compartment prefuse box | 3L |
| F32/3f13 | Fuse 13 | 1K |
| F63 | Pyrofuse | 20L |
| G1/3 | 48 V on-board electrical system battery | 10L |
| K40/5 | Rear fuse and relay module | 15L |
| K40/5f462 | Fuse 462 | 14L |
| N10/6 | Front SAM control unit | 25L |
| N83/1 | DC/DC converter control unit | 4A |
| N83/1 | DC/DC converter control unit | 12A |
| N83/1 | DC/DC converter control unit | 20A |
| N83/1 | DC/DC converter control unit | 28A |
| N83/1 | DC/DC converter control unit | 46A |
| N83/1 | DC/DC converter control unit | 39A |
| W106/4 | Left engine compartment circuit 41 ground point | 4F |
| W106/5 | Right engine compartment circuit 41 ground point | 4E |
| W16/3 | Left major assembly compartment ground point | 11F |
| W16/4 | Right major assembly compartment ground point | 11E |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 18H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 34L |
| Z139z1 | Battery sensor connector sleeve | 24G |
| Z252z1 | 48 V on-board electrical system LIN (LIN B22) connector sleeve | 9E |
