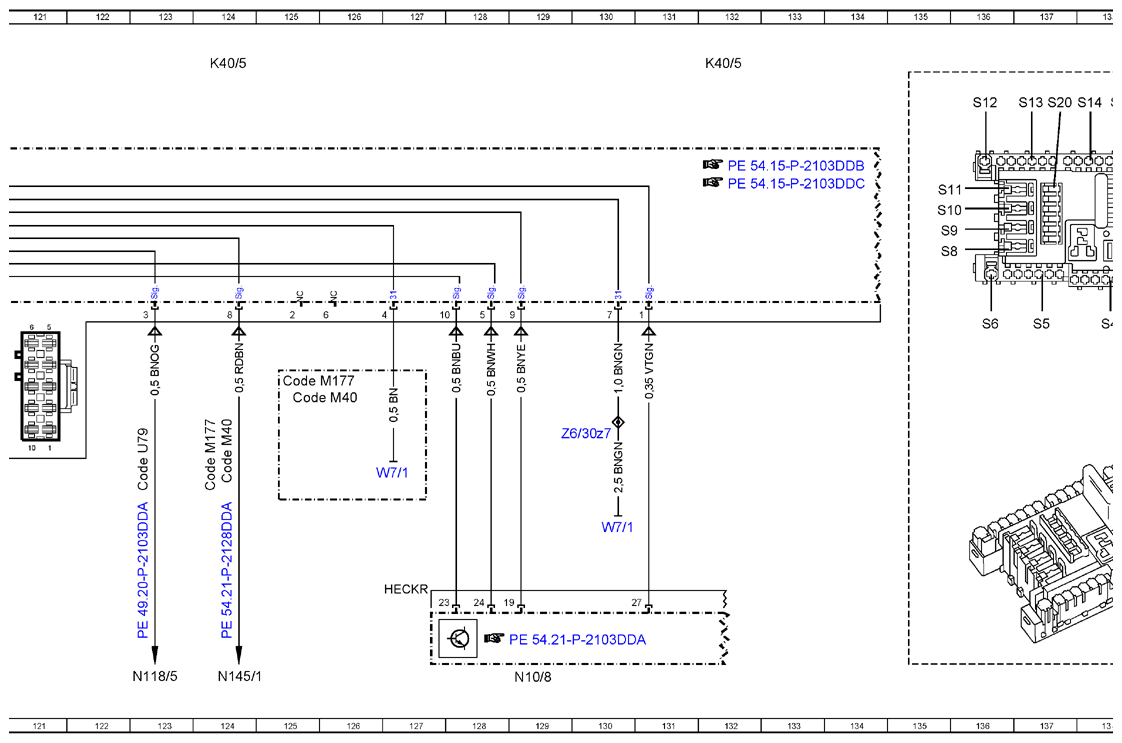

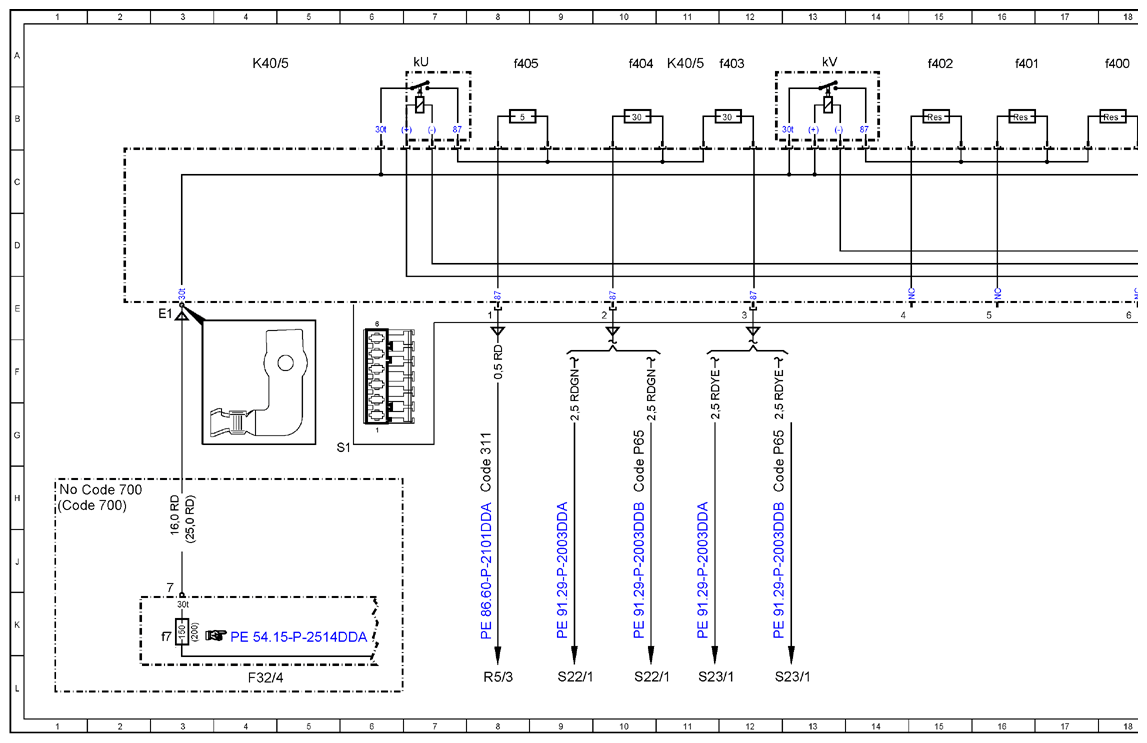

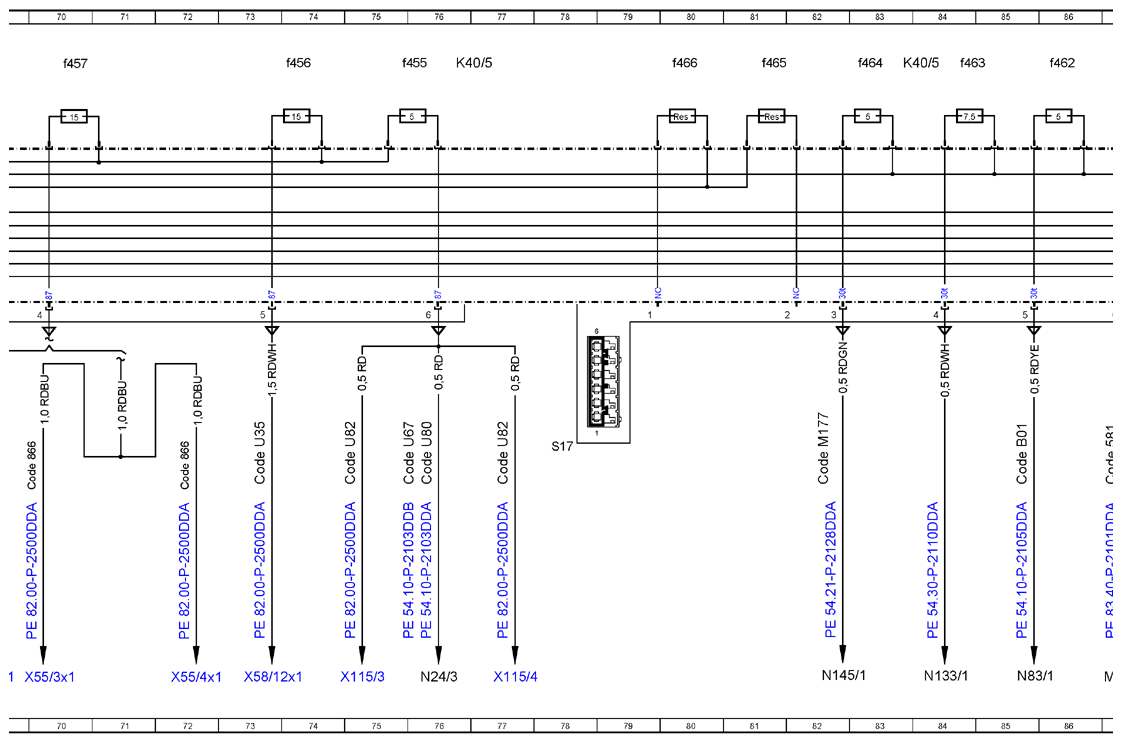

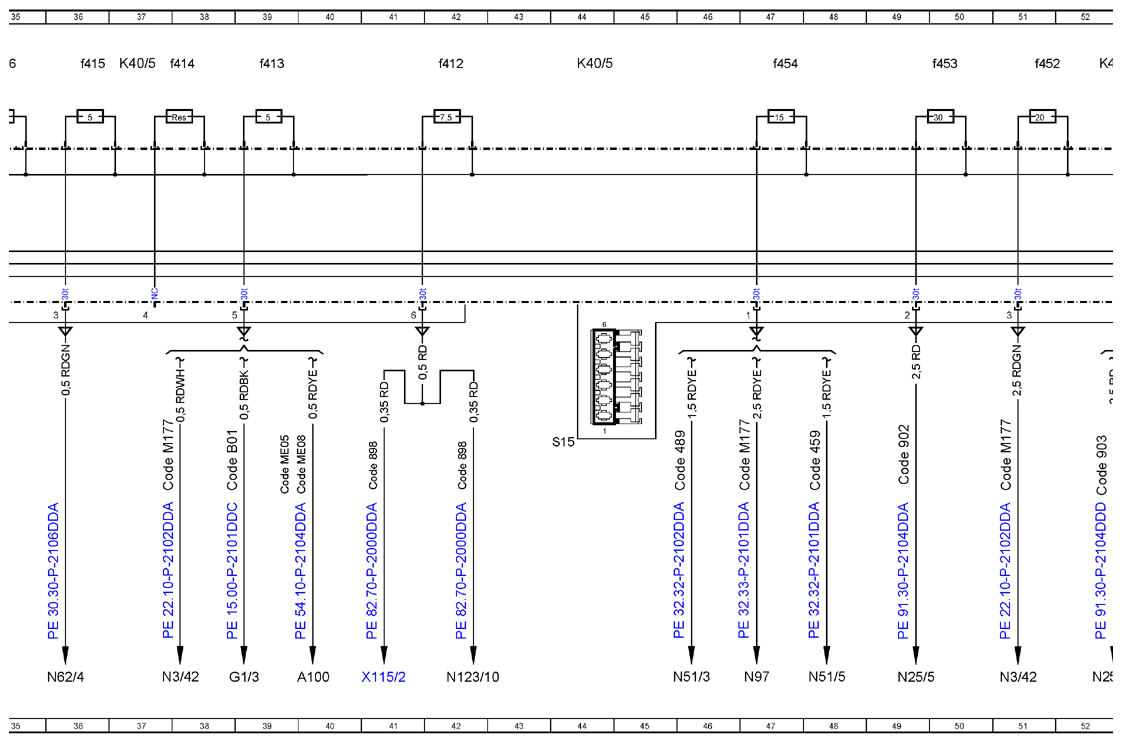

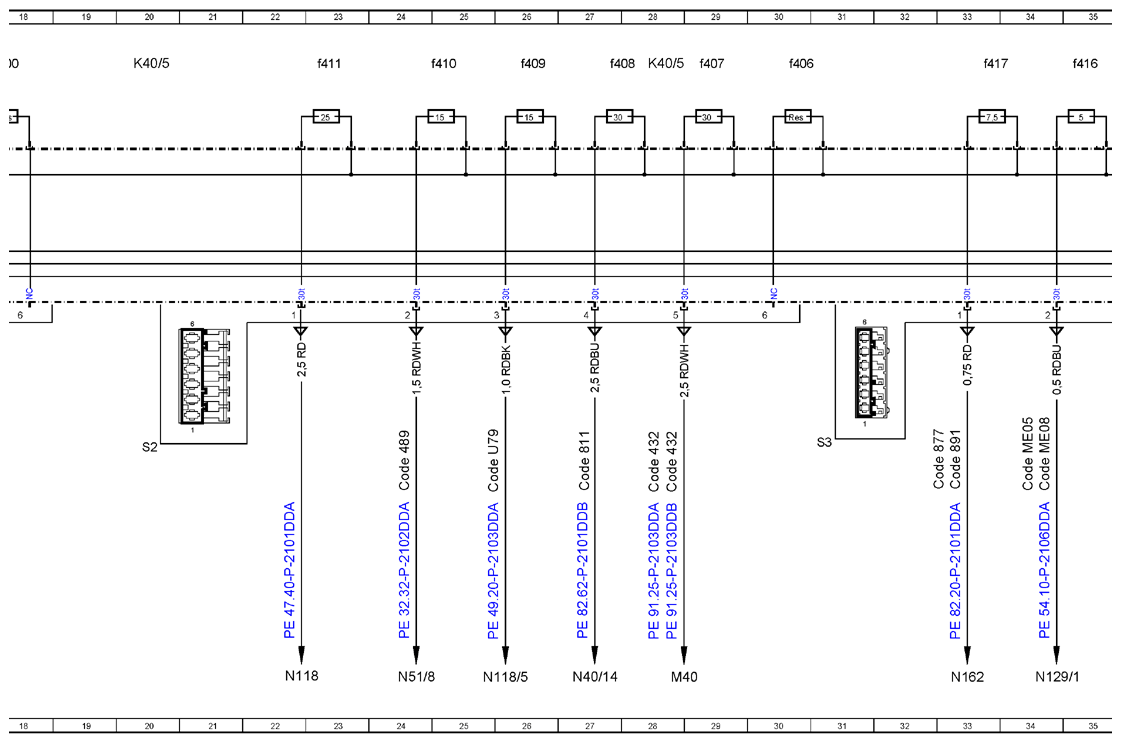

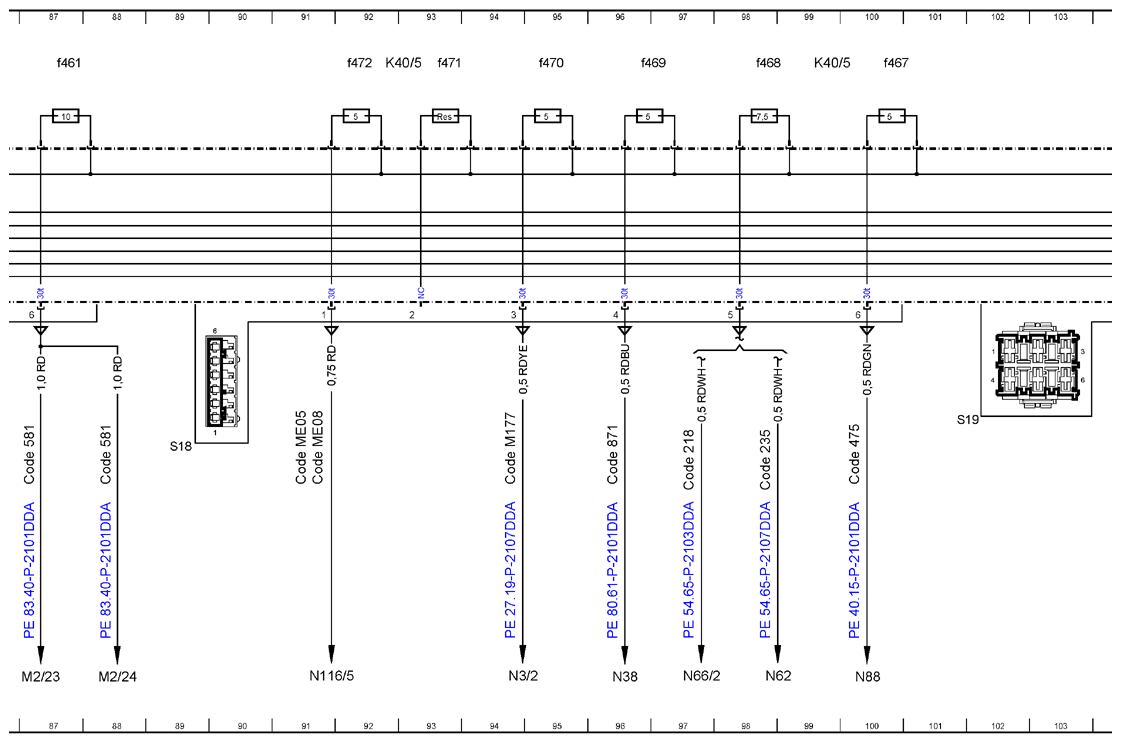

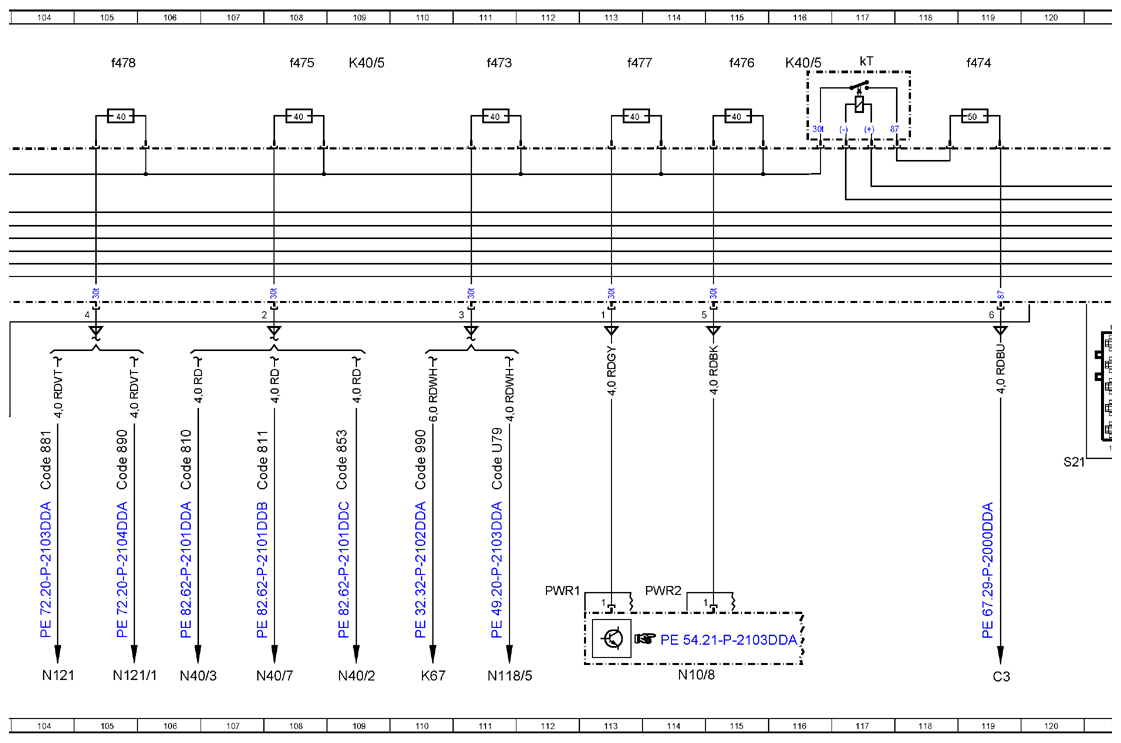

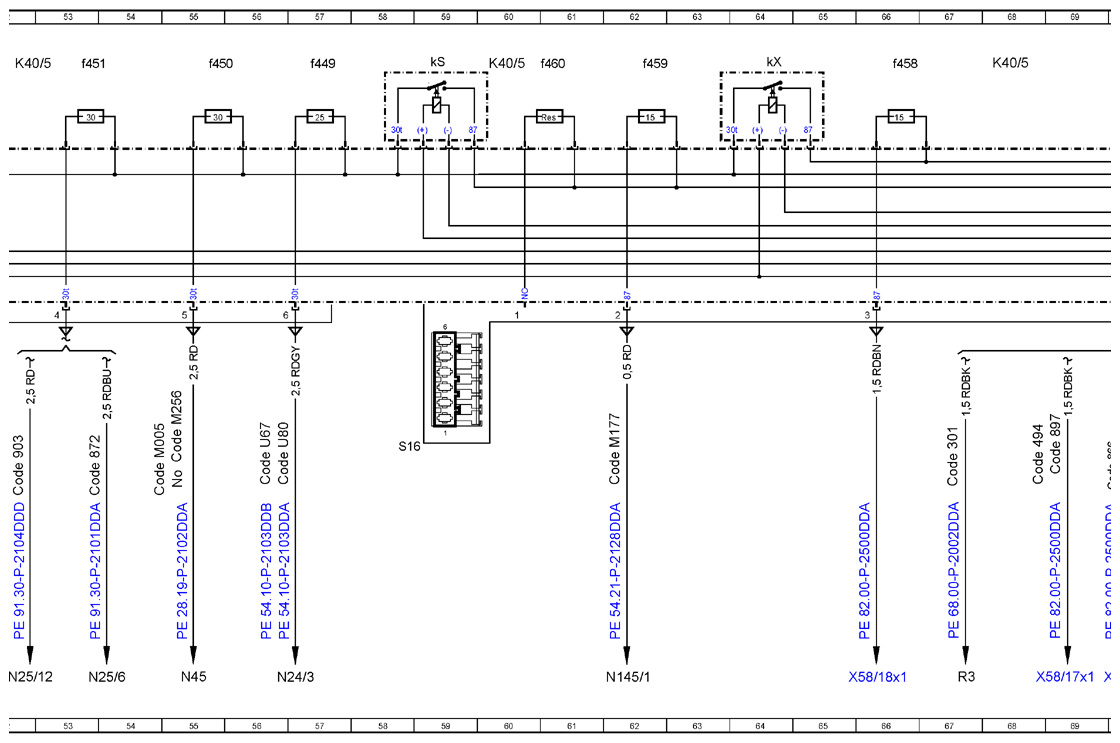

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97DDA
Model 213 as of model year 2021 Fuse and relay box K40/5, connector S1-S3, S15-S19, S21
| Code: | Designation: | Position: |
|---|---|---|

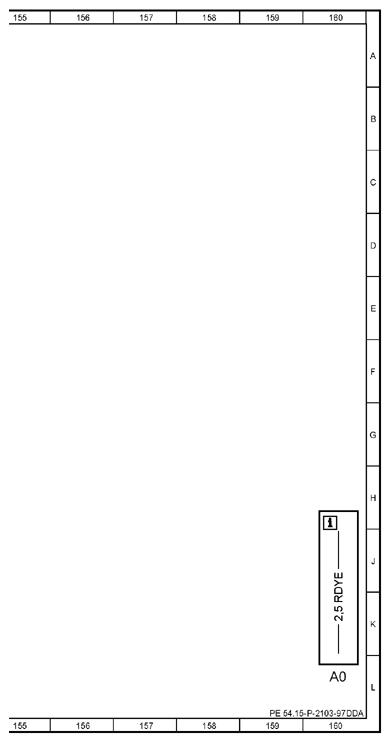

| A0 | Use of wiring diagrams | 160L |
| A100 | High-voltage battery module | 40L |
| C3 | Rear window interference suppression capacitor | 119L |
| Code 218 | Backup camera | 97H |
| Code 235 | Active Park Assist | 98H |
| Code 301 | Smoker's package | 67H |
| Code 311 | Temperature-controlled cup holder | 8H |
| Code 432 | Left and right front dynamic multicontour seat | 28H |
| Code 432 | Left and right front dynamic multicontour seat | 28H |
| Code 459 | Steel suspension with adjustable damping | 48H |
| Code 475 | Tire pressure monitor | 100H |
| Code 489 | AIR BODY CONTROL | 24H |
| Code 489 | AIR BODY CONTROL | 46H |
| Code 494 | USA version | 68H |
| Code 581 | THERMOTRONIC automatic air conditioning | 87H |
| Code 581 | THERMOTRONIC automatic air conditioning | 88H |
| Code 700 | Technical Local Content China | 1H |
| Code 700 | Technical Local Content China | 1H |
| Code 810 | Sound system | 106H |
| Code 811 | Advanced sound system | 27H |
| Code 811 | Advanced sound system | 108H |
| Code 853 | "Midline" sound system | 109H |
| Code 866 | Rear entertainment preinstaIlation | 72H |
| Code 866 | Rear entertainment preinstaIlation | 70H |
| Code 871 | Sensor system for trunk lid opening/closing | 96H |
| Code 872 | Left and right rear seat heaters | 54H |
| Code 877 | Ambiance illumination | 33H |
| Code 881 | Trunk lid control | 104H |
| Code 890 | EASY-PACK liftgate | 105H |
| Code 891 | Premium ambient lighting | 33H |
| Code 897 | Wireless mobile phone charging | 69H |
| Code 898 | Wireless charging in rear passenger compartment | 42H |
| Code 898 | Wireless charging in rear passenger compartment | 41H |
| Code 902 | Seat heater Plus for driver and front passenger | 49H |
| Code 903 | Seat heater Plus for outer rear seats | 52H |
| Code 990 | AMG vehicles | 11 OH |
| Code B01 | 48V technology | 39H |
| Code B01 | 48V technology | 85H |
| Code M005 | 4MATIC | 55H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 38H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 51H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 47H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 62H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 125F |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 82H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 94H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 124H |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 55G |
| Code M40 | DISPLACEMENT 4.0 LITERS | 124H |
| Code M40 | DISPLACEMENT 4.0 LITERS | 125F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 34H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 39H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 91H |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 34H |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 40H |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 91H |
| Code P65 | Seating comfort package | 13H |
| Code P65 | Seating comfort package | 10H |
| Code U35 | 12 V socket in load compartment | 73H |
| Code U67 | 230 V socket in rear passenger compartment | 56H |
| Code U67 | 230 V socket in rear passenger compartment | 76H |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 26H |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 111H |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 123H |
| Code U80 | 115 V socket | 57H |
| Code U80 | 115 V socket | 76H |
| Code U82 | USB port in rear passenger compartment | 75H |
| Code U82 | USB port in rear passenger compartment | 77H |
| F32/4 | Vehicle interior prefuse box | 4L |
| F32/4f7 | Fuse 7 | 3K |
| G1/3 | 48 V on-board electrical system battery | 39L |

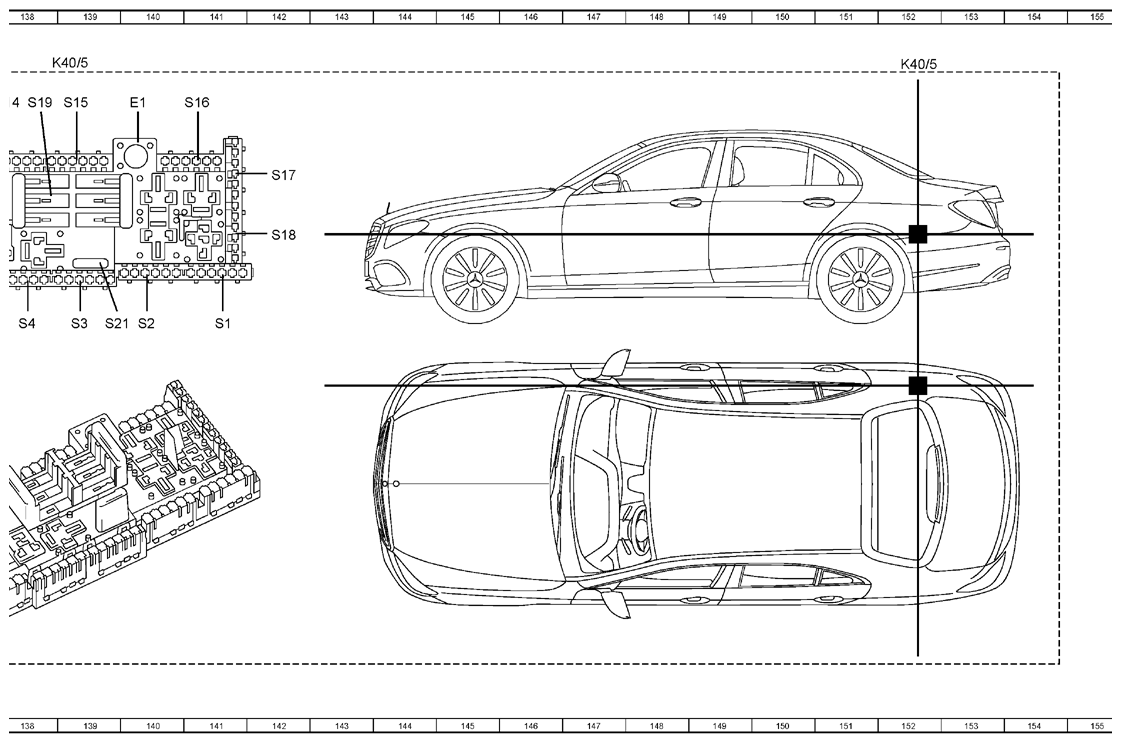

| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 11A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 37A |
| K40/5 | Rear fuse and relay module | 44A |
| K40/5 | Rear fuse and relay module | 52A |
| K40/5 | Rear fuse and relay module | 60A |
| K40/5 | Rear fuse and relay module | 68A |
| K40/5 | Rear fuse and relay module | 76A |
| K40/5 | Rear fuse and relay module | 83A |
| K40/5 | Rear fuse and relay module | 92A |
| K40/5 | Rear fuse and relay module | 99A |
| K40/5 | Rear fuse and relay module | 109A |
| K40/5 | Rear fuse and relay module | 116A |
| K40/5 | Rear fuse and relay module | 124A |
| K40/5 | Rear fuse and relay module | 139A |
| K40/5 | Rear fuse and relay module | 132A |
| K40/5 | Rear fuse and relay module | 152A |
| K40/5f400 | Fuse 400 | 18A |
| K40/5f401 | Fuse 401 | 16A |
| K40/5f402 | Fuse 402 | 15A |
| K40/5f403 | Fuse 403 | 12A |
| K40/5f404 | Fuse 404 | 10A |
| K40/5f405 | Fuse 405 | 8A |
| K40/5f406 | Fuse 406 | 30A |
| K40/5f407 | Fuse 407 | 29A |
| K40/5f408 | Fuse 408 | 27A |
| K40/5f409 | Fuse 409 | 26A |
| K40/5f410 | Fuse 410 | 25A |
| K40/5f411 | Fuse 411 | 23A |
| K40/5f412 | Fuse 412 | 42A |
| K40/5f413 | Fuse 413 | 39A |
| K40/5f414 | Fuse 414 | 38A |
| K40/5f415 | Fuse 415 | 36A |
| K40/5f416 | Fuse 416 | 35A |
| K40/5f417 | Fuse 417 | 33A |
| K40/5f449 | Fuse 449 | 57A |
| K40/5f450 | Fuse 450 | 55A |
| K40/5f451 | Fuse 451 | 53A |
| K40/5f452 | Fuse 452 | 51A |
| K40/5f453 | Fuse 453 | 50A |
| K40/5f454 | Fuse 454 | 47A |
| K40/5f455 | Fuse 455 | 76A |
| K40/5f456 | Fuse 456 | 74A |
| K40/5f457 | Fuse 457 | 70A |
| K40/5f458 | Fuse 458 | 66A |
| K40/5f459 | Fuse 459 | 62A |
| K40/5f460 | Fuse 460 | 61A |
| K40/5f461 | Fuse 461 | 87A |
| K40/5f462 | Fuse 462 | 86A |
| K40/5f463 | Fuse 463 | 84A |
| K40/5f464 | Fuse 464 | 83A |
| K40/5f465 | Fuse 465 | 81A |
| K40/5f466 | Fuse 466 | 80A |
| K40/5f467 | Fuse 467 | 100A |
| K40/5f468 | Fuse 468 | 98A |
| K40/5f469 | Fuse 469 | 96A |
| K40/5f470 | Fuse 470 | 95A |
| K40/5f471 | Fuse 471 | 93A |
| K40/5f472 | Fuse 472 | 92A |
| K40/5f473 | Fuse 473 | 111A |
| K40/5f474 | Fuse 474 | 119A |
| K40/5f475 | Fuse 475 | 108A |
| K40/5f476 | Fuse 476 | 115A |
| K40/5f477 | Fuse 477 | 113A |
| K40/5f478 | Fuse 478 | 105A |
| K40/5kS | Reserve solenoid switch | 59A |
| K40/5kT | Heated rear window relay | 117A |
| K40/5kU | 2nd seat row cup holder and power outlet relay | 7A |
| K40/5kV | AdBlue® relay | 13A |
| K40/5kX | 1st seat row/trunk refrigerator box and power outlet relay | 64A |
| K67 | AIR BODY CONTROL relay | 110L |
| M2/23 | Left booster blower | 87L |
| M2/24 | Right booster blower | 88L |
| M40 | Multicontour seat pneumatic pump | 28L |
| N10/8 | Rear SAM control unit | 114L |
| N10/8 | Rear SAM control unit | 129L |
| N116/5 | DC/DC converter charger | 91L |
| N118 | Fuel pump control unit | 22L |
| N118/5 | AdBlue® control unit | 26L |
| N118/5 | AdBlue® control unit | 111L |
| N118/5 | AdBlue® control unit | 123L |
| N121 | Trunk lid control control unit | 104L |
| N121/1 | Tailgate control control unit | 105L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 42L |
| N129/1 | Power electronics control unit | 34L |
| N133/1 | Instrument cluster control unit | 84L |
| N145/1 | Drive unit control unit | 62L |
| N145/1 | Drive unit control unit | 82L |
| N145/1 | Drive unit control unit | 124L |
| N162 | Ambiance illumination control unit | 33L |
| N24/3 | DC/AC converter control unit | 56L |
| N24/3 | DC/AC converter control unit | 76L |
| N25/12 | Right rear seat heater control unit | 52L |
| N25/5 | Driver seat heater control unit | 49L |
| N25/6 | Rear seat heaters control unit | 53L |
| N3/2 | Electric differential lock control unit | 94L |
| N3/42 | Active engine mounts control unit | 38L |
| N3/42 | Active engine mounts control unit | 51L |
| N38 | Rear switching module | 96L |
| N40/2 | Sound system midline amplifier control unit | 109L |
| N40/3 | Sound system amplifier control unit | 106L |
| N40/7 | Advanced sound system amplifier control unit | 108L |
| N45 | All-wheel drive control unit | 55L |
| N51/3 | AIR BODY CONTROL control unit | 46L |
| N62 | Parking system control unit | 98L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 36L |
| N66/2 | Backup camera control unit | 97L |
| N83/1 | DC/DC converter control unit | 85L |
| N88 | Tire pressure monitor control unit | 100L |
| R3 | Front cigarette lighter with ashtray illumination | 67L |
| R5/3 | Rear cup holder | 8L |
| S22/1 | Driver seat partially electric seat adjustment switch | 10L |
| S22/1 | Driver seat partially electric seat adjustment switch | 9L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 13L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 11L |
| W7/1 | Right tail lamp trunk ground point | 130J |
| W7/1 | Right tail lamp trunk ground point | 127H |
| X115/2 | Rear passenger compartment USB connector | 41L |
| X115/3 | Left rear passenger compartment USB port | 75L |
| X115/4 | Right rear passenger compartment USB port | 77L |
| X55/3x1 | Driver seat Rear Seat Entertainment system electrical connector | 70L |
| X55/4x1 | Front passenger seat Rear Seat Entertainment system electrical connector | 72L |
| X58/12x1 | Luggage compartment socket | 73L |
| X58/17x1 | Electrical connector/front vehicle interior socket | 69L |
| X58/18x1 | Rear center console power outlet | 66L |
| Z6/30z7 | Circuit 31 connector sleeve | 130G |
