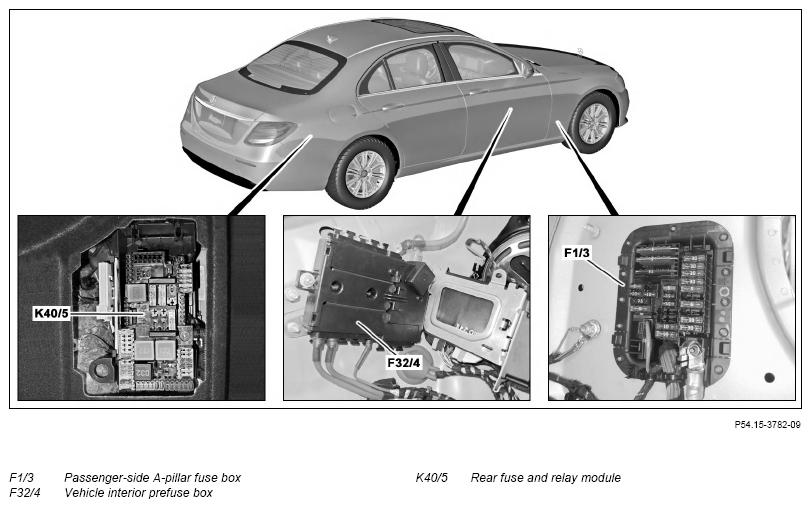

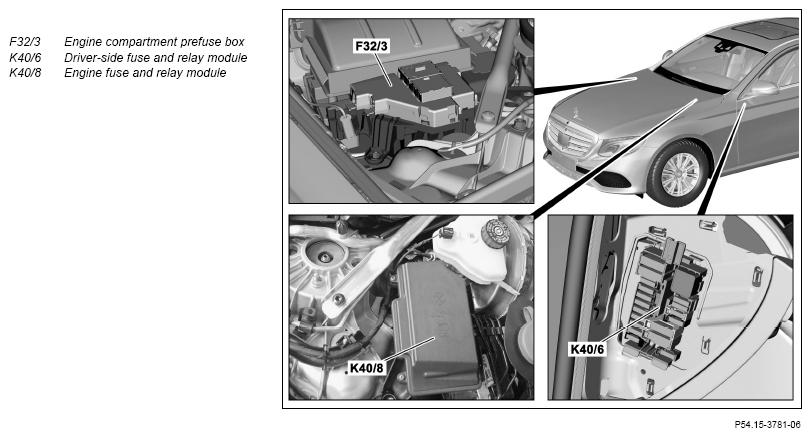

Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800FGA
Model 213
up to model year 2021
Model 213 with code B01 (48V technology)

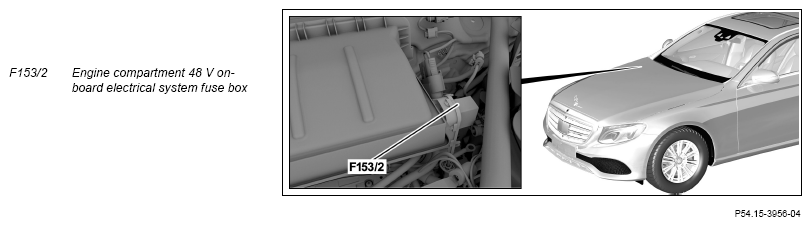

Fig 3: Engine Compartment 48V Fuse Box Component Location - Model 213 Up To Model Year 2021 With Code B01
Model 213 with code ME06 (Hybrid drive, 60 kW variant (including plug-in))

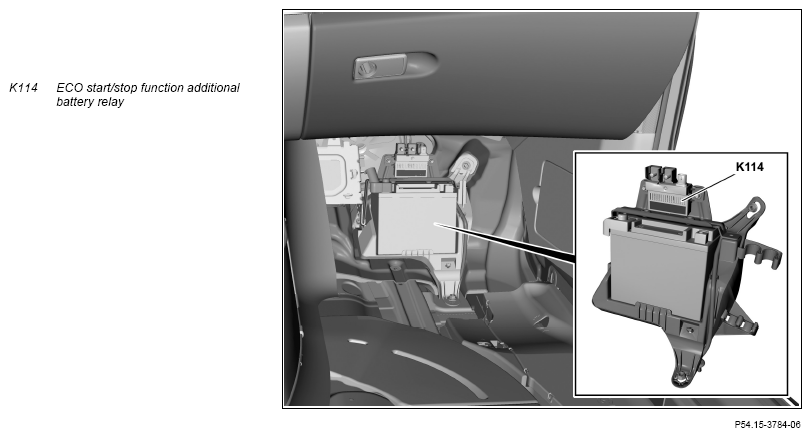

Fig 4: ECO Start/Stop Battery Relay Component Location - Model 213 Up to Model Year 2021 With Code ME06
Model 213 with code 990 (AMG vehicles) as of 01.12.2018

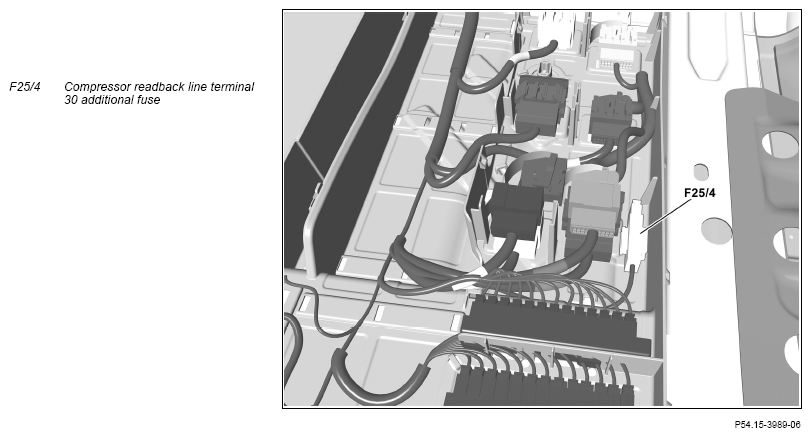

Fig 5: Compressor Readback Line Terminal 30 Fuse Component Location - Model 213 Up To Model Year 2021 With Code 990
Model 213
as of model year 2019 up to model year 2021
with code 990 (AMG vehicles)
The compressor readback line circuit 30 additional fuse is located in the cable duct in the floor on the driver's side.
Model 213
up to model year 2021
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Located at the positive terminal of the on-board electrical system battery (G1) is the ECO start/stop function diode (V19).
| Assignment of passenger-side A-pillar fuse box | F1/3 | GF54.15-P-1256-48FG | |
| Fuse assignment of prefuse box in engine compartment | F32/3, K57/4 | GF54.15-P-1256-25FG | |
| Fuse assignment on interior prefuse box | F32/4 | GF54.15-P-1256-26FG | |
| Fuse assignment of fuse box for 48 V on-board electrical system in engine compartment | Model 213 up to model year 2021 with code B01 (48V technology) F153/2 |
GF54.15-P-1256-46FG | |
| Assignment of rear fuse and relay module | K40/5 | GF54.15-P-1256-30FG | |
| Assignment of driver-side fuse and relay module | K40/6 | GF54.15-P-1256-49FG | |
| Assignment of engine fuse and relay module | K40/8 | GF54.15-P-1256-32FG |
