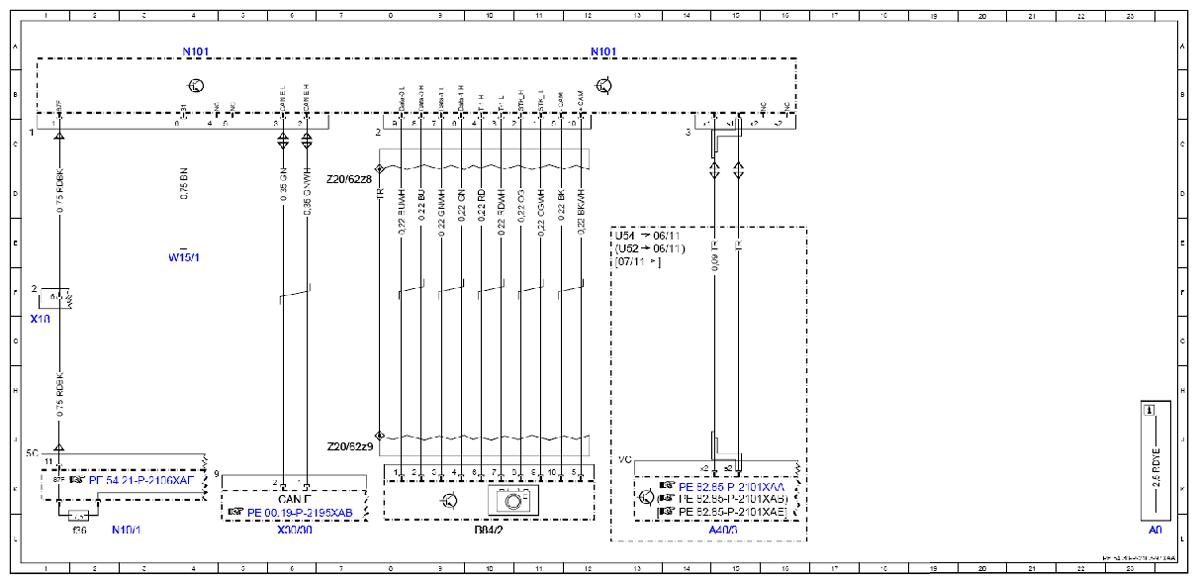

| A0 |
Color code key |
23L |
| A40/3 |
COMAND control unit |
15L |
| B84/2 |
Night View Assist camera |
10L |
| CAN E |
Chassis CAN |
6K |
| N10/1 |
Front SAM control unit with fuse and relay module |
2L |
| N10/1f36 |
Fuse 36 |
|
| N101 |
Night vision assist control unit |
12A |
| N101 |
Night vision assist control unit |
4A |
| U52 |
Valid for Japan |
13E |
| U54 |
Valid for all except Japan |
13E |
| W15/1 |
Right footwell ground point |
4E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
1G |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
6L |
| Z20/62z8 |
Shielding connector sleeve |
7D |
| Z20/62z9 |
Shielding connector sleeve |
7J |
