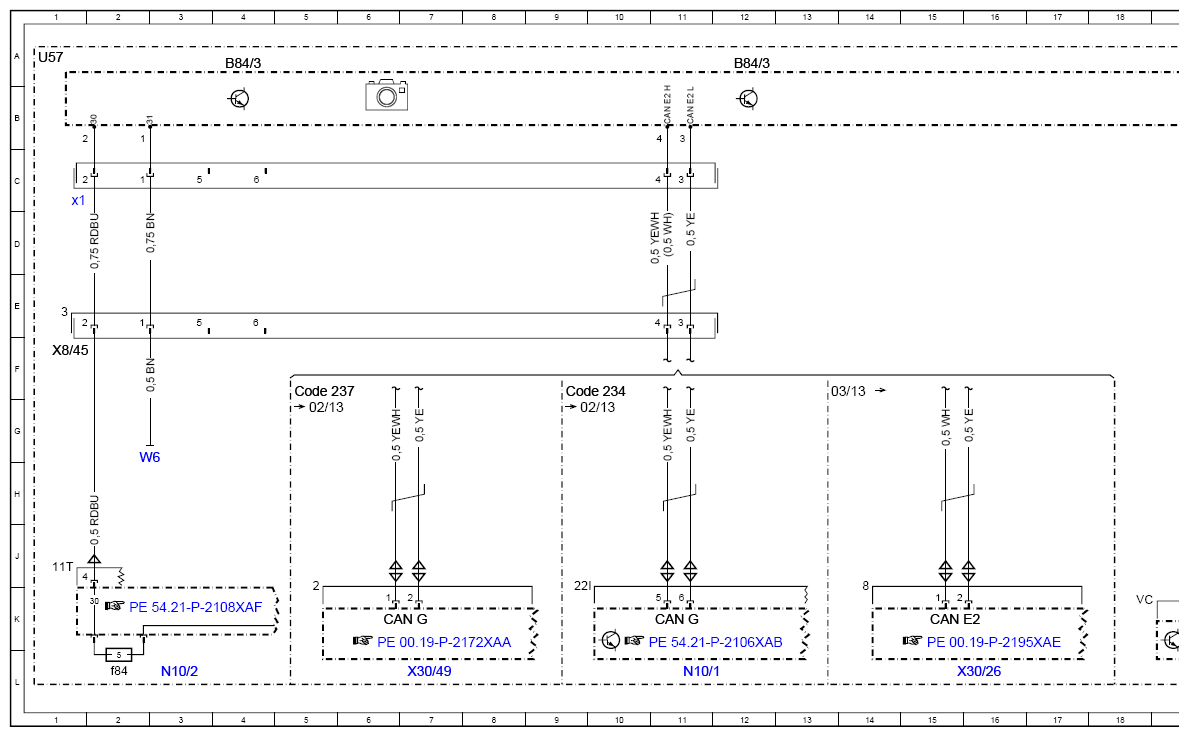

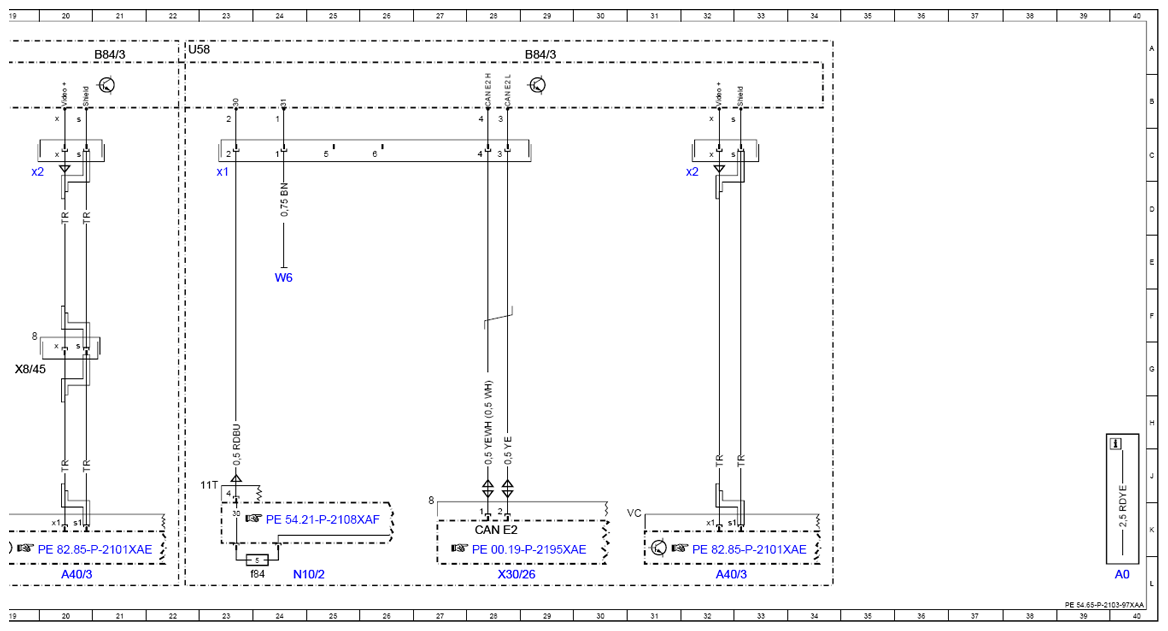

| A0 |
Color code key |
40L |
| A40/3 |
COMAND control unit |
20L |
| A40/3 |
COMAND control unit |
32L |
| B84/3 |
Backup camera |
4A |
| B84/3 |
Backup camera |
12A |
| B84/3 |
Backup camera |
21A |
| B84/3 |
Backup camera |
29A |
| B84/3x1 |
Backup camera electrical connector |
1C |
| B84/3x1 |
Backup camera electrical connector |
23C |
| B84/3x2 |
Reversing camera electrical connector 2 |
19C |
| B84/3x2 |
Reversing camera electrical connector 2 |
32C |
| CAN E2 |
Chassis CAN 2 |
15K |
| CAN E2 |
Chassis CAN 2 |
28K |
| CAN G |
Front end CAN |
6K |
| CAN G |
Front end CAN |
11K |
| Code 234 |
Blind spot assist |
9F |
| Code 237 |
Active Blind Spot Assist |
5F |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
24L |
| N10/2f84 |
Fuse 84 |
2L |
| N10/2f84 |
Fuse 84 |
24L |
| U57 |
Valid for model 218.9 |
1A |
| U58 |
Valid for model 218.3 |
22A |
| W6 |
Left rear wheel well ground point |
2H |
| W6 |
Left rear wheel well ground point |
24E |
| X30/26 |
Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector |
16L |
| X30/26 |
Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector |
28L |
| X30/49 |
Front end CAN (CAN G) potential distributor electrical connector |
7L |
| X8/45 |
Left vehicle interior and trunk lid/liftgate electrical connector |
19G |
| X8/45 |
Left vehicle interior and trunk lid/liftgate electrical connector |
1F |
