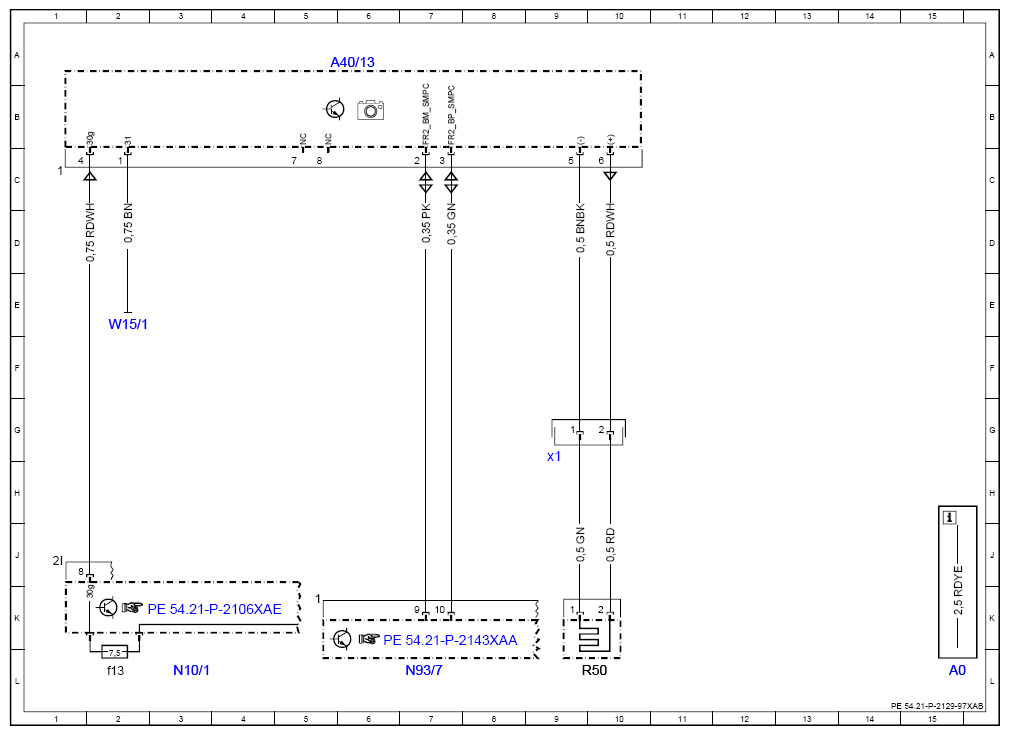

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97XAB

Code:	Designation:	Position:
A0	Color code key	15L
A40/13	Stereo multifunction camera	6A
N10/1	Front SAM control unit with fuse and relay module	3L
N10/1f13	Fuse 13	2L
N93/7	Chassis gateway control unit	7L
R50	Auxiliary heater heating element	10L
R50x1	Auxiliary heater heating element electrical connector	9H
W15/1	Right footwell ground point	2E
