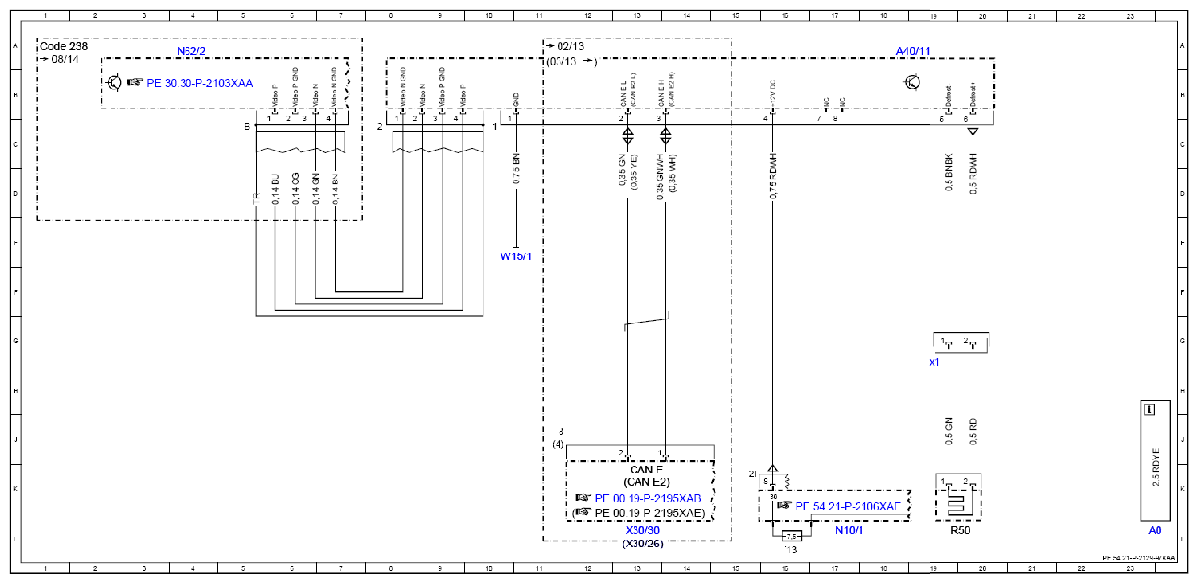

| A0 |
Color code key |
23L |
| A40/11 |
Multifunction camera |
18A |
| CAN E |
Chassis CAN |
13K |
| CAN E2 |
Chassis CAN 2 |
13K |
| Code 238 |
Active Lane Keeping Assist |
1A |
| N10/1 |
Front SAM control unit with fuse and relay module |
17L |
| N10/1f13 |
Fuse 13 |
16L |
| N62/2 |
Video and radar sensor system control unit |
4A |
| R50 |
Auxiliary heater heating element |
19L |
| R50x1 |
Auxiliary heater heating element electrical connector |
19H |
| W15/1 |
Right footwell ground point |
10E |
| X30/26 |
Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector |
13L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
13L |
