| A0 |
Color code key |
32L |

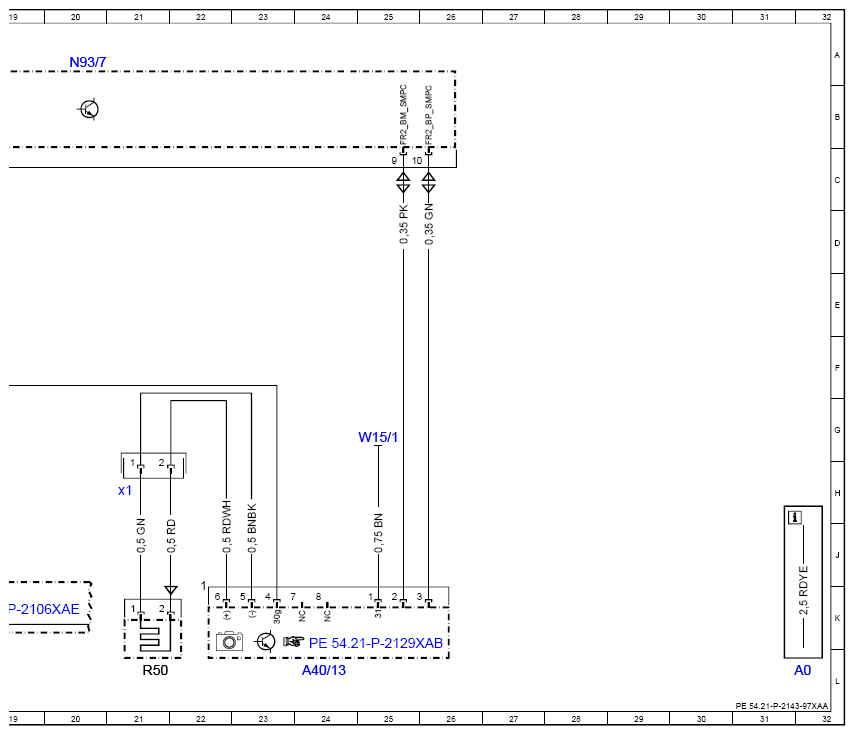

| A40/13 |
Stereo multifunction camera |
24L |
| CAN E1 |
Chassis CAN 1 |
7K |
| CAN E2 |
Chassis CAN 2 |
11K |
| N10/1 |
Front SAM control unit with fuse and relay module |
18L |
| N10/1f13 |
Fuse 13 |
17L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N10/2f79 |
Fuse 79 |
3L |
| N62/1 |
Radar sensors control unit |
14L |

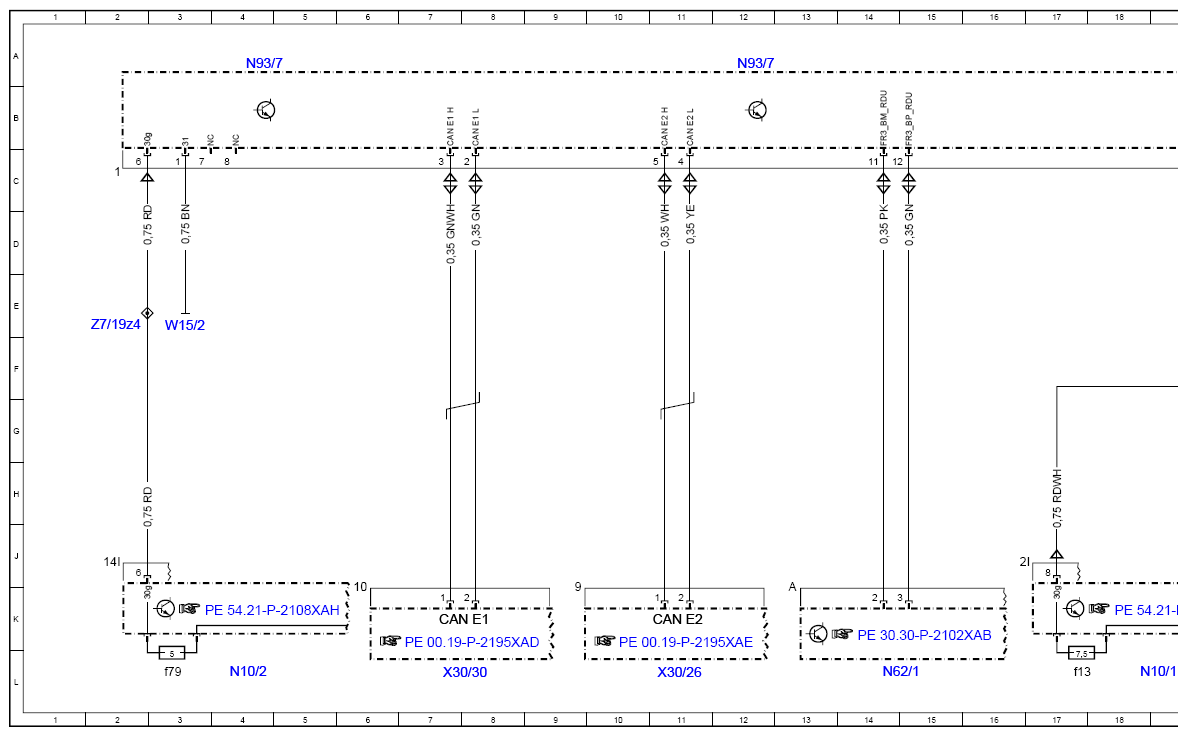

| N93/7 |
Chassis gateway control unit |
4A |
| N93/7 |
Chassis gateway control unit |
12A |
| N93/7 |
Chassis gateway control unit |
20A |
| R50 |
Auxiliary heater heating element |
21L |
| R50x1 |
Auxiliary heater heating element electrical connector |
21H |
| W15/1 |
Right footwell ground point |
25G |
| W15/2 |
Left footwell ground point |
3E |
| X30/26 |
Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector |
11L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
| Z7/19z4 |
Circuit 30 (fused) connector sleeve |
2E |
