| 1 |
Circuit 15, status |
8J |
| 10 |
Blind Spot Assist readiness and warning indicator, request |
22E |
| 10 |
Blind Spot Assist readiness and warning indicator, request |
24H |
| 11 |
Blind Spot Assist readiness and warning indicator, actuation |
27J |
| 12 |
Combination switch, status |
7B |
| 12 |
Combination switch, status |
11G |
| 13 |
Warning message issue, request |
28E |
| 13 |
Warning message issue, request |
22E |
| 14 |
Warning tone, request |
28E |
| 14 |
Warning tone, request |
21E |
| 2 |
Blind spot assist, status |
25E |
| 2 |
Blind spot assist, status |
12J |
| 3 |
Engine running, signal |
12G |
| 4 |
Drivetrain operational, signal |
12G |
| 5 |
Wheel speed, signal |
5D |
| 5 |
Wheel speed, signal |
8G |
| 6 |
Wheel rotation direction, signal |
5C |
| 6 |
Wheel rotation direction, signal |
8G |
| 7 |
Trailer recognition, status |
23D |
| 7 |
Trailer recognition, status |
12K |
| 8 |
Radar sensor (slave), status |
12H |
| 9 |
Blind Spot Assist warning output, request |
12H |
| A1 |
Instrument cluster |
29E |
| A1h1 |
Warning buzzer |
28D |
| A1p13 |
Multifunction display |
30D |

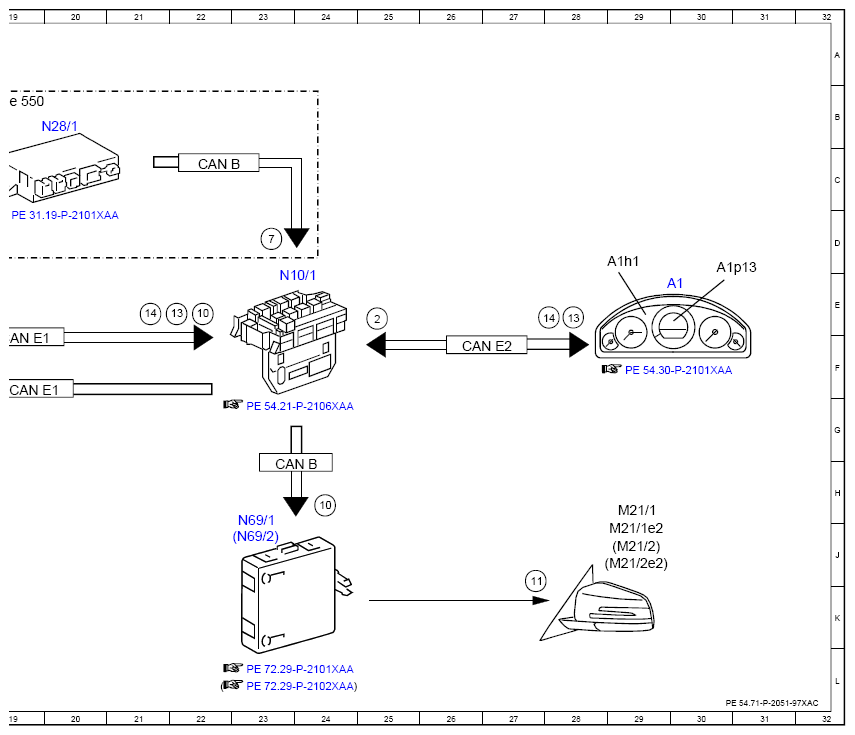

| B29/4 |
Left rear bumper intelligent radar sensor |
8H |
| B29/5 |
Right rear bumper intelligent radar sensor |
13H |
| CAN B |
Interior CAN |
23H |
| CAN B |
Interior CAN |
22C |
| CAN E1 |
Chassis CAN 1 |
7F |
| CAN E1 |
Chassis CAN 1 |
10H |
| CAN E1 |
Chassis CAN 1 |
15F |
| CAN E1 |
Chassis CAN 1 |
14K |
| CAN E1 |
Chassis CAN 1 |
12E |
| CAN E1 |
Chassis CAN 1 |
19F |
| CAN E1 |
Chassis CAN 1 |
7K |
| CAN E1 |
Chassis CAN 1 |
19F |
| CAN E1 |
Chassis CAN 1 |
9E |
| CAN E2 |
Chassis CAN 2 |
26F |
| Code 550 |
Trailer hitch |
19B |
| Code 550 |
Trailer hitch |
10K |

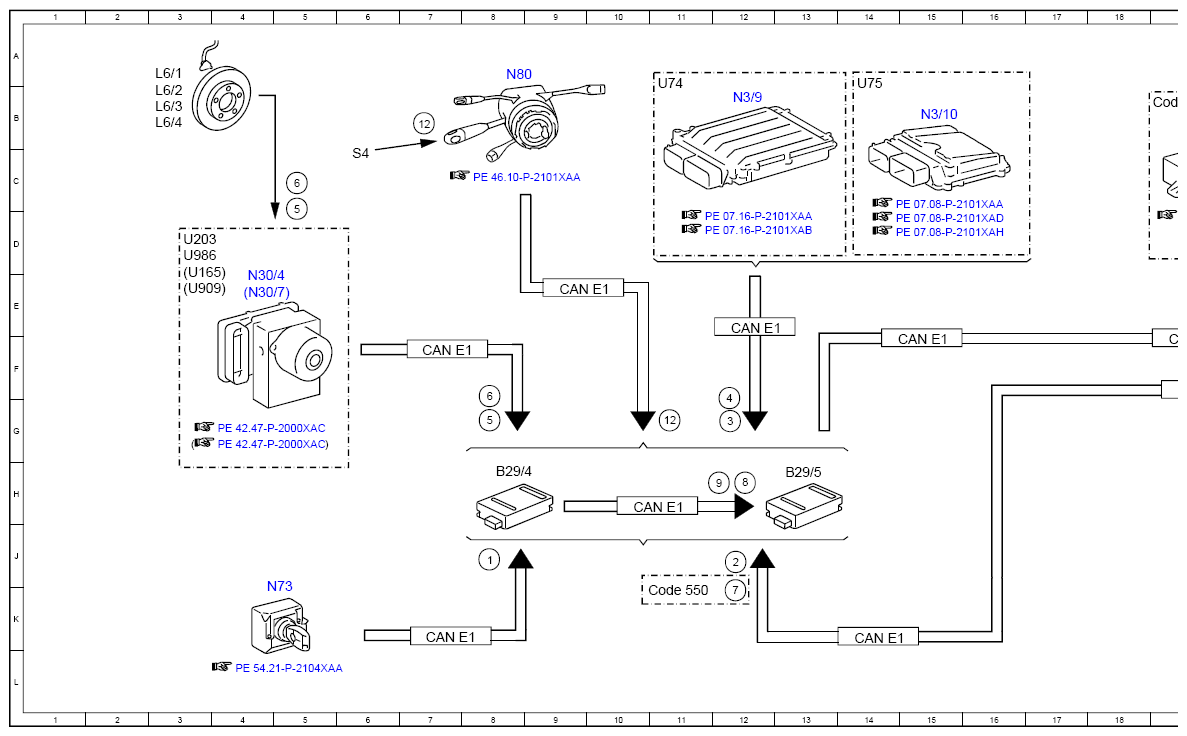

| L6/1 |
Left front axle RPM sensor |
3A |
| L6/2 |
Right front axle RPM sensor |
3B |
| L6/3 |
Left rear axle RPM sensor |
3B |
| L6/4 |
Right rear axle RPM sensor |
3B |
| M21/1 |
Left outside mirror |
29H |
| M21/1e2 |
Left Blind Spot Assist warning lamp |
29J |
| M21/2 |
Right outside mirror |
29J |
| M21/2e2 |
Right Blind Spot Assist warning lamp |
29J |
| N10/1 |
Front SAM control unit with fuse and relay module |
23E |
| N28/1 |
Trailer recognition control unit |
20B |
| N3/10 |
ME-SFI [ME] control unit |
15B |
| N3/9 |
CDI control unit |
12B |
| N30/4 |
Electronic Stability Program control unit |
4E |
| N30/7 |
Premium Electronic Stability Program control unit |
4E |
| N69/1 |
Left front door control unit |
23J |
| N69/2 |
Right front door control unit |
23J |
| N73 |
Electronic ignition switch control unit |
5K |
| N80 |
Steering column module control unit |
8A |
| S4 |
Combination switch |
6C |
| U165 |
Valid for AMG |
3E |
| U203 |
Valid without DISTRONIC PLUS |
3D |
| U74 |
Valid for diesel engines |
11B |
| U75 |
Valid for gasoline engines |
14B |
| U909 |
Valid for DISTRONIC PLUS |
3E |
| U986 |
Not valid for AMG |
3D |
