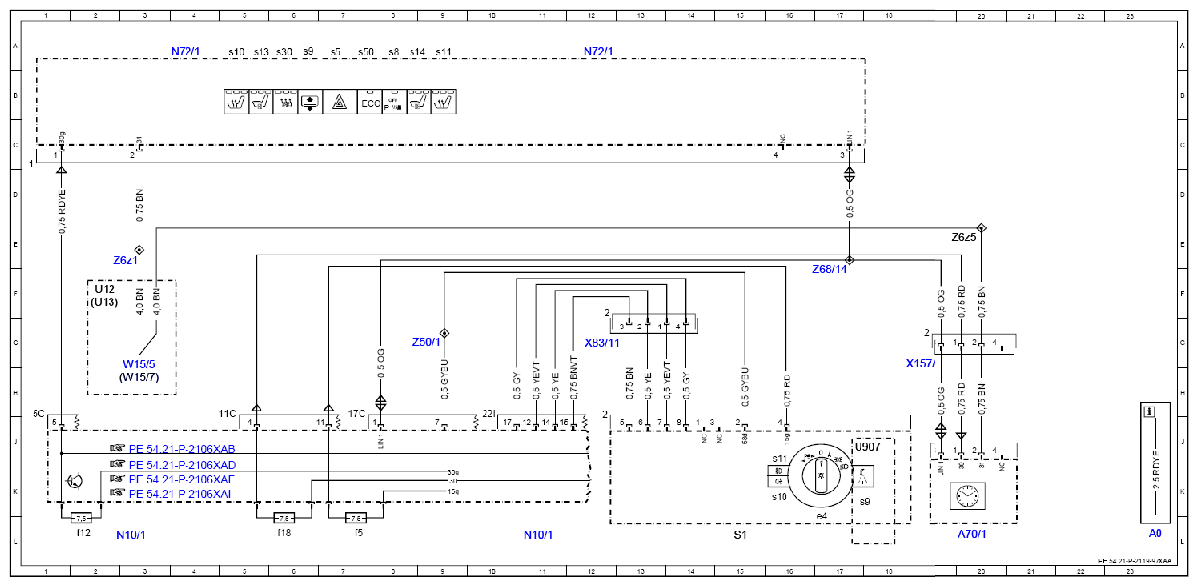

| A0 |
Color code key |
23L |
| A70/1 |
Analog clock |
20L |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1f12 |
Fuse 12 |
2L |
| N10/1f18 |
Fuse 18 |
6L |
| N10/1f5 |
Fuse 5 |
7L |
| N72/1 |
Upper control panel control unit |
12A |
| N72/1 |
Upper control panel control unit |
4A |
| N72/1s10 |
Left front heated seat button |
5A |
| N72/1s11 |
Right front heated seat button |
9A |
| N72/1s13 |
Left front seat ventilation button |
5A |
| N72/1s14 |
Right front seat ventilation button |
8A |
| N72/1s30 |
Stationary heater button |
6A |
| N72/1s5 |
Hazard warning flasher switch |
7A |
| N72/1s50 |
ECO start/stop function button |
7A |
| N72/1s8 |
Parking system button |
8A |
| N72/1s9 |
Rear window roller sun blind button |
6A |
| S1 |
Exterior lights switch |
15L |
| S1e4 |
Switch illumination |
17L |
| S1s10 |
Rear fog lamp button |
16K |
| S1s11 |
Front fog lamp button |
16J |
| S1s9 |
Night View Assist button |
17K |
| U12 |
Valid for left-hand drive vehicles |
2F |
| U13 |
Valid for right-hand drive vehicles |
2F |
| U907 |
Valid for Night View Assist |
17J |
| W15/5 |
Left front footwell ground point |
3H |
| W15/7 |
Right front footwell ground point |
3H |
| X157/5 |
Right front door ambiance illumination electrical connector |
19G |
| X83/11 |
Circuit 56 exterior lights switch electrical connector |
12G |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
9G |
| Z68/14 |
Cockpit LIN bus connector sleeve |
17F |
| Z6z1 |
Circuit 31 connector sleeve |
3E |
| Z6z5 |
|
20E |
