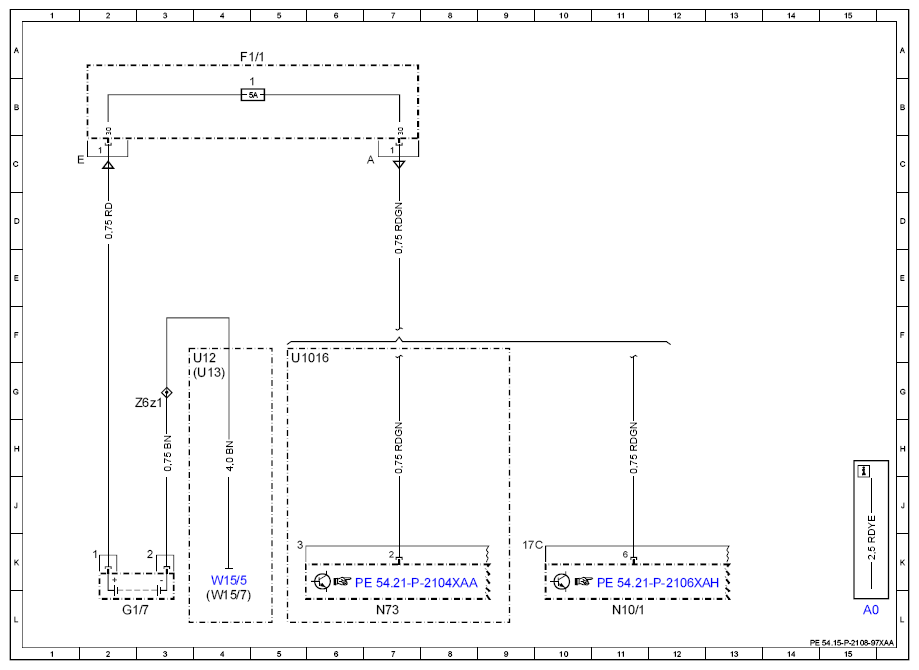

Wiring Diagram For Fuse Box (F1/1) - PE54.15-P-2108-97XAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F1/1 | Fuse box | 5A |
| F1/1f11 | Prefuse 1 | 4B |
| G1/7 | Additional battery | 2L |
| N10/1 | Front SAM control unit with fuse and relay module | 11L |
| N73 | Electronic ignition switch control unit | 7L |
| U1016 | Valid for ECO start/stop function additional battery | 5F |
| U12 | Valid for left-hand drive vehicles | 4F |
| U13 | Valid for right-hand drive vehicles | |
| W15/5 | Left front footwell ground point | 4K |
| W15/7 | Right front footwell ground point | |
| Z6z1 | Circuit 31 connector sleeve | 3G |
