Color code key |
40L |
| CAN B |
Interior CAN |
32K |
| CAN E |
Chassis CAN |
29K |
| Code 4U7 |
Start/stop voltage dip protection |
2F |
| F1/1 |
Fuse box |
4L |
| F1/1f1 |
Prefuse 1 |
4L |
| G1/7 |
Additional battery |
7L |

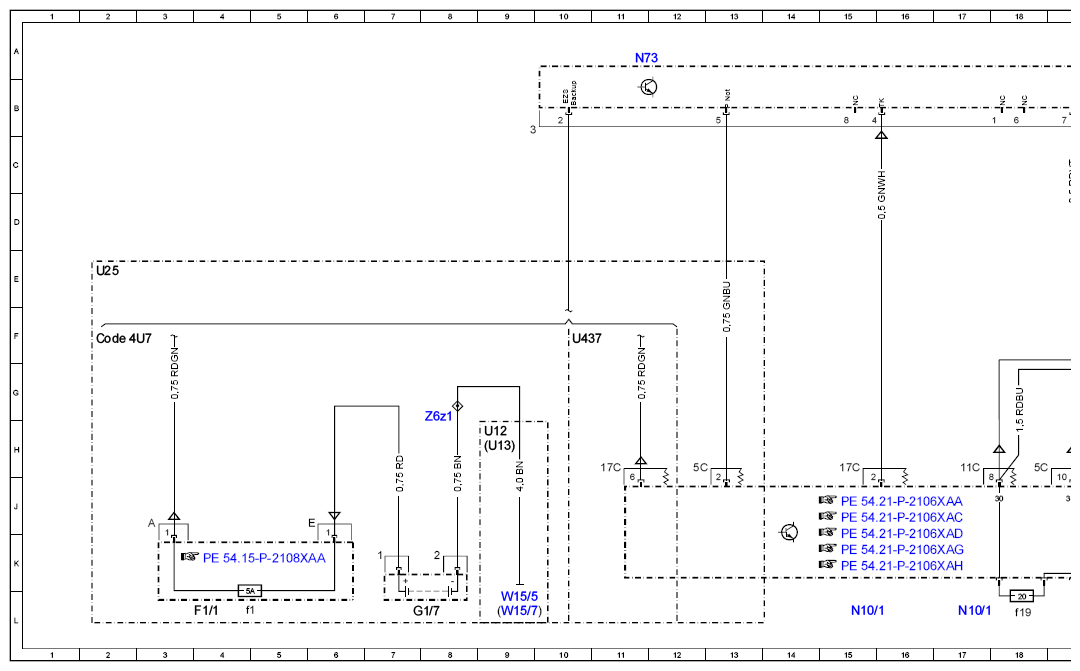

| N10/1 |
Front SAM control unit with fuse and relay module |
15L |
| N10/1 |
Front SAM control unit with fuse and relay module |
17L |
| N10/1f19 |
Fuse 19 |
18L |
| N10/1f27 |
Fuse 27 |
19L |
| N26/5 |
Electric steering lock control unit |
22L |

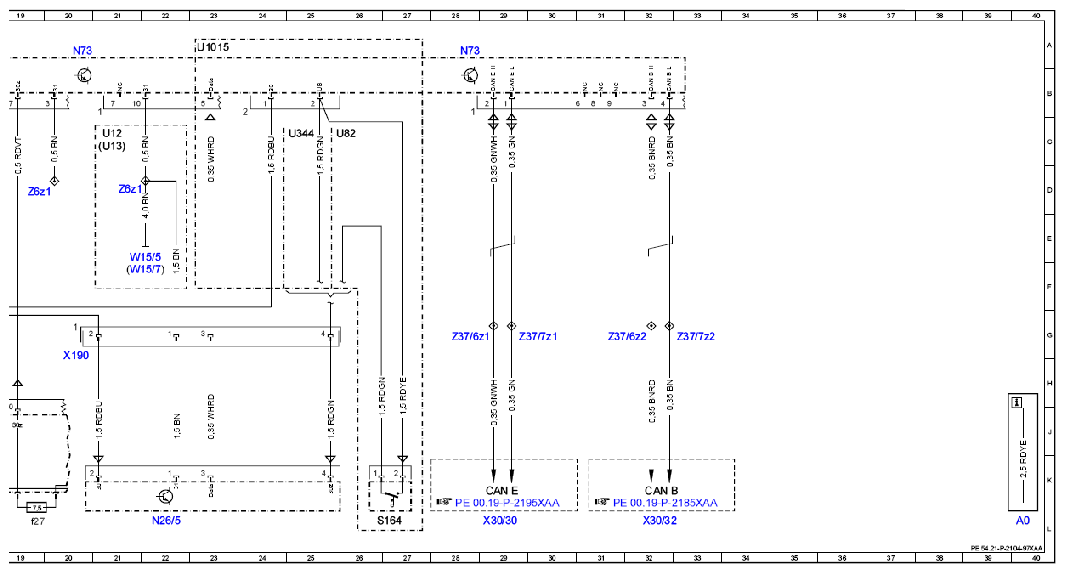

| N73 |
Electronic ignition switch control unit |
11A |
| N73 |
Electronic ignition switch control unit |
28A |
| N73 |
Electronic ignition switch control unit |
20A |
| S164 |
Automatic transmission neutral position switch |
27L |
| U1015 |
Valid for electric steering lock |
23A |
| U12 |
Valid for left-hand drive vehicles |
9H |
| U12 |
Valid for left-hand drive vehicles |
21C |
| U13 |
Valid for right-hand drive vehicles |
9H |
| U13 |
Valid for right-hand drive vehicles |
21C |
| U25 |
Valid for automatic transmission |
2E |
| U344 |
Valid for all except KEYLESS GO |
25C |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
10F |
| U82 |
Valid for KEYLESS GO |
26C |
| W15/5 |
Left front footwell ground point |
9L |
| W15/5 |
Left front footwell ground point |
21E |
| W15/7 |
Right front footwell ground point |
9L |
| W15/7 |
Right front footwell ground point |
21F |
| X190 |
Instrument panel and electric steering lock electrical connector |
20H |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
29L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
32L |
| Z37/6z1 |
Chassis CAN (high) connector sleeve |
28G |
| Z37/6z2 |
Interior CAN (high) connector sleeve |
32G |
| Z37/7z1 |
Chassis CAN (low) connector sleeve |
30G |
| Z37/7z2 |
Interior CAN (low) connector sleeve |
33G |
| Z6z1 |
Circuit 31 connector sleeve |
8G |
| Z6z1 |
Circuit 31 connector sleeve |
19D |
| Z6z1 |
Circuit 31 connector sleeve |
21D |
