| A0 |
Color code key |
48L |
| CAN E |
Chassis CAN |
7K |
| CAN E1 |
Chassis CAN 1 |
7K |
| CAN E2 |
Chassis CAN 2 |
11K |
| E17/47 |
Left front illuminated door sill molding |
34L |
| E17/48 |
Right front illuminated door sill molding |
36L |

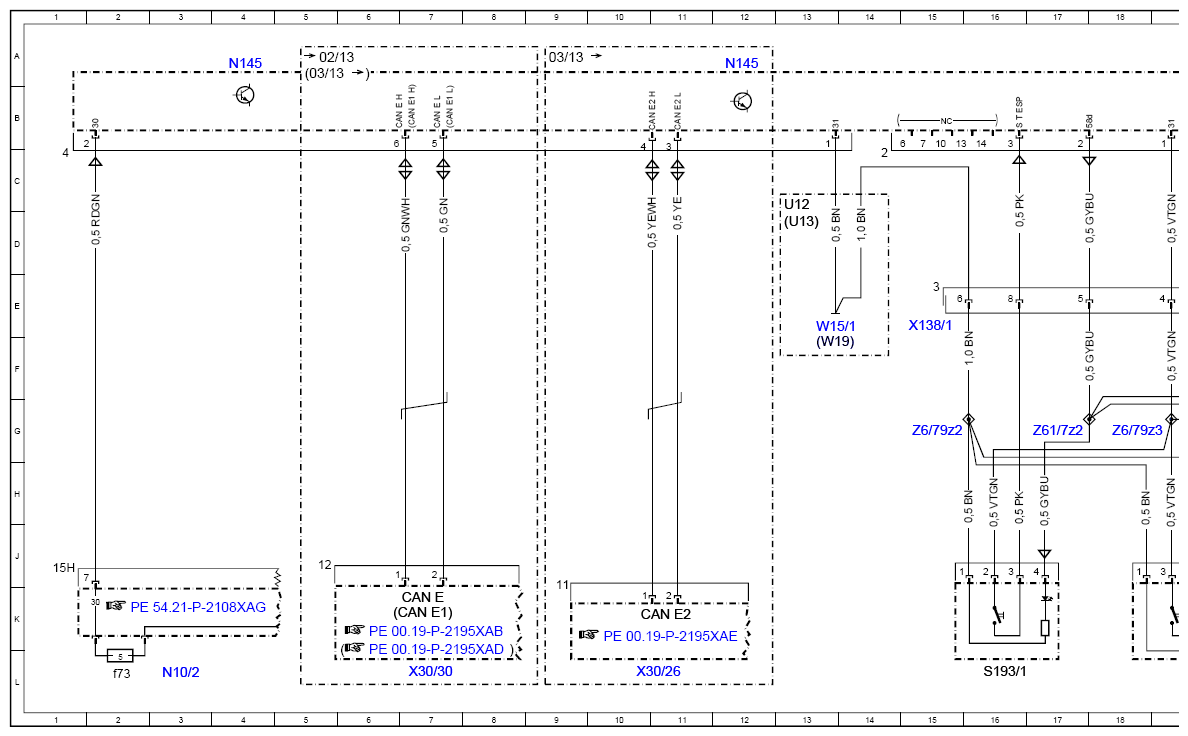

| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f73 |
Fuse 73 |
2L |
| N145 |
Transmission mode control unit |
4A |
| N145 |
Transmission mode control unit |
36A |
| N145 |
Transmission mode control unit |
20A |
| N145 |
Transmission mode control unit |
12A |
| N145 |
Transmission mode control unit |
28A |
| N99/10 |
Right front illuminated door sill molding voltage converter |
30L |
| N99/9 |
Left front illuminated door sill molding voltage converter |
27L |

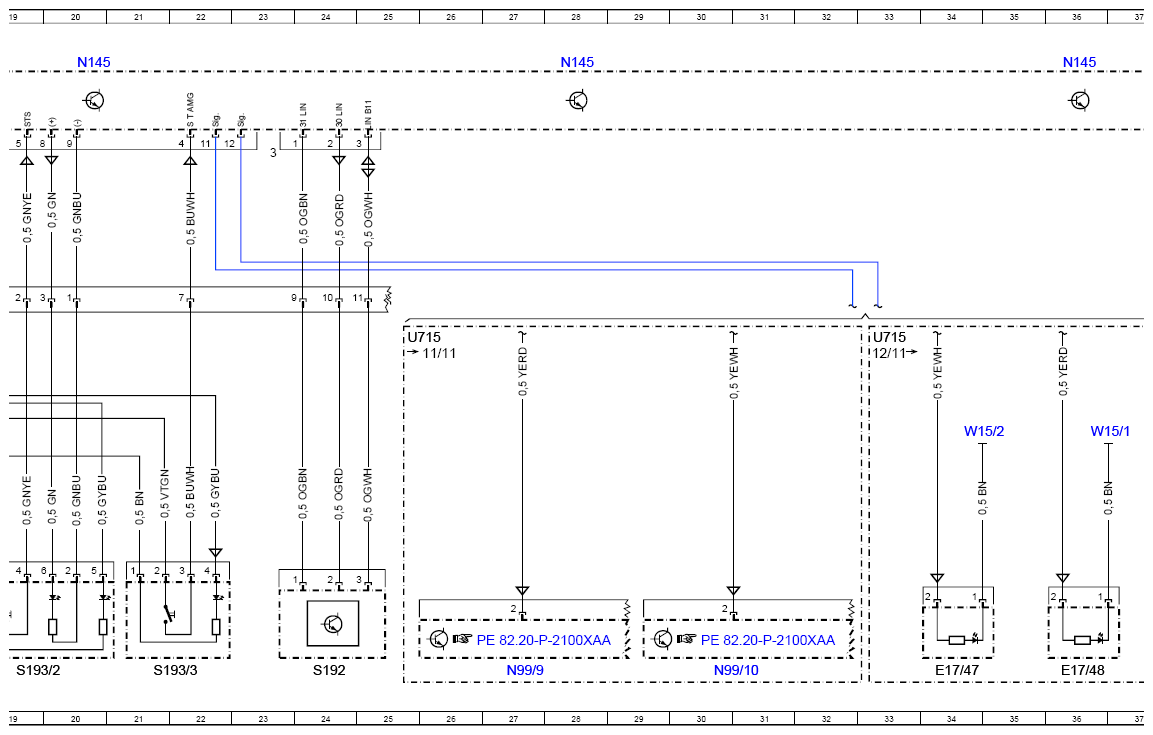

| S192 |
Transmission mode rotary switch |
24L |
| S193/1 |
AMG ESP sport off button |
16L |
| S193/2 |
AMG suspension button |
19L |
| S193/3 |
AMG button |
21L |
| U12 |
Valid for left-hand drive vehicles |
13C |
| U13 |
Valid for right-hand drive vehicles |
13D |
| U715 |
Valid for illuminated door sills |
25F |
| U715 |
Valid for illuminated door sills |
33F |
| W15/1 |
Right footwell ground point |
13E |
| W15/1 |
Right footwell ground point |
36G |
| W15/2 |
Left footwell ground point |
34G |
| W19 |
Right front seat crossmember ground point |
13F |
| X138/1 |
Front center console electrical connector |
15E |
| X30/26 |
Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector |
10L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
| Z6/79z2 |
Front center console circuit 31 connector sleeve |
15G |
| Z6/79z3 |
Front center console circuit 31 connector sleeve |
18G |
| Z61/7z2 |
Wiring harness connector sleeve for center console, terminal 58d |
17G |
