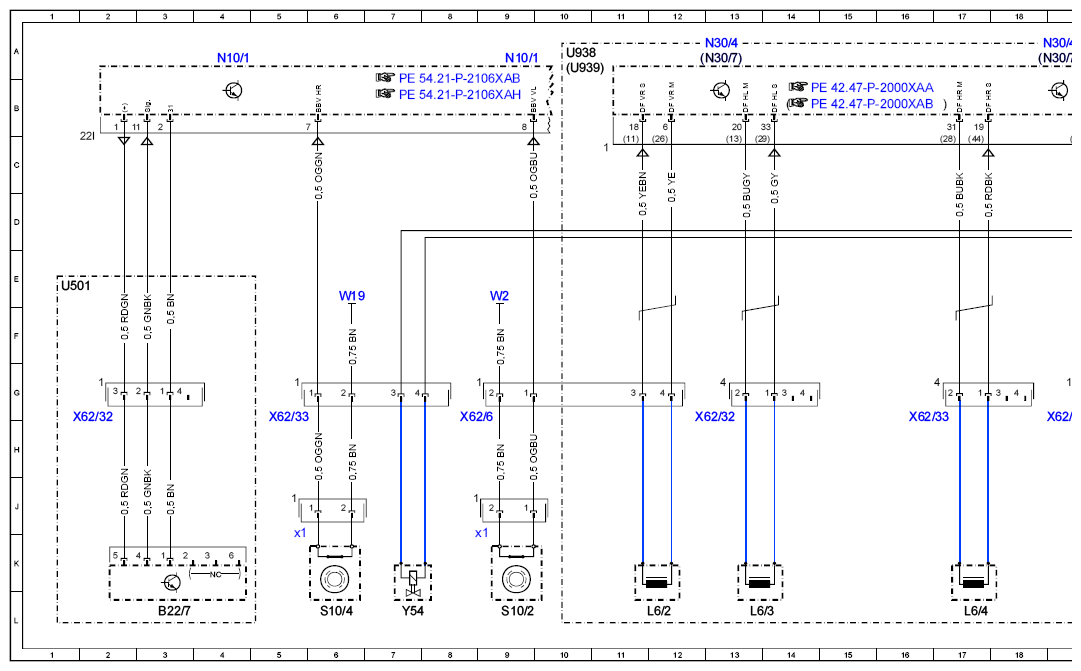

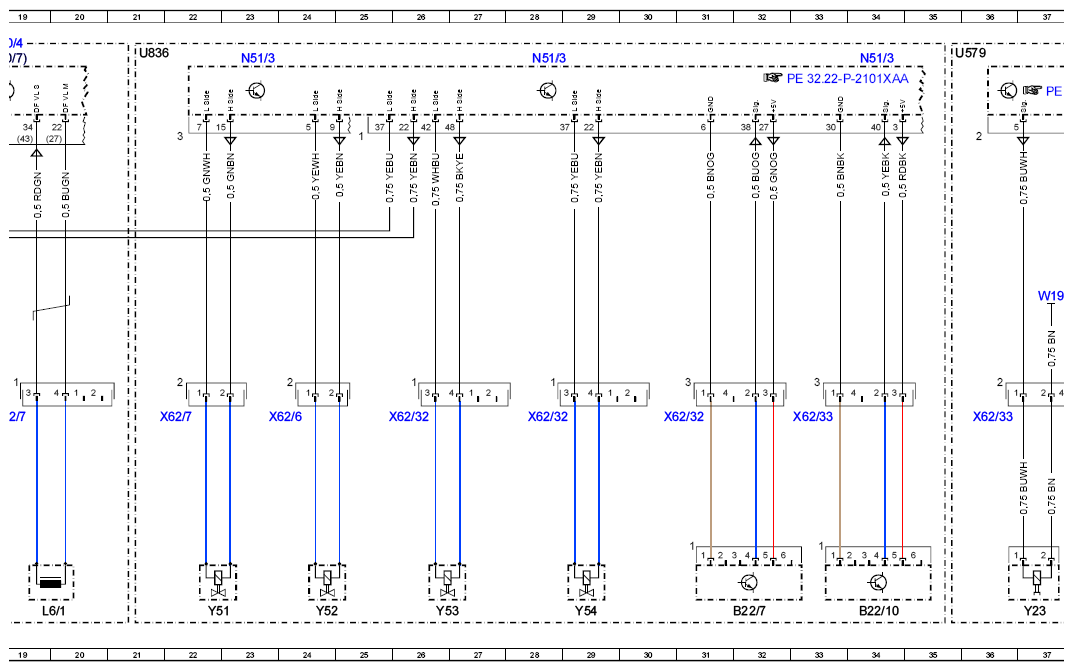

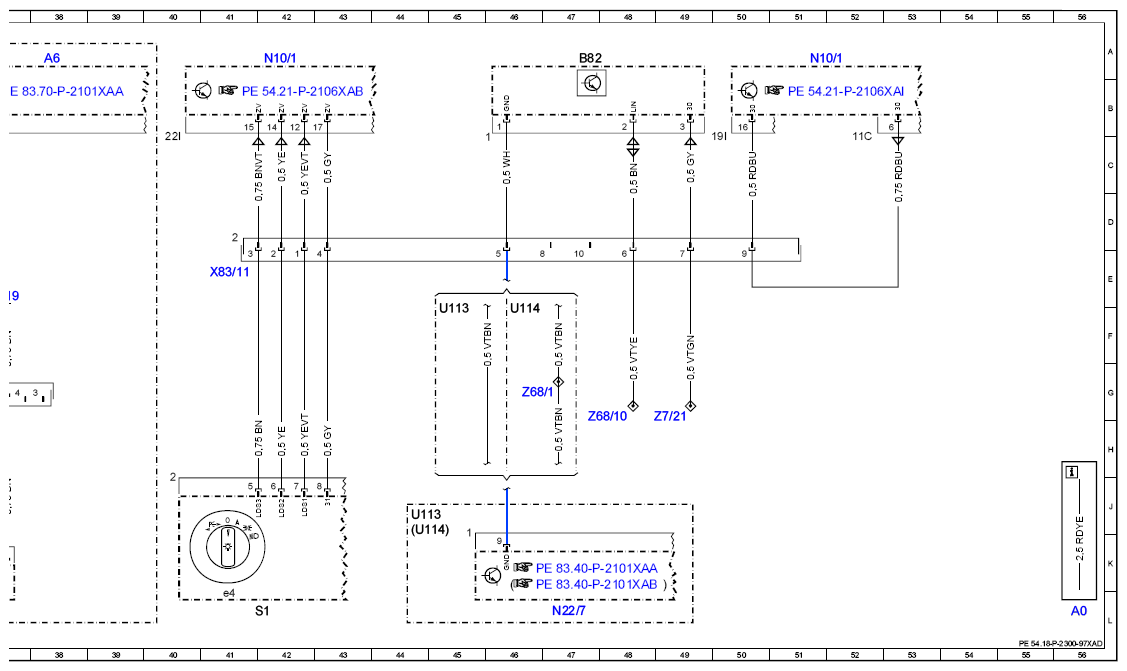

| A0 |
Color code key |
56L |
| A6 |
Stationary heater unit |
38A |
| B22/10 |
Right rear level sensor |
34L |
| B22/7 |
Left rear level sensor |
3L |
| B22/7 |
Left rear level sensor |
32L |
| B82 |
Vehicle interior humidity/temperature sensor |
47A |
| L6/1 |
Left front axle RPM sensor |
19L |
| L6/2 |
Right front axle RPM sensor |
12L |
| L6/3 |
Left rear axle RPM sensor |
13L |
| L6/4 |
Right rear axle RPM sensor |
17L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
9A |
| N10/1 |
Front SAM control unit with fuse and relay module |
42A |
| N10/1 |
Front SAM control unit with fuse and relay module |
51A |
| N22/7 |
Automatic air conditioning control and operating unit |
47L |
| N30/4 |
Electronic Stability Program control unit |
13A |
| N30/4 |
Electronic Stability Program control unit |
19A |
| N30/7 |
Premium Electronic Stability Program control unit |
13A |
| N30/7 |
Premium Electronic Stability Program control unit |
19A |
| N51/3 |
AIRMATIC control unit |
28A |
| N51/3 |
AIRMATIC control unit |
23A |
| N51/3 |
AIRMATIC control unit |
34A |
| S1 |
Exterior lights switch |
42L |
| S10/2 |
Right front brake wear sensor |
9L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
9K |
| S10/4 |
Right rear brake wear sensor |
6L |
| S10/4x1 |
Right rear brake wear sensor electrical connector |
5K |
| S1e4 |
Switch illumination |
|
| U11 |
Valid for 2-zone THERMATIC |
44J |
| U11 |
Valid for 2-zone THERMATIC |
45F |
| U11 |
Valid for 3-zone THERMOTRONIC |
44J |
| U11 |
Valid for 3-zone THERMOTRONIC |
46F |
| U501 |
Valid for xenon headlamps |
1E |
| U579 |
Valid for stationary heater |
35A |
| U836 |
Valid for AIRMATIC |
21A |
| U938 |
Valid for ESP Basic |
10A |
| U939 |
Valid for ESP Premium |
10A |
| W19 |
Right front seat crossmember ground point |
6E |
| W19 |
Right front seat crossmember ground point |
37E |
| W2 |
Right front ground point at lamp unit |
9E |
| X62/32 |
Rear axle electrical connector, left distributor |
28H |
| X62/32 |
Rear axle electrical connector, left distributor |
2H |
| X62/32 |
Rear axle electrical connector, left distributor |
13H |
| X62/32 |
Rear axle electrical connector, left distributor |
26H |
| X62/32 |
Rear axle electrical connector, left distributor |
31H |
| X62/33 |
Rear axle electrical connector, right distributor |
5H |
| X62/33 |
Rear axle electrical connector, right distributor |
16H |
| X62/33 |
Rear axle electrical connector, right distributor |
33H |
| X62/33 |
Rear axle electrical connector, right distributor |
36H |
| X62/6 |
Front axle electrical connector, right distributor |
8H |
| X62/6 |
Front axle electrical connector, right distributor |
24H |
| X62/7 |
Front axle electrical connector, left distributor |
19H |
| X62/7 |
Front axle electrical connector, left distributor |
22H |
| X83/11 |
Circuit 56 exterior lights switch electrical connector |
41E |
| Y23 |
Stationary heater fuel pump |
37L |
| Y51 |
Left front axle damping valve unit |
22L |
| Y52 |
Right front axle damping valve unit |
24L |
| Y53 |
Left rear axle damping valve unit |
26L |
| Y54 |
Right rear axle damping valve unit |
7L |
| Y54 |
Right rear axle damping valve unit |
29L |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
46G |
| Z68/10 |
Instrument panel LIN connector sleeve |
48G |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
49G |
