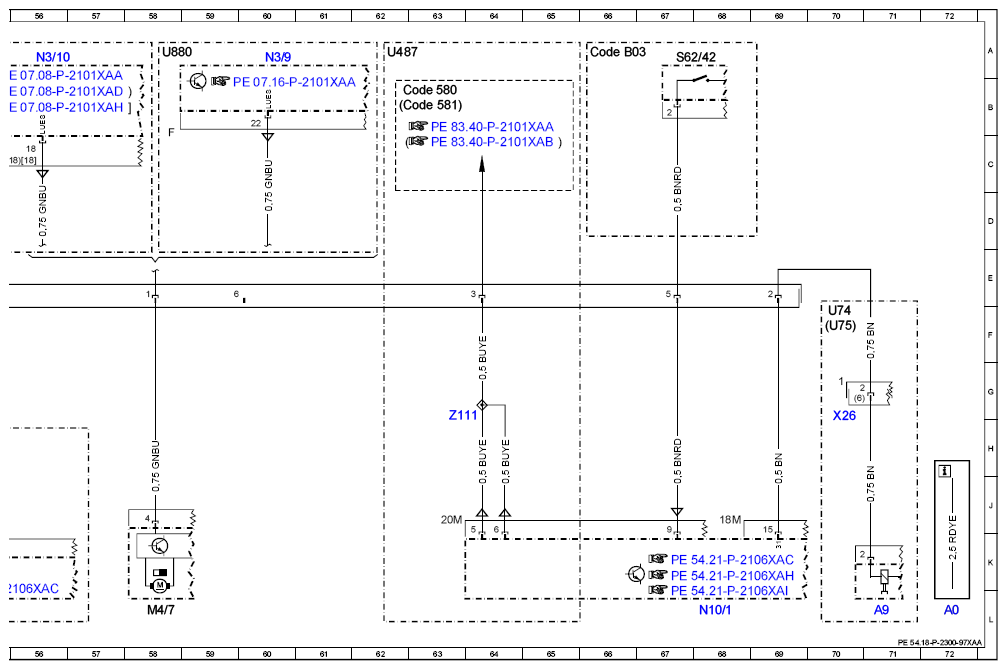

| A0 |
Color code key |
72L |

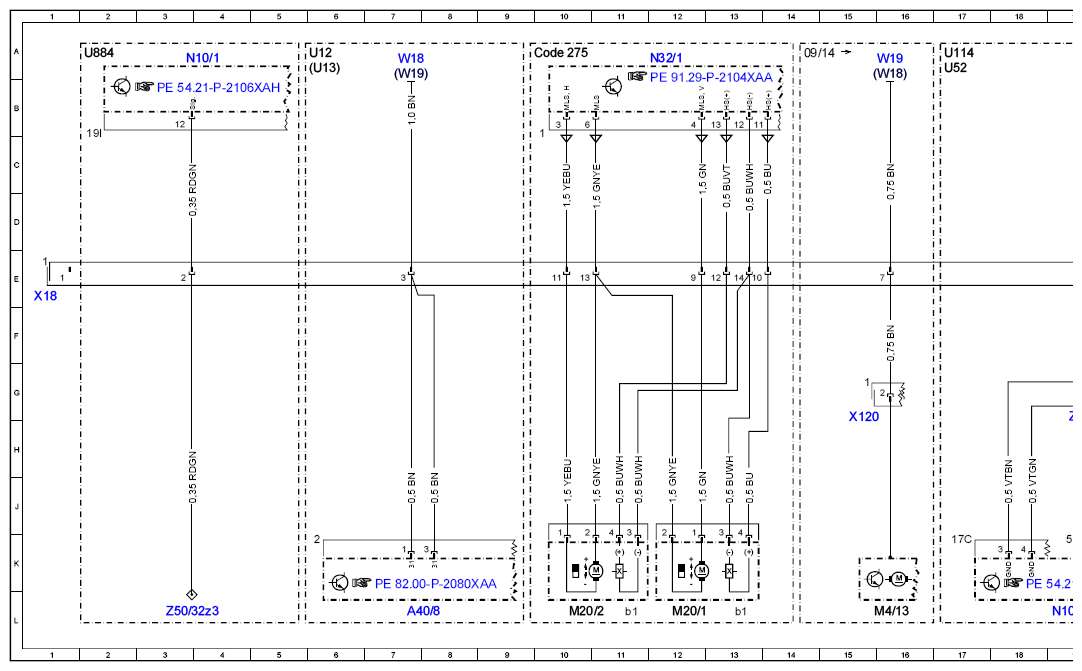

| A40/8 |
Audio/COMAND display |
7L |
| A9 |
Refrigerant compressor |
71L |

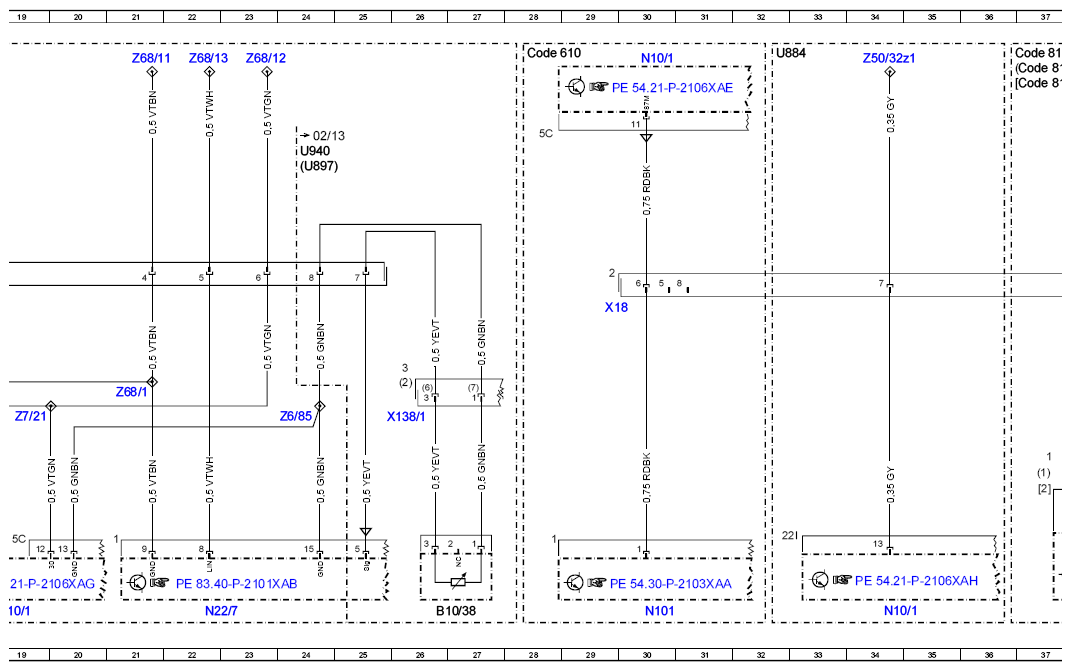

| B10/38 |
Rear footwell air outlet temperature sensor |
26L |
| Code 275 |
Memory package, electrically adjustable front seats |
9A |

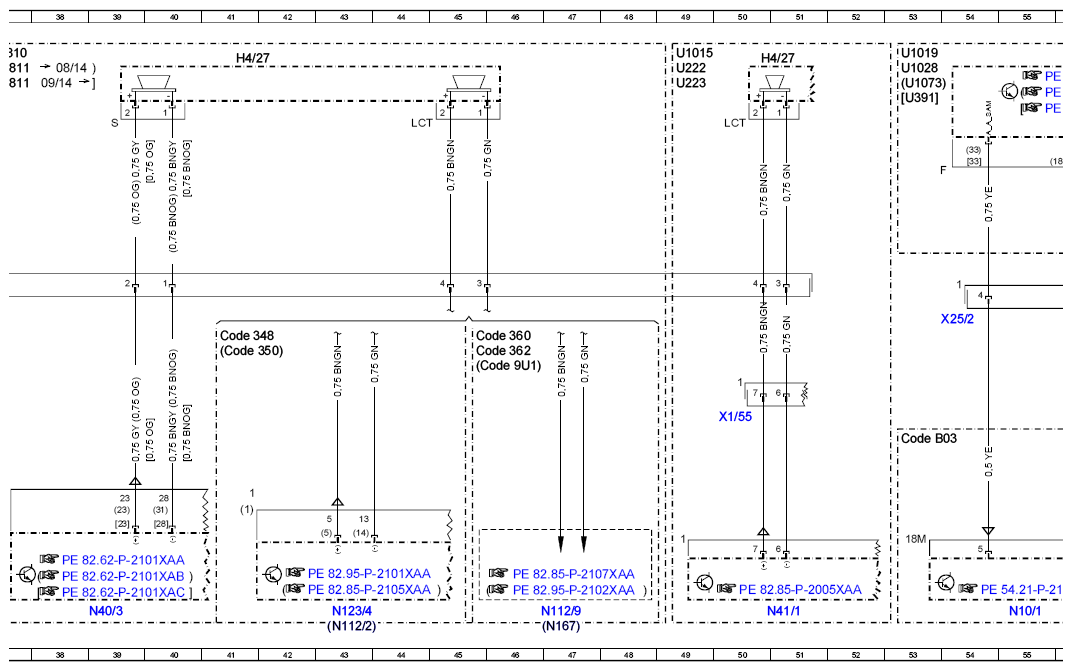

| Code 348 |
Emergency call/assistance system |
41F |
| Code 350 |
Ecall Europe emergency call system |
41F |
| Code 360 |
HERMES UMTS |
45F |
| Code 362 |
HERMES LTE |
45F |
| Code 580 |
Air conditioning |
62B |
| Code 581 |
Automatic air conditioning |
62B |
| Code 610 |
Night View Assist |
28A |
| Code 810 |
Sound system |
36A |
| Code 811 |
Extended sound system |
37A |
| Code 811 |
Extended sound system |
37B |
| Code 9U1 |
|
45G |
| Code B03 |
ECO start/stop function |
53H |
| Code B03 |
ECO start/stop function |
66A |
| H4/27 |
Center instrument panel speaker |
41A |
| H4/27 |
Center instrument panel speaker |
50A |
| M20/1 |
Steering column in/out adjustment motor |
12L |
| M20/1b1 |
Steering column in/out Hall sensor |
13L |
| M20/2 |
Steering column up/down adjustment motor |
10L |
| M20/2b1 |
Steering column up/down Hall sensor |
11L |
| M4/13 |
COMAND fan motor |
16L |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
58L |
| N10/1 |
Front SAM control unit with fuse and relay module |
19L |
| N10/1 |
Front SAM control unit with fuse and relay module |
34L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
30A |
| N10/1 |
Front SAM control unit with fuse and relay module |
55L |
| N10/1 |
Front SAM control unit with fuse and relay module |
68L |
| N101 |
Night vision assist control unit |
30L |
| N112/2 |
Telematics services communication module |
43L |
| N112/9 |
HERMES control unit |
47L |
| N123/4 |
Emergency call system control unit |
43L |
| N167 |
E-Call Russia (GLONASS) control unit |
47L |
| N22/7 |
Automatic air conditioning control and operating unit |
22L |
| N3/10 |
ME-SFI [ME] control unit |
56A |
| N3/9 |
CDI control unit |
60A |
| N32/1 |
Driver seat control unit |
12A |
| N40/3 |
Sound system amplifier control unit |
39L |
| N41/1 |
Navigation processor |
51L |
| S62/42 |
Right engine hood contact switch |
67A |
| U1015 |
Valid for electric steering lock |
49A |
| U1019 |
Valid for gasoline engine 278 |
53A |
| U1028 |
Valid for engine 157 |
53A |
| U107 |
Valid for gasoline engine 276.9 |
53B |
| U11 |
Valid for 3-zone THERMOTRONIC |
17A |
| U12 |
Valid for left-hand drive vehicles |
6A |
| U13 |
Valid for right-hand drive vehicles |
6A |
| U222 |
Valid for Korea |
49A |
| U223 |
Valid for external navigation |
49B |
| U39 |
Valid for gasoline engine 276.8 |
53B |
| U487 |
Valid for refrigerant compressor with magnetic clutch |
62A |
| U52 |
Valid for Japan |
17A |
| U74 |
Valid for diesel engines |
70F |
| U75 |
Valid for gasoline engines |
70F |
| U880 |
Valid for diesel engine 642 |
58A |
| U884 |
Valid for ambiance illumination |
2A |
| U884 |
Valid for ambiance illumination |
32A |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
24C |
| U940 |
Valid without DIRECT SELECT |
24C |
| W18 |
Left front seat crossmember ground point |
7A |
| W18 |
Left front seat crossmember ground point |
16A |
| W19 |
Right front seat crossmember ground point |
7A |
| W19 |
Right front seat crossmember ground point |
16A |
| X1/55 |
External navigation electrical connector |
50H |
| X120 |
Radio fan electrical connector |
15H |
| X138/1 |
Front center console electrical connector |
26H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
1E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
29F |
| X25/2 |
Engine compartment/interior electrical connector |
54F |
| X26 |
Interior and engine wiring harness electrical connector |
70H |
| Z111 |
Air conditioning connector sleeve 1 |
63G |
| Z50/32z1 |
Cockpit connector sleeve (fused), circuit 30 |
34A |
| Z50/32z3 |
Cockpit connector sleeve (fused), circuit 30 |
3L |
| Z6/85 |
Sensor ground connector sleeve |
24G |
| Z68//1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
21G |
| Z68/11 |
Rear air conditioning LIN bus ground line connector sleeve |
21A |
| Z68/12 |
Rear air conditioning LIN bus positive lead connector sleeve |
23A |
| Z68/13 |
Rear air conditioning LIN bus data line connector sleeve |
22A |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
19G |
