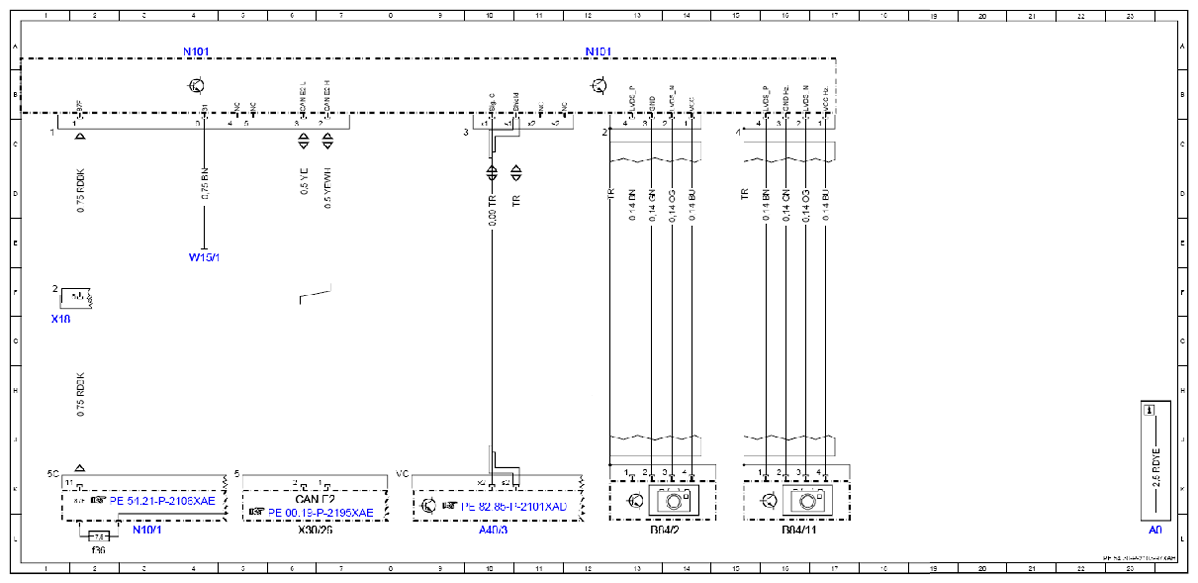

Wiring Diagram, Night View Assist Control Unit - PE54.30-P-2103-97XAB

Code:	Designation:	Position:
A0	Color code key	23L
A40/3	COMAND control unit	10L
B84/11		16L
B84/2	Night View Assist camera	13L
CAN E2	Chassis CAN 2	6K
N10/1	Front SAM control unit with fuse and relay module	3L
N10/1f36	Fuse 36
N101	Night vision assist control unit	12A
N101	Night vision assist control unit	4A
W15/1	Right footwell ground point	4E
X18	Vehicle interior and harness for taillamp electrical connector	1G
X30/26	Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector	6L
