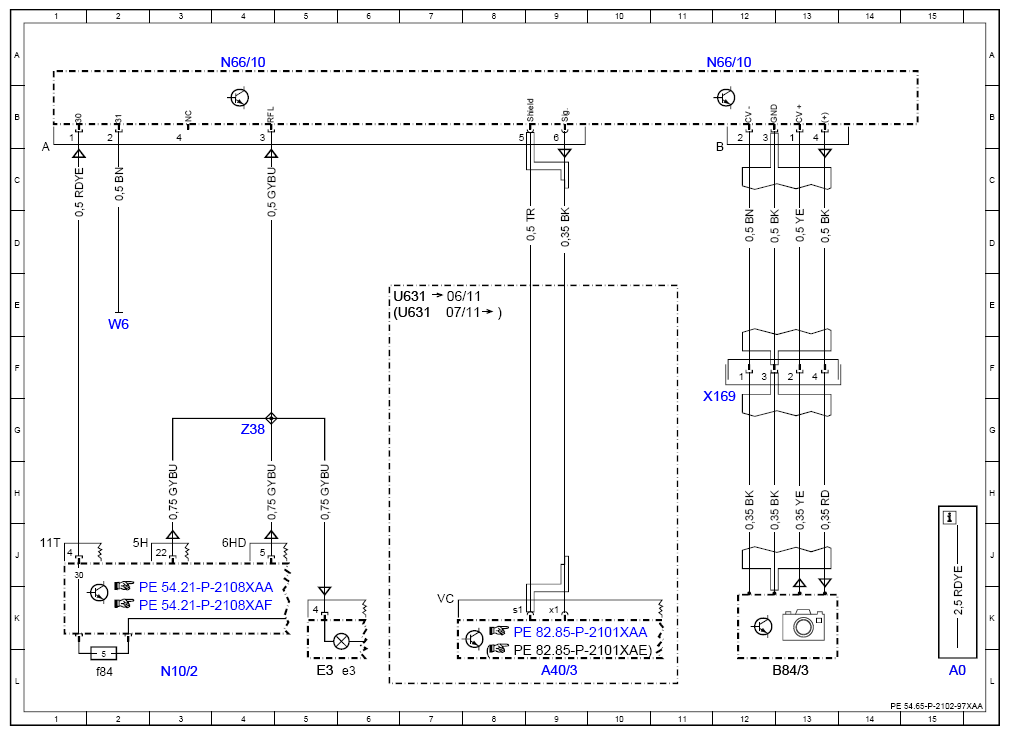

Wiring Diagram For Backup Camera Control Unit - PE54.65-P-2102-97XAA

Code:	Designation:	Position:
A0	Color code key	15L
A40/3	COMAND control unit	9L
B84/3	Backup camera	13L
E3	Left rear lamp unit	5L
E3e3	Left backup lamp	6L
N10/2	Rear SAM control unit with fuse and relay module	3L
N10/2f84	Fuse 84	2L
N66/10	Backup camera voltage supply module	4A
N66/10	Backup camera voltage supply module	12A
U631	Valid for COMAND	6E
U631	Valid for COMAND	6E
W6	Left rear wheel well ground point	2E
X169	Backup camera electrical connector	12G
Z38	Backup lamp connector sleeve	4G
