Remove/Install Sensors For Blind Spot Assist - AR54.71-P-0100EW
MODEL 212.0/1 as of 6/1/10
with CODE 237 (Active Blind Spot Assist)
MODEL 212.0/1, 218
with CODE 234 (Blind Spot Monitoring)
MODEL 218
with CODE 237 (Active Blind Spot Assist)

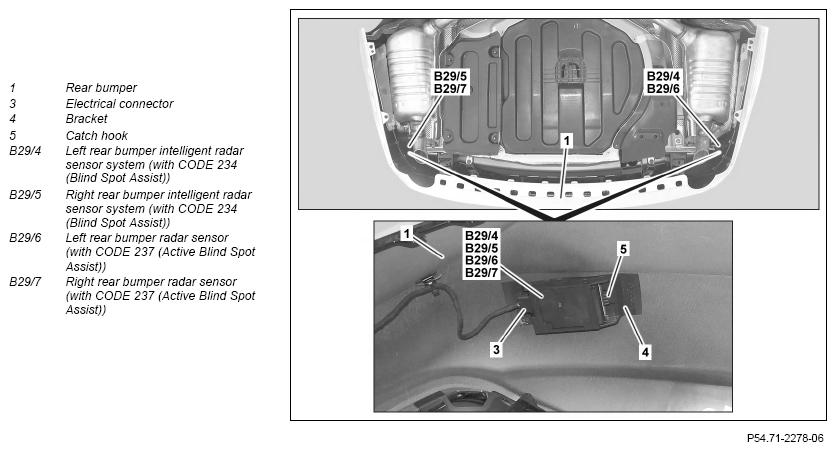

Shown on MODEL 212.0 as of year 2011

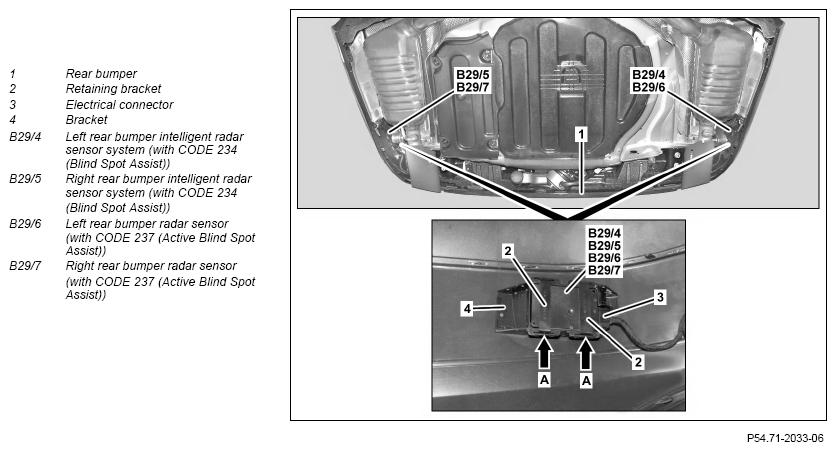

Shown on MODEL 218.3 up to model year 2015
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2.1 | Detach electrical connection (3) at left rear bumper radar sensor (B29/6) or right rear bumper radar sensor (B29/7) | Model 212.0/1 as of 6/1/10 with code 237 (Active Blind Spot Assist) Model 218 with code 237 (Active Blind Spot Assist) |
|
| 2.2 | Detach electrical connection (3) at left rear bumper intelligent radar sensor (B29/4) or right rear bumper intelligent radar sensor (B29/5) | Model 212.0/1 with code 234 (Blind Spot Monitoring) Model 218 with code 234 (Blind Spot Monitoring) |
|
| 3 | Unclip the lower retaining bar (2) (arrows A) on the bracket (4) or release catch hook (5) | ||
| 4.1 | Remove left rear bumper radar sensor (B29/6) or right rear bumper radar sensor (B29/7) from bracket (4) | Model 212.0/1 as of 6/1/10 with code 237 (Active Blind Spot Assist) Model 218 with code 237 (Active Blind Spot Assist) |
|
| 4.2 | Remove left rear bumper intelligent radar sensor (B29/4) or right rear bumper intelligent radar sensor (B29/5) from bracket (4) | Model 212.0/1 with code 234 (Blind Spot Monitoring) Model 218 with code 234 (Blind Spot Monitoring) |
|
| 5 | Install in the reverse order | ||
| 6 | Perform commissioning using the diagnostic system | ||
| AD00.00-P-2000-04A |
