Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006CW
MODEL 204, 207, 212, 218
with CODE 220 (PARKTRONIC)
MODEL 207, 212
with CODE 230 (Advanced Parking Guidance)
MODEL 218
with CODE 235 (Active Parking Assist with PARKTRONIC)
Shown on MODEL 204.0

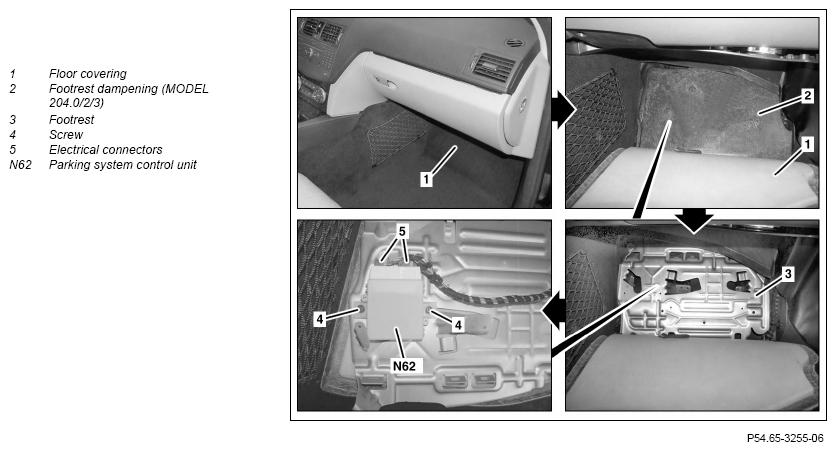

Fig 1: Parktronic System (Pts) Control Unit Components Location - Model 204, 207, 212, 218 With Code 220, 230, 235
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of parking system control unit (N62) | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | Model 204, 207, 212, 218 with code 220 (PARKTRONIC) except code 889 (KEYLESS-GO) Model 207, 212 with code 230 (Advanced Parking Guidance) except code 889 (KEYLESS-GO) Model 218 with code 235 (Active Parking Assist with PARKTRONIC) except code 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | Model 204, 207, 212, 218 with code 220 (PARKTRONIC) with code 889 (KEYLESS-GO) Model 207, 212 with code 230 (Advanced Parking Guidance) with code 889 (KEYLESS-GO) Model 218 with code 235 (Active Parking Assist with PARKTRONIC) with code 889 (KEYLESS-GO) |
|
| 3 | Fold back floor covering (1) in passenger footwell | ||
| 4 | Remove footrest damping material (2) | Model 204.0/2/3 with code 220 (PARKTRONIC) | |
| 5 | Detach footrest (3) and fold back | ||
| 6 | Remove bolts (4) | ||
| 7 | Disconnect electrical connectors (5) | ||
| 8 | Detach parking system control unit (N62) from footrest (3) | ||
| 9 | Install in the reverse order |
