Remove/Install Night View Assist Control Unit - AR54.30-P-3000SX
MODEL 212, 216, 218, 221
with CODE 610 (Night view assist)

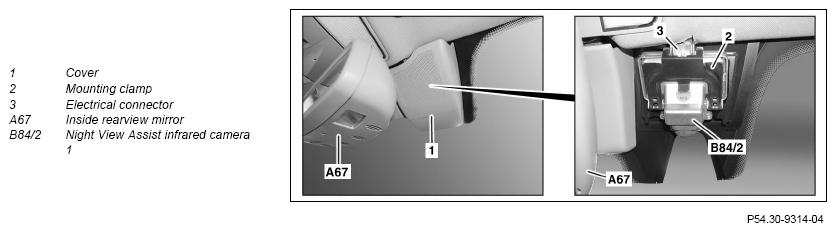

Shown on MODEL 221
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Unclip cover (1) and remove | ||
| 3 | Remove splinter protection | Model 212 with code 610 (Night view assist) with code Z04 (Light armoring) | |
| *BA63.20-P-1004-01B | |||
| 4 | Unclip mounting clip (2) and swing in downward direction | ||
| 5 | Remove Night View Assist infrared camera 1 (B84/2) and disconnect electrical connection (3) | The lens of Night View Assist infrared camera 1 (B84/2) must not be touched. Otherwise dirt can cause Night View Assist infrared camera 1 (B84/2) to malfunction. |
|
| 6 | Install in the reverse order | ||
| 7 | Calibrate Night View Assist infrared camera 1 (B84/2) using diagnostic system | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| AD00.00-P-2000-04A |
COLUMNS
| Number | Designation | Model 212 with code Z04 (Light armoring) | |
|---|---|---|---|
| BA63.20-P-1004-01B | Nut/bolt, splinter guard to rain/light sensor guard plate | Nm | 12 |
