Remove/Install Additional Battery - AR54.10-P-0007EW
MODEL 212
without CODE B03 (ECO start/stop function)
without CODE ME04 (Mild hybrid drive)
MODEL 218.### 1#
with CODE 4U7 (Start/stop voltage dip protector)
with CODE B03 (ECO start/stop function)
MODEL 218
without CODE B03 (ECO start/stop function)
Shown on model 212
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| Remove/install | |||
| 1.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 212, 218 except CODE 889 (KEYLESS-GO) | |
| 1.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 212, 218 with CODE 889 (KEYLESS-GO) | |

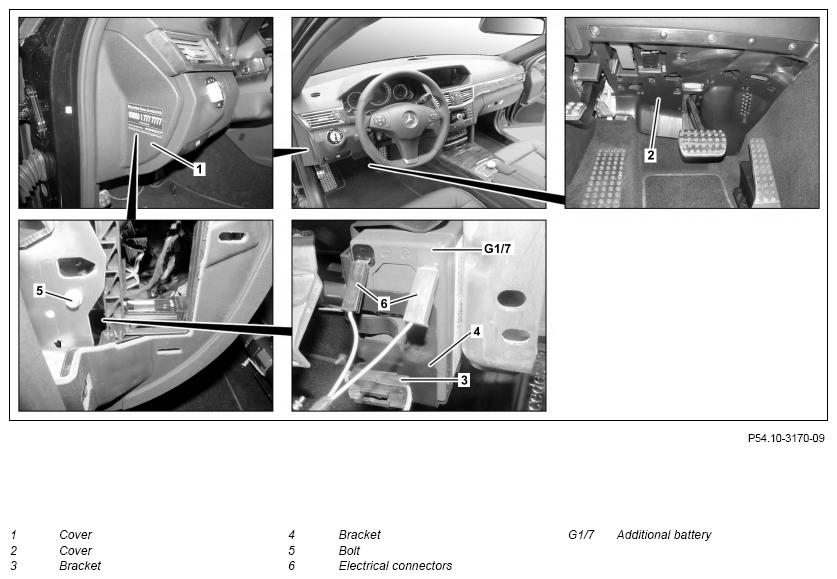

| 2 | Remove cover (1) | Fig 2 | |
| 3 | Remove cover (2) below instrument panel on left | ||
| 4 | Remove bracket (3) from bracket (4) and place to one side with electrical lines connected | ||
| 5 | Detach electrical connections (6) from additional battery (G1/7) | ||
| 6 | Remove screw (5) | ||
| 7 | Remove bracket (4) with additional battery (G1/7) downwards | ||
| 8 | Remove additional battery (G1/7) from bracket (4) | When replacing additional battery (G1/7). | |
| 9 | Install in the reverse order |
