Remove/Install Additional Battery - AR54.10-P-0007ES

MODEL 212

with CODE B03 (ECO start/stop function)

with CODE ME04 (Mild hybrid drive)

MODEL 218

with CODE B03 (ECO start/stop function)

except CODE 4U7 (Start/stop voltage dip protector)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 212.0

Shown on MODEL 212.035

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
	Remove/install
1	Switch off all electrical consumers	All electrical consumers must be switched off. Otherwise, they may be damaged when the ground line (4) is connected/disconnected.
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)

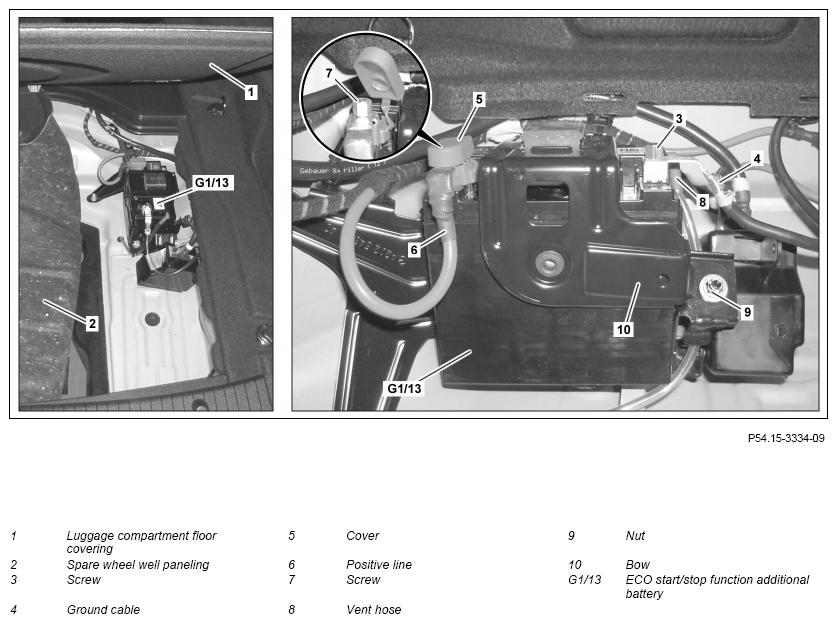

3.1	Open luggage compartment floor cover (1)	Model 212.0 (except 212.035), 212.1 with code B03 (ECO start/stop function) Model 212.0/1 with code ME04 (Mild hybrid drive) Model 218.3 with code B03 (ECO start/stop function) except code 4U7 (Start/stop voltage dip protector)
3.2	Open rear cargo area floor	Model 212.2 with code B03 (ECO start/stop function) Model 212.2 with code ME04 (Mild hybrid drive) Model 218.9 with code B03 (ECO start/stop function) except code 4U7 (Start/stop voltage dip protector)
3.3	Remove side paneling in left side of luggage compartment	Model 212.035 with code B03 (ECO start/stop function)	AR68.30-P-4600EW
4	Remove vehicle tool kit holder	Model 212.0 with code B03 (ECO start/stop function) except code 669 (Spare tire on steel rim) except code 690 (Collapsible spare wheel) Model 212.0 with code ME04 (Mild hybrid drive) except code 669 (Spare tire on steel rim) except code 690 (Collapsible spare wheel)
5.1	Detach spare wheel well paneling (2) far enough to gain access to the additional battery for the ECO start/stop function (G1/13)	Model 212.0 (except 212.035), 212.1 with code B03 (ECO start/stop function) Model 212 with code ME04 (Mild hybrid drive) Model 218.3 with code B03 (ECO start/stop function) except code 4U7 (Start/stop voltage dip protector) except code 669 (Spare tire on steel rim) except code 690 (Collapsible spare wheel)
5.2	Remove covering for additional battery for ECO start/stop function (G1/13)	Model 212.2 with code B03 (ECO start/stop function) Model 212.2 with code ME04 (Mild hybrid drive) Model 218.9 with code B03 (ECO start/stop function) except code 4U7 (Start/stop voltage dip protector)
6	Remove bolt (3) and detach ground line (4) from ECO start/stop function additional battery (G1/13)	Model 212 with code B03 (ECO start/stop function) Model 212 with code ME04 (Mild hybrid drive) Model 218 with code B03 (ECO start/stop function) except code 4U7 (Start/stop voltage dip protector) Screw/bolt, battery cable to battery terminal on additional battery	*BA54.10-P-1004-01F
7	Remove cover (5) from positive line (6)
8	Use a diode test lamp to check the on-board electrical system for voltage between the positive line (6) and a suitable ground point	If the diode test lamp lights up, the on-board electrical system is still active because of a defect in the electrical system. In this case ↓ Disconnect ground line from on-board electrical system battery. : Clear defect on electrical system.	AR54.10-P-0003EW
9	Remove bolt (7) and detach positive line (6)	Model 212 with code B03 (ECO start/stop function) Model 212 with code ME04 (Mild hybrid drive) Model 218 with code B03 (ECO start/stop function) except code 4U7 (Start/stop voltage dip protector) Screw/bolt, battery cable to battery terminal on additional battery	*BA54.10-P-1004-01F
10	Unscrew nut (9) of bracket (10)
11	Swivel bracket (10) upwards

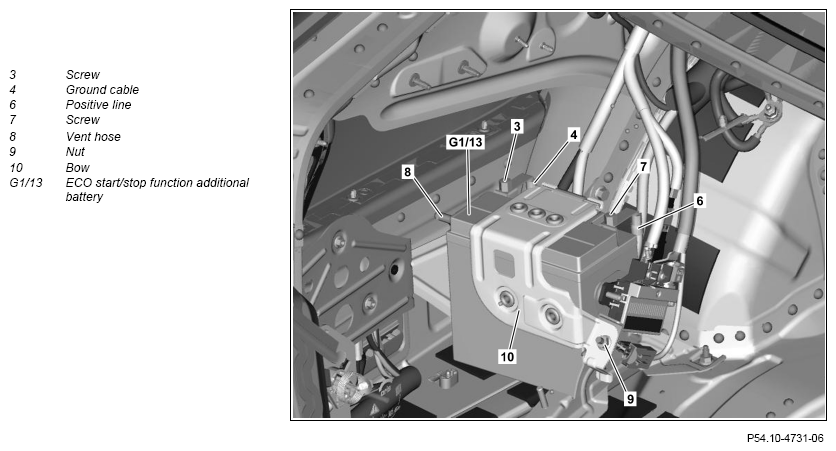

12	Detach vent hose (8) from additional battery for ECO start/stop function (G1/13)	: Check bleed hose (8) is correctly seated on additional battery for ECO start/stop function (G1/13). Otherwise, emitted battery vapor may damage surrounding components.
13	Remove additional battery for ECO start/stop function (G1/13) from the battery carrier
14	Install in the reverse order
