Remove/Install Additional Battery Relay - AR54.15-P-2000EW
MODEL 207, 212
with CODE B03 (ECO start/stop function)
MODEL 212
with CODE ME04 (Mild hybrid drive)
with CODE B03 (ECO start/stop function)
CODE 411 (6-speed manual TRANSMISSION)
MODEL 218
with CODE B03 (ECO start/stop function)
without CODE 4U7 (Start/stop voltage dip protector)
MODEL 212.0/2
with CODE B03 (ECO start/stop function)
CODE U42 (BlueTEC diesel exhaust treatment (SCR))
CODE 411 (6-speed manual TRANSMISSION)
with CODE B03 (ECO start/stop function)
CODE 421 (9G-TRONIC) or CODE 427 (7G-TRONIC)
shown on MODEL 218.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery | AR54.10-P-0003EW | |
| 2 | Detach ground line from additional battery for ECO start/stop function (G113) | MODEL 207 with CODE B03 (ECO start/stop function) |
AR54.10-P-0007EC |
| MODEL 212 with CODE B03 (ECO start/stop function) MODEL 212 with CODE ME04 (Mild hybrid drive) MODEL 218 with CODE B03 (ECO start/stop function) without CODE 4U7 (Start/stop voltage dip protector) |
AR54.10-P-0007EC AR54.10-P-0007ES | ||

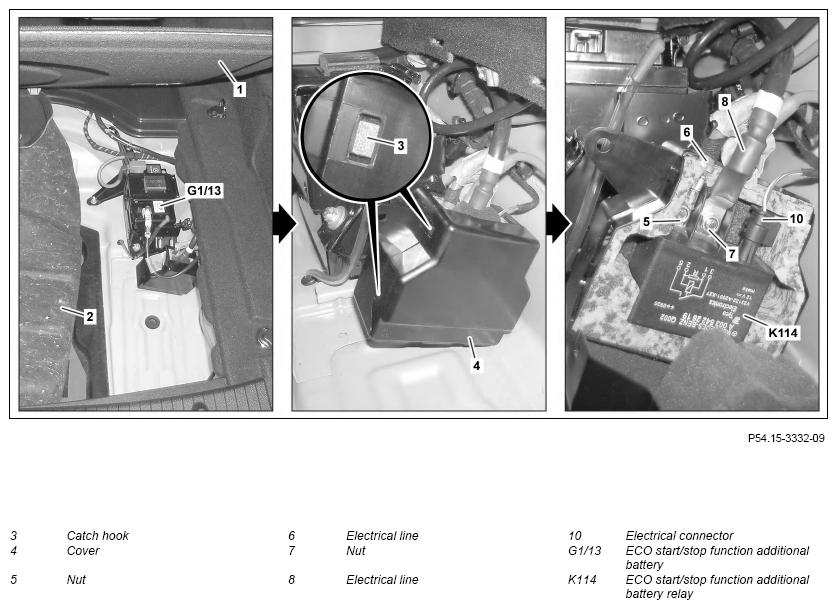

| 3 | Unlock catch hook (3) and open cover (4) | MODEL 212 with CODE 411 (6-speed manual transmission) with CODE B03 (ECO start/stop function) |
|
| 4 | Remove relay for additional battery of ECO start/stop function (K114) from foam material | MODEL 212 with CODE 411 (6-speed manual transmission) with CODE B03 (ECO start/stop function) |
|
| 5 | Unscrew nut (5) and remove electrical line (6) | ||
| 6.1 | Unscrew nuts (7) and detach electrical line (8) | MODEL 212 with CODE 411 (6-speed manual transmission) with CODE B03 (ECO start/stop function) |
|
| 6.2 | Unscrew nut (7) and detach electrical lines (8, 9) | MODEL 212.0/2 with CODE 411 (6-speed manual transmission) with CODE B03 (ECO start/stop function) with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) MODEL 212.0/2 with CODE 421 (9G-TRONIC) with CODE B03 (ECO start/stop function) MODEL 212.0/2 with CODE 427 (7G-TRONIC) with CODE B03 (ECO start/stop function) MODEL 212 with CODE ME04 (Mild hybrid drive) MODEL 218 with CODE B03 (ECO start/stop function) without CODE 4U7 (Start/stop voltage dip protector) |
|
| 7 | Disconnect electrical connector (10) | ||

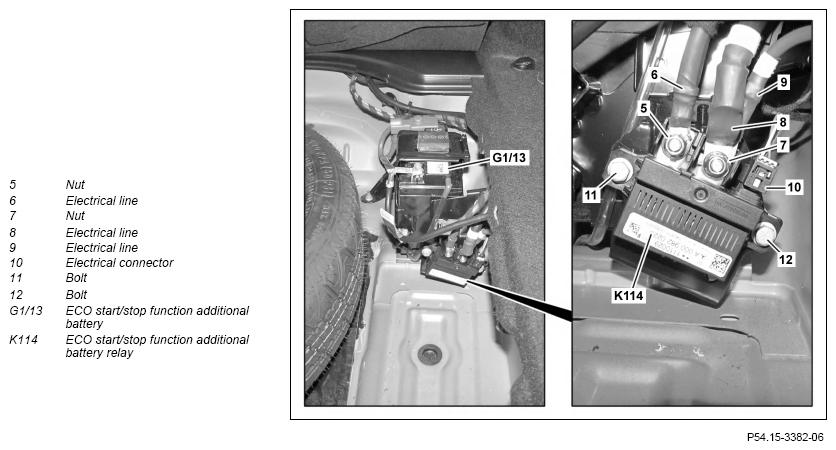

| 8 | Remove bolts (11, 12) from relay for ECO start/stop function additional battery (K114) | MODEL 212.0/2 with CODE 411 (6-speed manual transmission) with CODE B03 (ECO start/stop function) with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) MODEL 212.0/2 with CODE 421 (9G-TRONIC) with CODE B03 (ECO start/stop function) MODEL 212.0/2 with CODE 427 (7G-TRONIC) with CODE B03 (ECO start/stop function) MODEL 212 with CODE B03 (ECO start/stop function) with CODE ME04 (Mild hybrid drive) MODEL 218 with CODE B03 (ECO start/stop function) without CODE 4U7 (Start/stop voltage dip protector) |
|
| 9 | Remove ECO start/stop function additional battery relay (K114) | ||
| 10 | Install in the reverse order |
