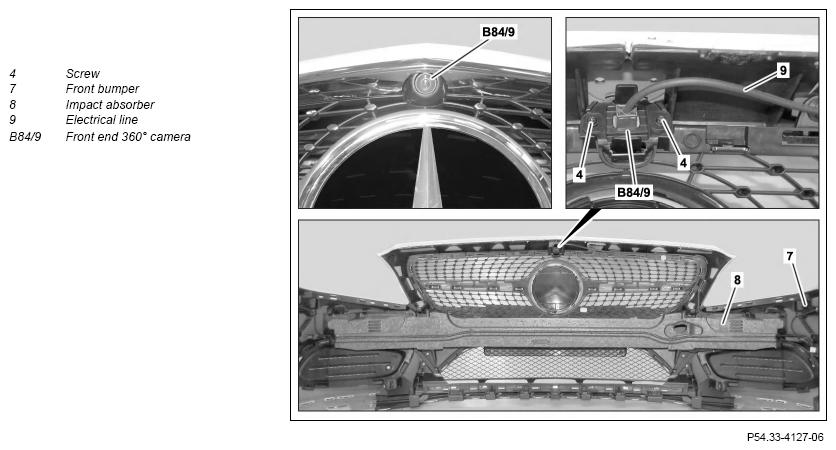

Remove/Install 360° Front Camera - AR54.30-P-3001EL
MODEL 218
as of year 2015
with CODE 501 (360° camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove front bumper (7) | AR88.20-P-2000EL | |
| 3 | Remove impact absorber (8) from front bumper (7) General information on the impact absorber |
AH88.20-P-1000-01A | |
| 4 | Remove electrical line (9) for front 360° camera system camera (B84/9) from front bumper (7) | ||
| 5 | Remove screws (4) | ||
| 6 | Remove front 360° camera (B84/9) from radiator trim | ||
| 7 | Install in the reverse order | ||
| 8 | Commission front 360° camera (B84/9) using the diagnostic system | If the front 360° camera (B84/9) was replaced. | |
| AD00.00-P-2000-04A | |||
| 9 | Calibrate front 360° camera (B84/9) using the diagnostic system | ||
| AD00.00-P-2000-04A |
