Remove/Install 360° Camera In Outside Mirror - AR54.30-P-3002ECM
MODEL 204.9
with CODE 501 (360° camera)
MODEL 207 as of 6/1/13
as of year 2014
with CODE 501 (360° camera)
MODEL 212
as of year 2014
with CODE 501 (360° camera)
MODEL 218
as of year 2015
with CODE 501 (360° camera)

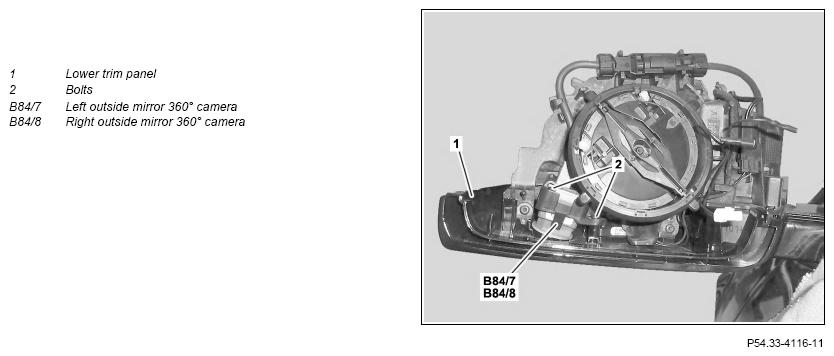

Shown on left outside mirror
MODIFICATION NOTES
| 21.08.2015 | Commissioning of left outside mirror 360° camera or right outside mirror 360° camera using diagnostic system added. | Operation step 4 |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove bottom paneling (1) | AR88.70-P-9040CY | |
| 2 | Remove bolts (2) and remove left outside mirror 360° camera (B84/7) or right outside mirror 360° camera (B84/8) from lower trim (1) | ||
| 3 | Install in the reverse order | ||
| 4 | Commission left outside mirror 360° camera (B84/7) or right outside mirror 360° camera (B84/8) using diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) or the camera for the right outside mirror 360° camera (B84/8) was replaced. | |
| AD00.00-P-2000-04A | |||
| 5.1 | Calibrate camera for left outside mirror 360° camera (B84/7) or camera for right outside mirror 360° camera (B84/8) using diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) or the camera for the right outside mirror 360° camera (B84/8) was removed. | |
| AD00.00-P-2000-04A | |||
| 5.2 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) and the camera for the right outside mirror 360° camera (B84/8) were removed. | |
| AD00.00-P-2000-04A |
