Remove/Install 360° Camera Control Unit - AR54.30-P-3004EWM
MODEL 212
as of year 2014
with CODE 501 (360° camera)
MODEL 218
as of year 2015
with CODE 501 (360° camera)
Shown on MODEL 212.1
Shown on MODEL 218.9
MODIFICATION NOTES
| 26.08.2015 | "Perform initial startup of 360° camera control unit (N148) using the diagnostic system" added. | Operation step 13 | |
| 26.08.2015 | "Calibrate all cameras of the 360° camera system using the diagnostic system" added. | Operation step 14 |
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and commission 360° camera control unit (N148) | Model 212 If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | Model 212, Model 218 except code 889 (KEYLESS-GO) |
|
| 2.2 | Switch off ignition and remove KEYLESS-GO start/stop button from electronic ignition lock control unit | Model 212, Model 218 with code 889 (KEYLESS-GO) |
|
| 3.1 | Remove right luggage compartment lining (1) | Model 212.0/1, Model 218.3 Model 212.0/1 |
AR68.30-P-4600EW |
| MODEL 218.3 | AR68.30-P-4600EL | ||
| 3.2 | Remove paneling on right side in load compartment | Model 212.2 | AR68.30-P-1180ES |

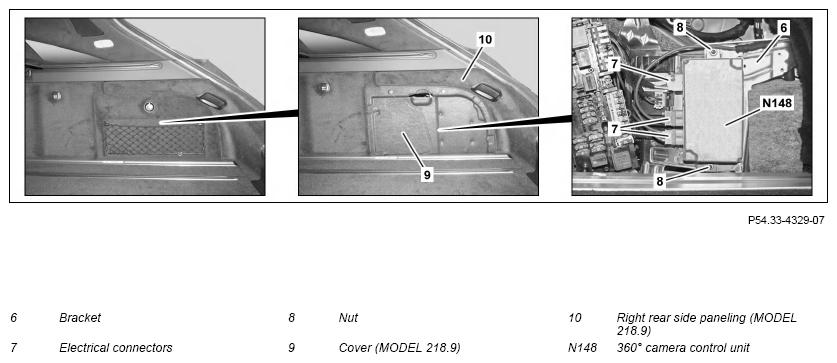

| 3.3 | Remove cover (9) from right rear side paneling (10) | Model 218.9 | AR68.30-P-1180ELX |
| 4 | Remove retaining clips of soundproofing under the paneling at the right side in the load compartment and fold soundproofing to one side | Model 212.2 | |

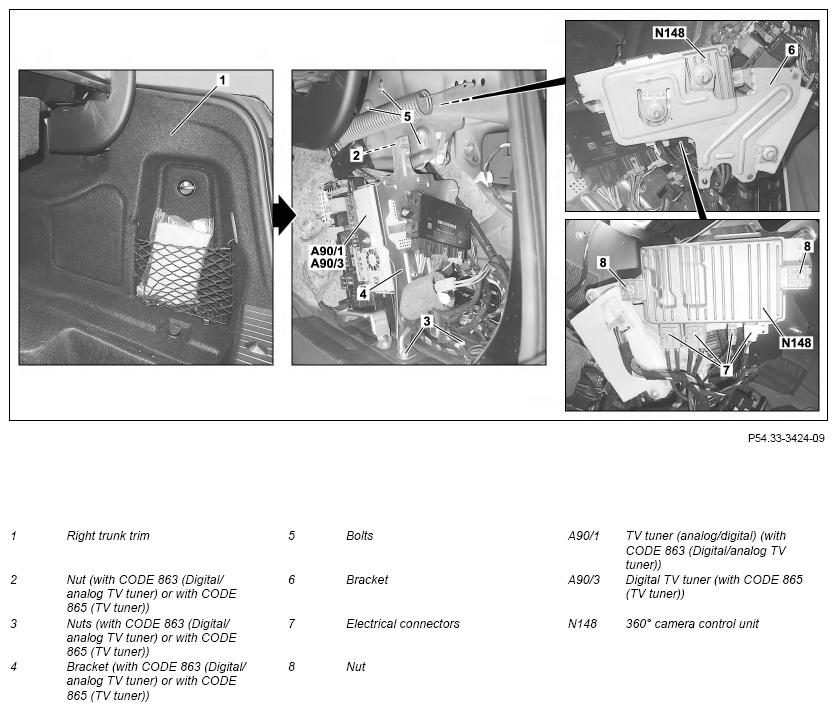

| Fig 1 | |||
| 5 | Loosen nut (2) on top on holder (4) | Model 212.0/1 with code 863 (Digital/analog TV tuner) or with code 865 (TV tuner) | |
| 6 | Unscrew nuts (3) from bottom of bracket (4) | Model 212.0/1 with code 863 (Digital/analog TV tuner) or with code 865 (TV tuner) | |
| 7 | Remove bracket (4) with TV tuner (analog/digital) (A90/1) or with TV digital tuner (A90/3) and place to one side with attached electrical lines | Model 212.0/1 with code 863 (Digital/analog TV tuner) or with code 865 (TV tuner) | |
| 8 | Loosen bolts (5) | MODEL 212 | |
| 9 | Remove bracket (6) with 360° camera control unit (N148) downwards | MODEL 212 Carefully remove bracket (6) with 360° camera control unit (N148) downwards. Otherwise, lines or surrounding components may be damaged. |
|
| 10 | Unscrew nuts (8) and remove 360° camera control unit (N148) from holder (6) | ||
| 11 | Disconnect electrical connectors (7) | ||
| 12 | Install in the reverse order | ||
| 13 | Perform initial startup of 360° camera control unit (N148) using the diagnostic system | Model 218 If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04A | |||
| 14 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04A |
