Remove/Install 12V Socket Of Rear Center Console - AR54.10-P-1004EW

MODEL 204.9

MODEL 212

MODEL 218

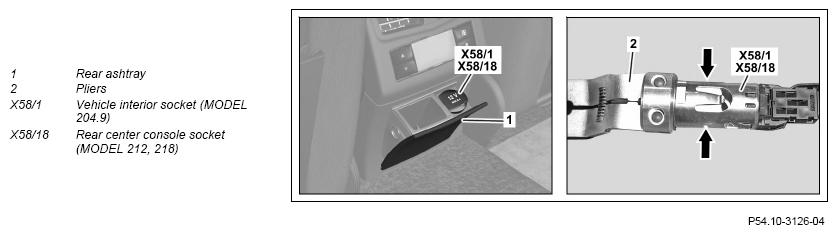

Shown on MODEL 212

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Switch off ignition and remove transmitter key from electronic ignition lock control unit	MODEL 204.9 without CODE 889 (KEYLESS-GO) MODEL 212 without CODE 889 (KEYLESS-GO) MODEL 218 without CODE 889 (KEYLESS-GO)
1.2	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	MODEL 204.9 with CODE 889 (KEYLESS-GO) MODEL 212 with CODE 889 (KEYLESS-GO) MODEL 218 with CODE 889 (KEYLESS-GO)
2	Remove rear ashtray (1)	MODEL 212
3	Open front stowage compartment in rear center console	MODEL 218
4	Open flap on rear center console socket (X58/18) or vehicle interior socket (X58/1)
5	Release and pull out rear center console socket (X58/18) or vehicle interior socket (X58/1) using pliers (2)	The studs on the pliers (2) must engage in the cutouts in the housing of the rear center console socket (X58/18) or vehicle interior socket (X58/1) (arrows). Pliers	Figure
6	Disconnect electrical connector on rear center console socket (X58/18) or vehicle interior socket (X58/1)
7	Install in the reverse order

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
