Remove/Install 12V Socket At Front Of Vehicle Interior - AR54.10-P-1003EW
MODEL 172.4, 218
MODEL 204.9
as of year 2013
MODEL 212
with CODE 279 (Electronic gear selector)
MODEL 204.9 as of year 2013

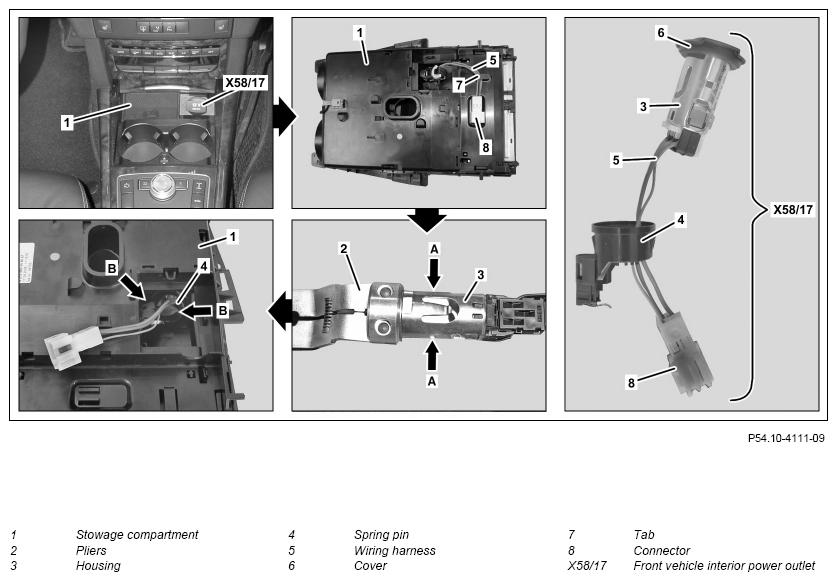

Fig 1: 12V Socket At Front Of Vehicle Interior Components Location - Model 172.4, 218, 204.9, 212 Code 279
Shown on MODEL 212
| Remove/install | |||
| 1 | Remove cover for center console | MODEL 172.4 | AR68.20-P-2000W |
| 2 | Remove storage compartment (1) | MODEL 172.4, 218 MODEL 204.9 as of model year 2013 MODEL 212 with CODE 279 (Electronic gear selector) |
|
| 3 | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) | AR68.20-P-2420EW | |
| MODEL 218 | AR68.20-P-2420EL | ||

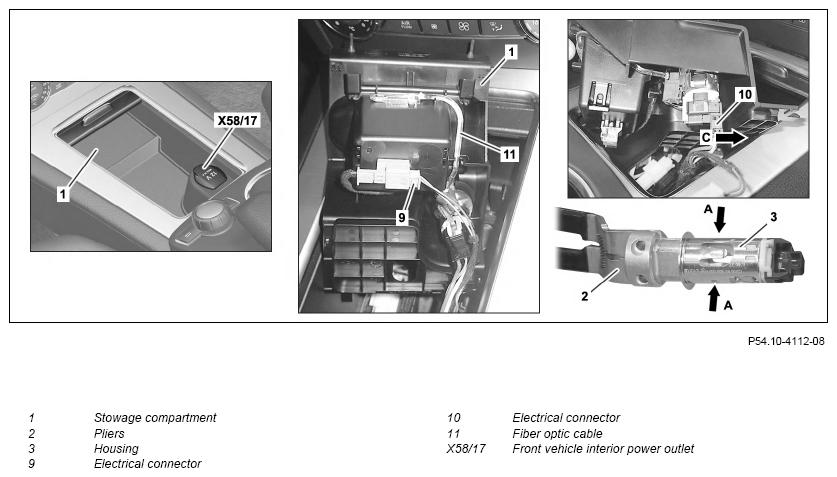

| Disconnect electrical connector (9) | MODEL 204.9 as of model year 2013 | ||
| 4 | Detach electrical connection (10) in direction of arrow (arrow C) | MODEL 204.9 as of model year 2013 | |
| 5 | Detach connector (8) on stowage compartment (1) and unhook associated wiring harness (5) from the clip (7) | MODEL 172.4, 218 MODEL 212 with CODE 279 (Electronic gear selector) |
|
| 6 | Open cover on stowage compartment (1) | MODEL 172.4, 218 MODEL 212 with CODE 279 (Electronic gear selector) |
|
| 7 | Open the cover (6) | ||
| 8 | Insert pliers (2) into the housing (3) and pull the housing (3) approx. 5 cm out of the spring pin (4) | Figure | |
| 9 | Unclip optical fiber (11) on stowage compartment (1) | MODEL 204.9 as of model year 2013 | |
| 10 | Unclip spring pin (4) from stowage compartment (1) by pushing back catch hook (arrows B) and remove front vehicle interior socket (X58/17) together with housing (3) and spring pin (4) | ||
| 11 | Install in the reverse order |
