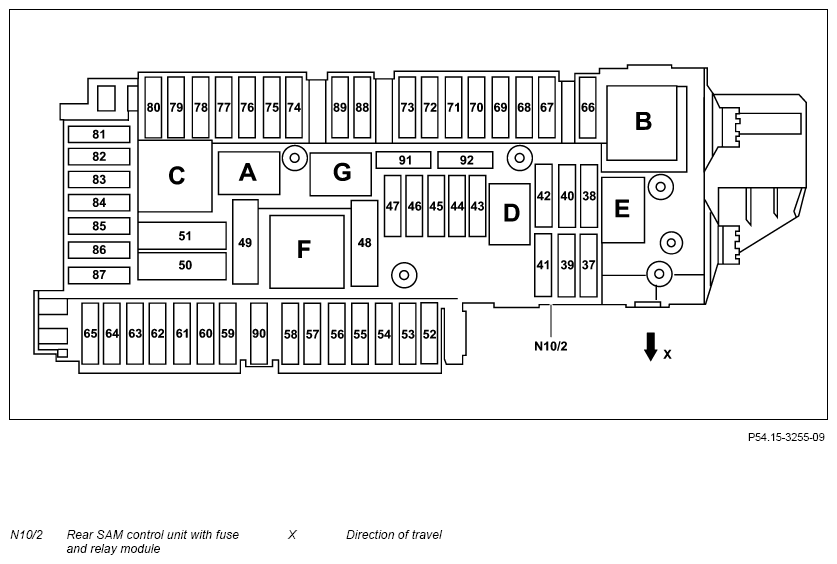

Relay Assignment Of Fuse And Relay Box In Trunk - GF54.15-P-1257-04FQ
MODEL 218
| Relay Identification | Designation |
|---|---|
| A | Circuit 15 relay (N10/2kA) |
| B | Circuit 15R relay (1) (N10/2kB) |
| C | Heated rear window relay (N10/2kC) |
| D | Valid for diesel engine: Fuel pump relay (N10/2kD) |
| E | Valid for model 218.9: Liftgate windshield wiper relay (N10/2kE) |
| F | Valid without CODE 275 (Electrically adjustable front seats memory package): Seat adjustment relay (N10/2kF) |
| G | Circuit 15R relay (2) (N10/2kG) |
