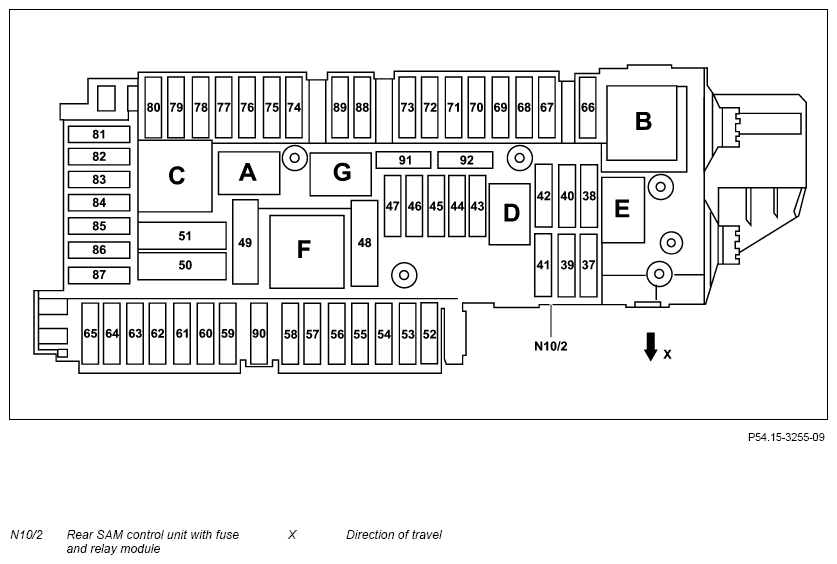

Fuse Assignment Of Fuse And Relay Box In Trunk - GF54.15-P-1256-06FQ
MODEL 218
| Fuse Identification | Clamping device | Line ID (line fused) | Fused function | Rating in amperes (A) |
|---|---|---|---|---|
| f37 | 15R | 0.75 YERD | Driver seat NECK-PRO head restraint solenoid (Y24/12) | 7.5 |
| 0.75 OGRD | Front passenger seat NECK-PRO head restraint solenoid (Y24/13) | |||
| f38 | 30g | 1.5 BKGY | Valid for model 218.9: Connected through liftgate windshield wiper relay (N10/2kE): Tailgate wiper motor (M6/4) |
15 |
| f39 | 30 | 2.5 RDBK | Valid for left-hand drive vehicles: Left rear door control unit (N69/3) |
30 |
| 2.5 RDBK | Valid for right-hand drive vehicles: Left front door control unit (N69/1) |
|||
| f40 | 30g | - | Spare | - |
| f41 | 30 | 2.5 RDWH | Valid for left-hand drive vehicles: Right front door control unit (N69/2) |
30 |
| 2.5 RDWH | Valid for right-hand drive vehicles: Right rear door control unit (N69/4) |
|||
| f42 | 30 | 4.0 RDWH | Fuel system control unit (N118) | 25 |
| f43 | 30g | 0.5 RDBK | Valid up to 31.08.2014 with code B54 (Live Traffic Information): Telematics services communications module (N112/2) |
7.5 |
| 0.5 RDBK | Valid as of 01.09.2014 with code 475 (Tire pressure monitor) and without code 494 (USA version): Tire pressure monitor control unit (N88) |
|||
| f44 | 87 | 2.5 BKYE | Valid without code 275 (Memory package): Front passenger seat adjustment switch (S23/1) |
30 |
| f45 | 87 | 2.5 BKRD | Valid without code 275 (Memory package): Driver seat adjustment switch (S22/1) |
30 |
| f46 | 30 | 0.75 RDYE | Valid for model 218.3: FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) |
7.5 |
| 0.5 RDYE | Valid for model 218.9: Rear window antenna amplifier 1 (A2/71) |
|||
| 0.75 RDWH | Valid for code 882 (Interior monitoring): Alarm siren (H3/1) |
|||
| 1.0 RD | Valid with engine 157, 276, 278 and code 494 (USA version): Coolant circulation pump relay (K60) |
|||
| 0.35 BK | Valid for code 882 (Interior monitoring): Interior protection and tow-away protection control unit (N26/6) |
|||
| f47 | 30g | - | Spare | - |
| f48 | 30g | - | Spare | - |
| f49 | 30g | 4.0 BK | Valid for model 218.3: Switched through the rear window heater relay (N10/2kC): Rear window heater (R1) |
40 |
| 2.5 BK | Valid for model 218.9: Switched through the rear window heater relay (N10/2kC): Rear window antenna amplifier 1 (A2/71) |
|||
| f50 | 30g | 4.0 RDYE | Right front reversible emergency tensioning retractor (A76/1) | 50 |
| f51 | 30g | 4.0 RDWH | Left front reversible emergency tensioning retractor (A76) | 50 |
| f52 | - | - | Spare | - |
| f53 | 54 | 0.75 BKRD | Valid for CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
30 |
| f54 | 15 | 0.75 BKYE | Valid for CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
15 |
| f55 | 15 | - | Spare | - |
| f56 | 15 | 1.5 RDWH | Valid for CODE 550 (Trailer hitch): Trailer socket (X58) |
15 |
| f57 | 30g | 2.5 RDBU | Valid for CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
25 |
| f58 | 30g | 2.5 RDGN | Valid for CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
25 |
| f59 | 15 | 0.75 BKYE | Valid for code 233 (DISTRONIC PLUS): Left front bumper DISTRONIC (DTR) sensor (B29/2) Right front bumper DISTRONIC (DTR) sensor (B29/3) |
7.5 |
| 0.75 BKYE | Valid for code 237 (Active Blind Spot Assist): Left rear bumper radar sensor (B29/6) Right rear bumper radar sensor (B29/7) |
|||
| 0.75 RDBK | Valid for code 234 (Blind Spot Assist): Left rear bumper intelligent radar sensor (B29/4) Intelligent radar sensor for right rear bumper (B29/5) |
|||
| f60 | 30g | 0.75 RDWH | Valid for CODE 409 (Left/right front multicontour seats): Multicontour seat pneumatic pump (M40) |
7.5 |
| 4.0 RDWH | Valid for code 432 (Left and right dynamic multicontour seat): Active multicontour seat pneumatic pump (M40/1) |
30 | ||
| f61 | 30g | 4.0 RD | Valid for model 218.3 with code 881 (Remote trunk closing): Trunk lid control (KDS) control unit (N121) |
40 |
| 4.0 RD | Valid for model 218.9: Liftgate control unit (N121/1) |
|||
| f62 | 30g | 4.0 RDYE | Valid for code 275 (Memory package): Driver seat control unit (N32/1) |
25 |
| f63 | 30g | 2.5 RDBK | Valid for CODE 872 (Seat heater in rear): Rear seat heater control unit (N25/6) |
25 |
| f64 | 30g | 4.0 RDWH | Valid for code 275 (Memory package): Front passenger seat control unit (N32/2) |
25 |
| f65 | 30g | 0.75 RD | Valid for code 443 (Steering wheel heater) up to 31.05.2012: Steering wheel heater control unit (N25/7) |
7.5 |
| 1.0 RDBK | Valid for code 443 (Steering wheel heater) as of 01.06.2012: Steering column tube module control unit (N80) |
|||
| f66 | 30 | 0.5 RDGN | Valid for CODE 581 (Automatic air conditioning): Rear blower motor (M2/1) |
7.5 |
| f67 | 30g | 4.0 RDBK | Valid for code 810 (Sound system): Sound system amplifier control unit (N40/3) |
40 |
| 6.0 RDBK | Valid for code 811 (Advanced sound system): Sound system amplifier control unit (N40/3) |
|||
| f68 | 30g | 1.5 RDWH | Valid for code 489 (AIRMATIC) or code 488 (Steel/air suspension): AIRMATIC control unit (N51/3) |
15 |
| f69 | 30g | 2.5 RDGY | Valid for code 810 (Sound system) or code 811 (Advanced sound system): Rear bass speaker amplifier (N40/9) |
25 |
| f70 | 30g | 0.5 RDWH | Valid for code 475 (Tire pressure monitor) and code 494 (USA version): Tire pressure monitor control unit (N88) |
5 |
| 0.5 RDWH | Valid as of 01.09.2014 with engine 157, 276, 278 without code 494 (USA version): Coolant circulation pump relay (K60) |
|||
| f71 | 15R | 1.5 BKGN | Vehicle interior socket, front (X58/17) | 15 |
| f72 | 15R | 1.5 RDBU | Cargo area socket (X58/4) | 15 |
| f73 | 30 | 0.5 RDGN | Valid with engine 157: Transmission mode control unit (N145) |
5 |
| 0.5 RDGN | Valid with CODE 228 (Stationary heater): Stationary heater radio remote control receiver (A6/1) |
|||
| f74 | 30 | 1.5 RDYE | Valid for code 889 (KEYLESS-GO): KEYLESS-GO control unit (N69/5) |
15 |
| 2.5 RD | Valid as of 01.09.2014: Left front lamp unit (E1) Right front lamp unit (E2) |
|||
| f75 | 30 | 2.5 RDYE | Valid with CODE 228 (Stationary heater): Stationary heater unit (A6) |
20 |
| 2.5 BKRD | Valid as of 01.09.2014: Left front lamp unit (E1) Right front lamp unit (E2) |
|||
| f76 | 15R | 1.5 RDYE | Rear center console socket (X58/18) | 15 |
| f77 | 30g | 0.75 RDYE | Valid for code U10 (Automatic front passenger airbag shutoff): Weight sensing system (WSS) control unit (N110) |
7.5 |
| 0.5 RDGN | Valid for code 355 (Preinstallation for navigation system retrofit): Navigation processor (N41/1) |
|||
| f78 | 30g | 0.75 RD | Valid for code 518 (Media interface): Media interface control unit (N125/1) |
7.5 |
| f79 | 30g | 0.5 RDYE | Valid up to 31.08.2014 with code 233 (DISTRONIC PLUS), code 237 (Active Blind Spot Assist) or code 238 (Active Lane Keeping Assist): Video and radar sensor system control unit (N62/2) |
5 |
| 0.75 RD | Valid as of 01.09.2014 with code 23P (Driving assistance package Plus): Radar sensors control unit (N62/1) Chassis gateway control unit (N93/7) |
|||
| f80 | 30g | 0.5 RDYE | Valid for code 235 (Active Parking Assist) or code 220 (PARKTRONIC): Parking system control unit (N62) |
5 |
| f81 | 30g | 0.5 RDGN | Valid for code 386 (Comfort telephony): Cellular telephone system antenna amplifier/compensator (A28/3) Mobile phone electrical connector (X39/37) |
5 |
| f82 | 30g | 0.75 RD | Valid for code 401 (Seat climate control for driver and front passenger): Left front seat ventilation blower regulator (N29/5) Right front seat ventilation blower regulator (N29/6) |
7.5 |
| f83 | 15R | 0.5 PKGN | Valid for code 218 (Reversing camera): Reversing camera (B84/3) |
7.5 |
| 0.5 PKGN | Valid for CODE 498 (Japan version): Electronic Toll Collection control unit (A50/3) |
|||
| 0.5 PKGN | Valid for code 355 (Preinstallation for navigation system retrofit): Navigation processor (N41/1) |
|||
| 0.75 PKGN | Valid for code 348 (Emergency call/assist system) or code 359 (TELEAID emergency call system): Emergency call system control unit (N123/4) |
|||
| f84 | 30 | 0.5 RDYE | Valid for model 218.3 with code 218 (Reversing camera) and code 498 (Japan version): Reversing camera control unit (N66/2) |
5 |
| 0.5 RDYE | Valid for model 218.3 with code 218 (Reversing camera) without code 498 (Japan version): Reversing camera power supply module (N66/10) |
|||
| 0.5 RDBU | Valid for model 218.9 with code 218 (Reversing camera): Reversing camera (B84/3) |
|||
| 0.5 RDYE | Valid for code 536 (SIRIUS satellite radio): SDAR/high definition tuner control unit (N87/8) |
|||
| 0.5 RDYE | Valid for code 537 (Digital radio (DAB)): Digital Audio Broadcasting control unit (N87/3) |
|||
| f85 | 30g | 0.75 RDWH | Valid for code 863 (Digital/analog TV tuner): TV tuner (analog/digital) (A90/1) |
7.5 |
| 0.75 RDWH | Valid for code 865 (TV tuner): Digital TV tuner (A90/3) |
|||
| f86 | 30g | - | Spare | - |
| f87 | 30 | 0.75 RDBK | Valid for code 348 (Emergency call/assist system) or code 359 (TELEAID emergency call system): Emergency call system control unit (N123/4) |
7.5 |
| 1.0 RD | Valid up to 31.08.2014 with engine 157, 276, 278 without code 494 (USA version): Coolant circulation pump relay (K60) |
|||
| 0.75 RDBK | Valid to 31.05.2016 with code B54 (Live Traffic Information) or code 350 (eCall Europe emergency call system): Telematics services communications module (N112/2) |
|||
| 2.5 RDBK | Valid as of 01.06.2016 with code 360 (HERMES UMTS) or code 362 (HERMES LTE): HERMES control unit (N112/9) |
|||
| 0.5 RD | Valid as from 01.06.2016 with code 386 (Comfort telephony) and code B24 (Remote control for stationary heater): Antenna changeover switch for telephone and stationary heater (A2/155) |
|||
| f88 | 30 | 2.5 RDBU | Intelligent servo module for DIRECT SELECT (A80) | 15 |
| f89 | 30 | 2.5 VTRD | Valid for CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
30 |
| 2.5 RD | Valid with engine 157: Fuel system control unit (N118) |
|||
| f90 | 30g | - | Spare | - |
| f91 | 30g | - | Spare | - |
| f92 | 30g | 1.0 RDWH | Valid for code 889 (KEYLESS-GO): KEYLESS-GO control unit (N69/5) |
15 |
