Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800FQ
MODEL 218

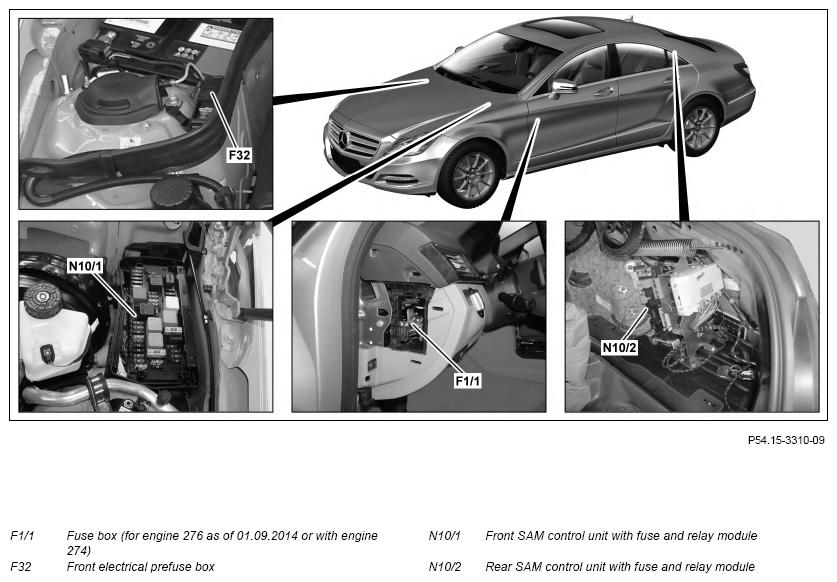

Shows model 218.3
The fuse box (for engine 276 as of 01.09.2014 or with engine 274) includes a 5 A fuse, which protects the connection between the additional battery (G1/7) and the electronic ignition lock control unit (N73) and the front SAM control unit.

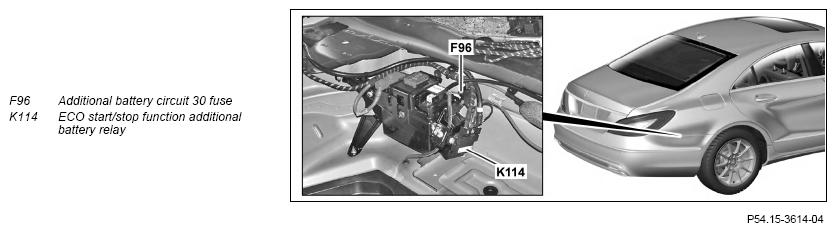

For CODE (B03) ECO start/stop function or with engine 276 up to 31.08.2014, shown on model 218.3
The additional battery circuit 30 fuse protects the connection between the front SAM control unit and the ECO start/stop function additional battery relay with 7.5 A.

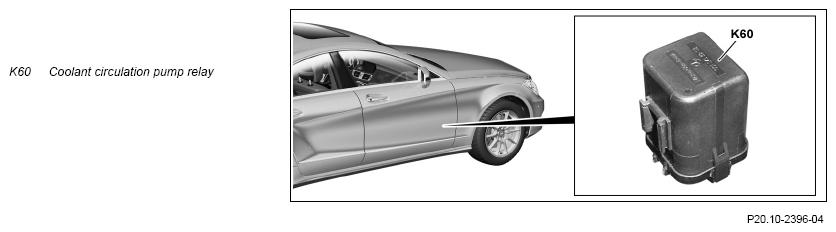

With engine 157, 276, 278

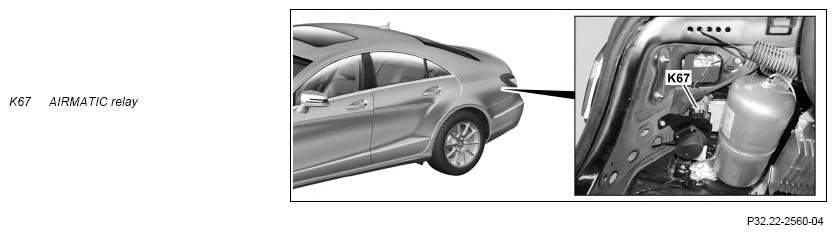

With code (489) AIRMATIC (air suspension with continuous adjustment damping) or code (488) Steel/air suspension
| Fuse assignment of front prefuse box | F32 | GF54.15-P-1256-07FQ | |
| Fuse assignment of fuse and relay box in left engine compartment | N10/1 | GF54.15-P-1256-03FQ | |
| Relay assignment of fuse and relay box in left side of engine compartment | N10/1 | GF54.15-P-1257-03FQ | |
| Fuse assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1256-06FQ | |
| Relay assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1257-04FQ |
