Remove/install front panoramic glass roof - AR77.21-P-0500NKA
MODEL 117, 156, 176 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 205 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 222 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 253 with CODE 413 (Automatic panoramic sliding sunroof)
Shown on MODEL 176
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||

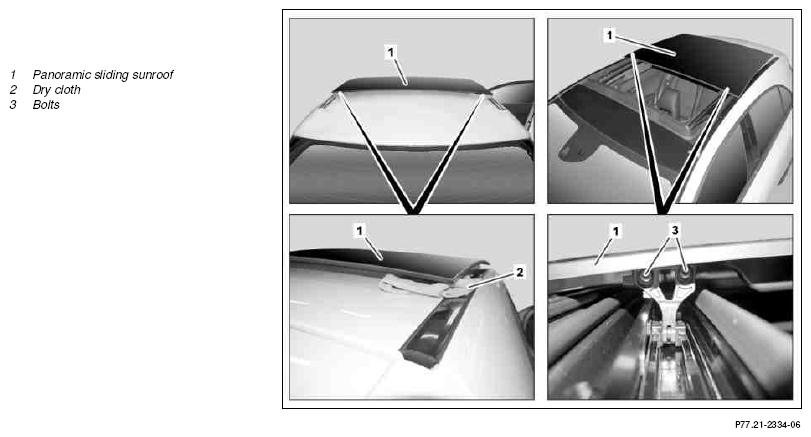

| 1 | Completely open panorama sliding roof (1) | ||
| 2 | Place one dry cloth (2) each below panoramic sliding roof (1) on rear right and left | ||
| 3 | Remove bolts (3) | ||
| 4 | Push panoramic sliding roof (1) toward front out of rear mounts with aid of helper and remove | ||
| Install | |||
| 5 | Insert panoramic sliding roof (1) into rear mount with aid of helper, place down at front and screw in bolts (3) to stop | ||
| 6 | Remove dry cloth (2) | ||
| 7 | Completely close panoramic sliding roof (1) | ||
| 8 | Adjust panoramic sliding roof (1) | AR77.21-P-0501NKA |
