Remove/install paneling on rear center section - AR68.30-P-4785NKC
MODEL 117
MODIFICATION NOTES
| 09.05.2016 | Load compartment floor must not be removed. | Operation step 1 | |
| 09.05.2016 | New operation step added | Operation step 2 |

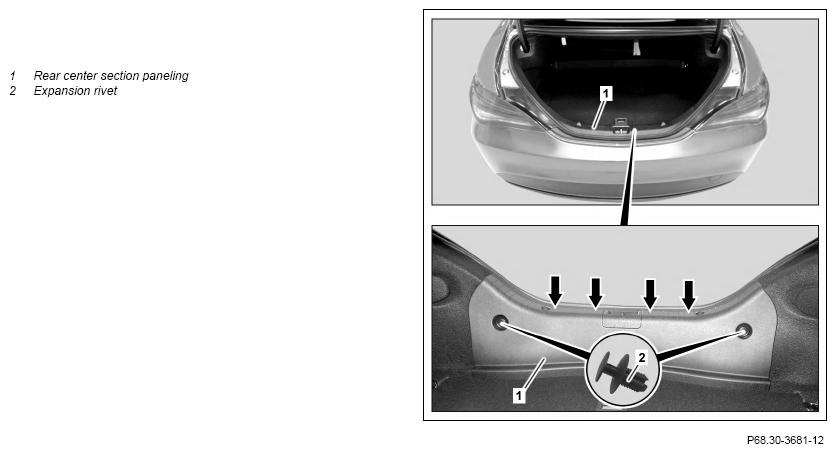

Shown on model 117.3

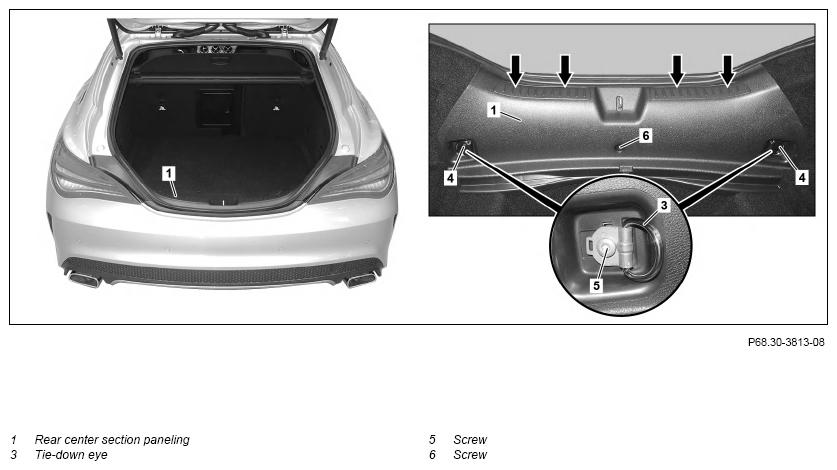

Shown on model 117.9
| Remove/install | |||
| 1 | Lift load compartment floor and hook into sealing frame | ||
| 2 | Loosen seal in area of rear center section paneling (1) | ||
| 3 | Remove expansion rivets (2) | ||
| 4 | Unclip covers (4) | Model 117.9 | |
| 5 | Unscrew bolts (5) and remove tie-down eye (3) | Model 117.9 | |
| 6 | Remove bolt (6) | Model 117.9 | |
| 7 | Unclip rear center section paneling (1) in area of retaining clips (arrows) and remove | Fig 3 | |
| 8 | Install in the reverse order |
