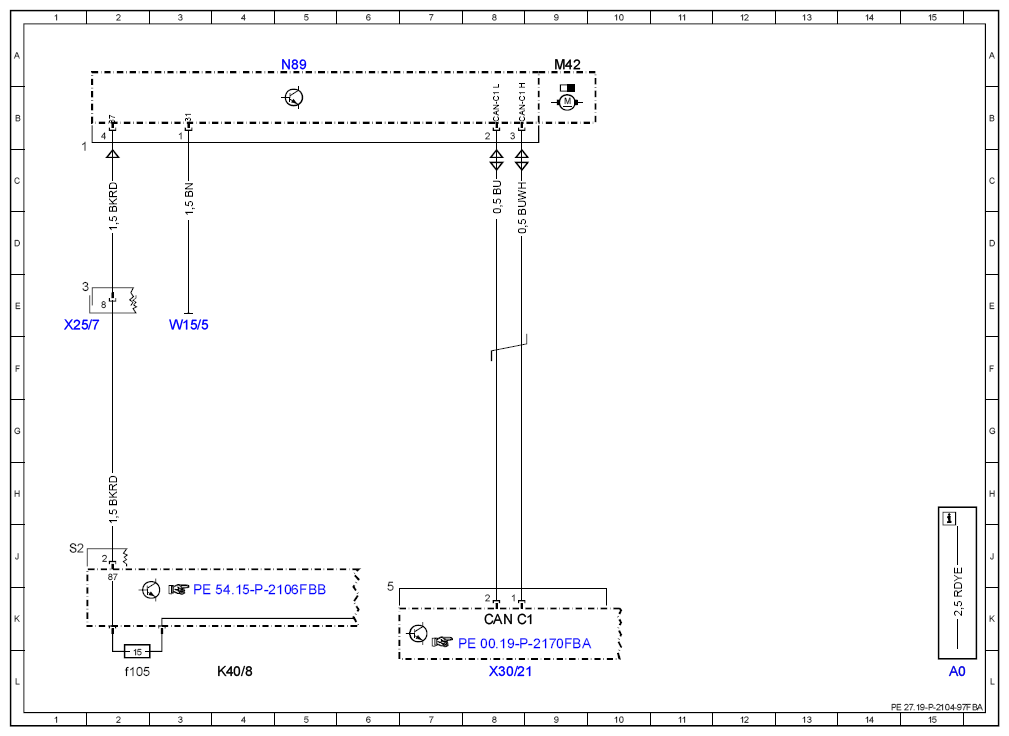

Wiring Diagram For Transmission Oil Auxiliary Pump Control Unit - PE27.19-P-2104-97FBA
Transmission 722.9 in model 205 up to model year 2019 with code 427 (7G-TRONIC)
Control unit N89
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| CAN C1 | Drive train CAN | 8K |
| K40/8 | Engine fuse and relay module | 4L |
| K40/8f105 | Fuse 105 | 2L |
| M42 | Electric auxiliary oil pump | 9A |
| N89 | Transmission oil auxiliary oil pump control unit | 5A |
| W15/5 | Left front footwell ground point | 3E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 1E |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 8L |
