Test Log For Insulation Resistance Measurement, Form - OF27.19-P-3000-01A

Transmission 724.2, 725.0

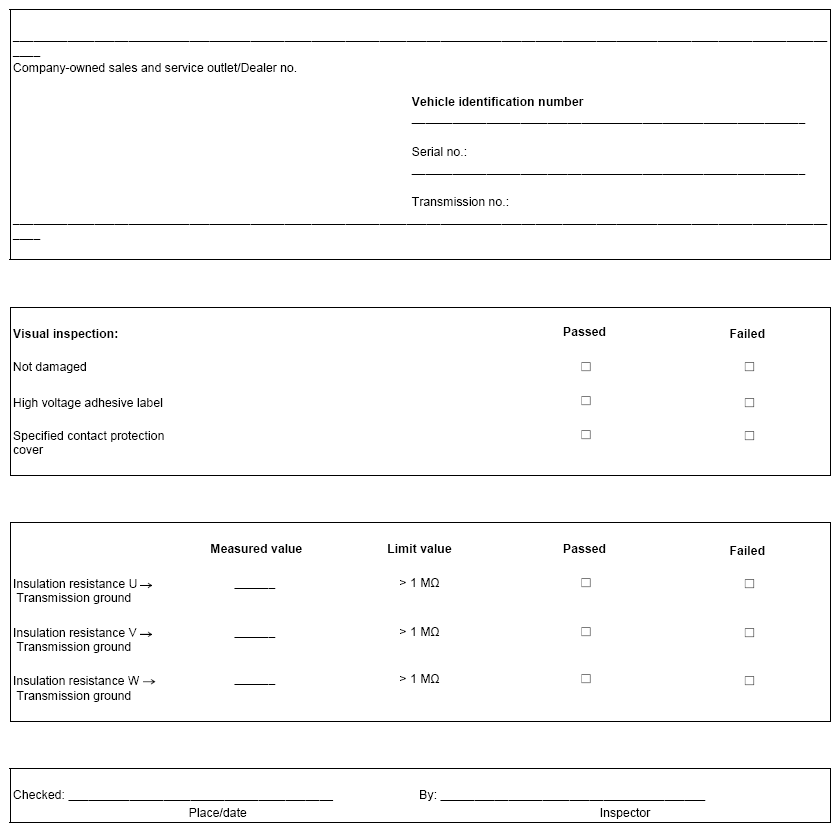

IMPORTANT This test log is to be filled out after replacing the rotor position sensors, to ensure the functional reliability of the electric machine is given.

G12935815Courtesy of MERCEDES-BENZ USA

IMPORTANTThe test log is to be included with the repair order.
