Remove/Install Automatic Transmission Oil Pump Radial Shaft Sealing Ring - AR27.40-P-0300EH
Transmission 724.2
Fig 1: Automatic Transmission Oil Pump Radial Shaft Sealing Ring Components Location - Transmission 724.2 In Model 205
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove transmission | Transmission 724.2 in model 166 with engine 276.8 | AR27.10-P-0005GQA |
| Transmission 724.2 in model 205 with engine 274.9 | AR27.10-P-0502LWH | ||
| Transmission 724.2 in model 253 with engine 274.9 | AR27.10-P-0005LVH | ||
| Transmission 724.2 in model 205 with engine 651 | AR27.10-P-0502RFH | ||
| Transmission 724.2 in model 222 with engine 651 | AR27.10-P-0502LFY | ||
| Transmission 724.2 in model 222 with engine 276.9 | AR27.10-P-0502LFH | ||
| Transmission 724.2 in model 212.095/195 with engine 276.9 Transmission 724.2 in model 212.098/298 with engine 651.9 |
AR27.10-P-0502EH | ||

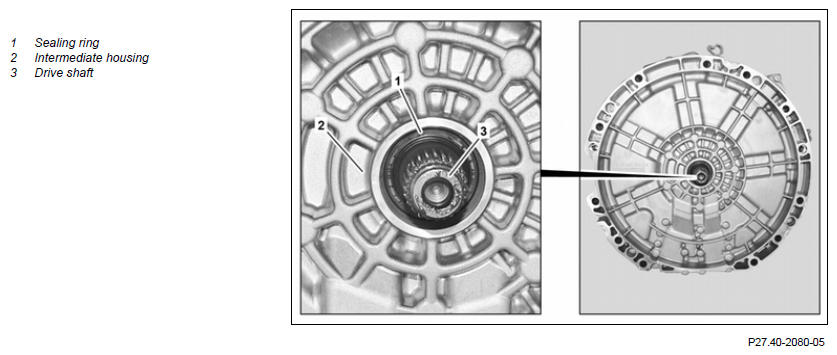

| 2 | Using suitable screwdriver pry out sealing ring (i) from intermediate housing (2) | Carefully pry out sealing ring (1). Otherwise the sealing surfaces on the drive shaft (3) and intermediate housing (2) may be damaged. Install new sealing ring (1). |
|
| Fig 2 | |||
| 3 | Install in the reverse order |
