Fasten Removed Transmission To Assembly Stand - AR27.10-P-0600-01EH

Transmission 724.2

000 588 00 31 00 Assembly stand

WS01.00-N-3028B

Fig 1: Identifying Lifting Device (724 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Assembly Device (724 589 04 40 00)

Courtesy of MERCEDES-BENZ USA

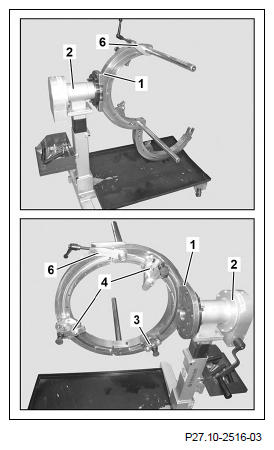

1. Mount assembly device (1) onto assembly stand (2) and tighten bolts.
2. Release locking lever (6) and open assembly device (1).

   Courtesy of MERCEDES-BENZ USA

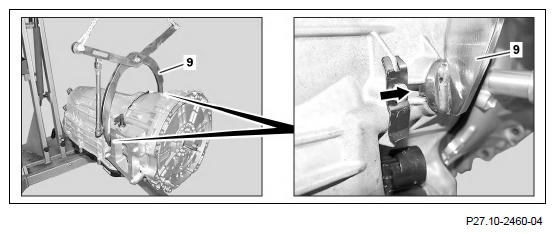

3. Mount lifting device (9), as shown, to transmission housing.

   Ensure that lifting device (9) in the cutouts on transmission housing are seated correctly (arrow). If necessary, check by surging at the lifting device (9).

4. Attach transmission to boom crane with lifting device (9).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

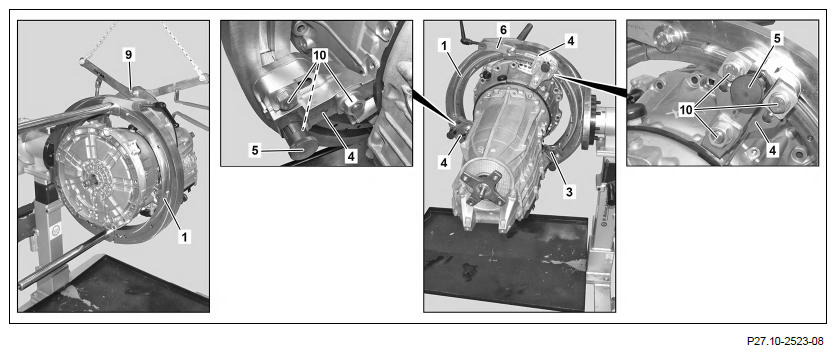

5. Unfasten bracket (4) and release retainers (5) on bracket (3, 4).
6. Slide transmission onto assembly device (1), position in bracket (3).
7. Close assembly device (1) and lock locking lever (6).
8. Position bracket (4) on transmission, until retainer (5) audibly latches fully into place then tighten bolts (l0) on bracket (4).
9. Detach lifting device (9) from transmission.
