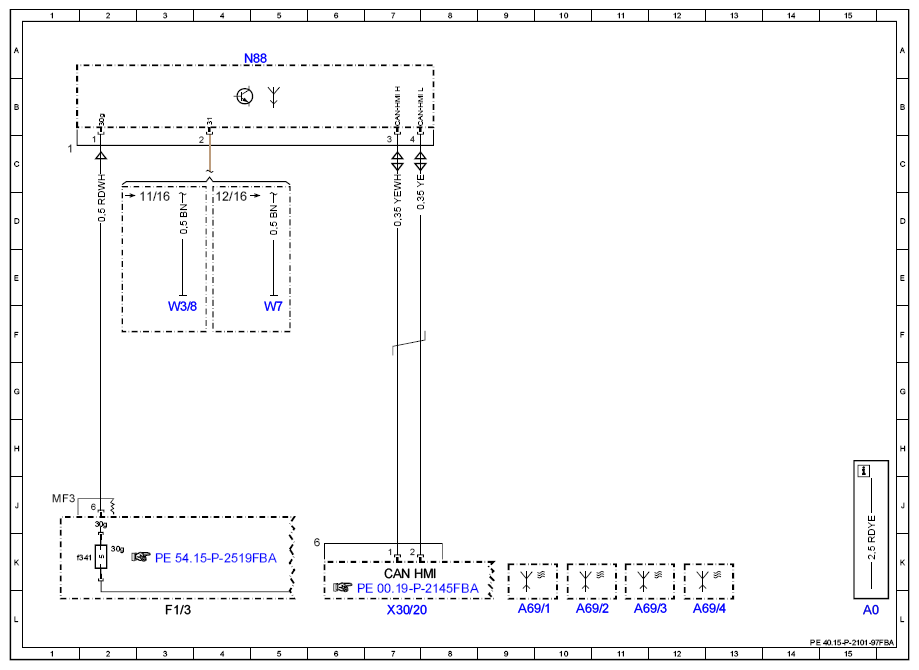

Wiring Diagram For Tire Pressure Monitor Control Unit - PE40.15-P-2101-97FBA
Model 205 up to model year 2019 with code 475 (Tyre pressure monitoring system) Control unit N88 Model 253 (except 253.99) up to model year 2020 with code 475 (Tyre pressure monitoring system) Control unit N88
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A69/1 | Left front tire pressure sensor | 9L |
| A69/2 | Right front tire pressure sensor | 10L |
| A69/3 | Left rear tire pressure sensor | 11L |
| A69/4 | Right rear tire pressure sensor | 12L |
| CAN HMI | User interface CAN | 7K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f341 | Fuse 341 | 1K |
| N88 | Tire pressure monitor control unit | 5A |
| W3/8 | Right rear wheel well ground point | 3F |
| W7 | Right wheelhouse trunk ground point | 5F |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 7L |
