Wiring Diagram For Electric Power Steering Control Unit - PE46.35-P-2101-97FBB

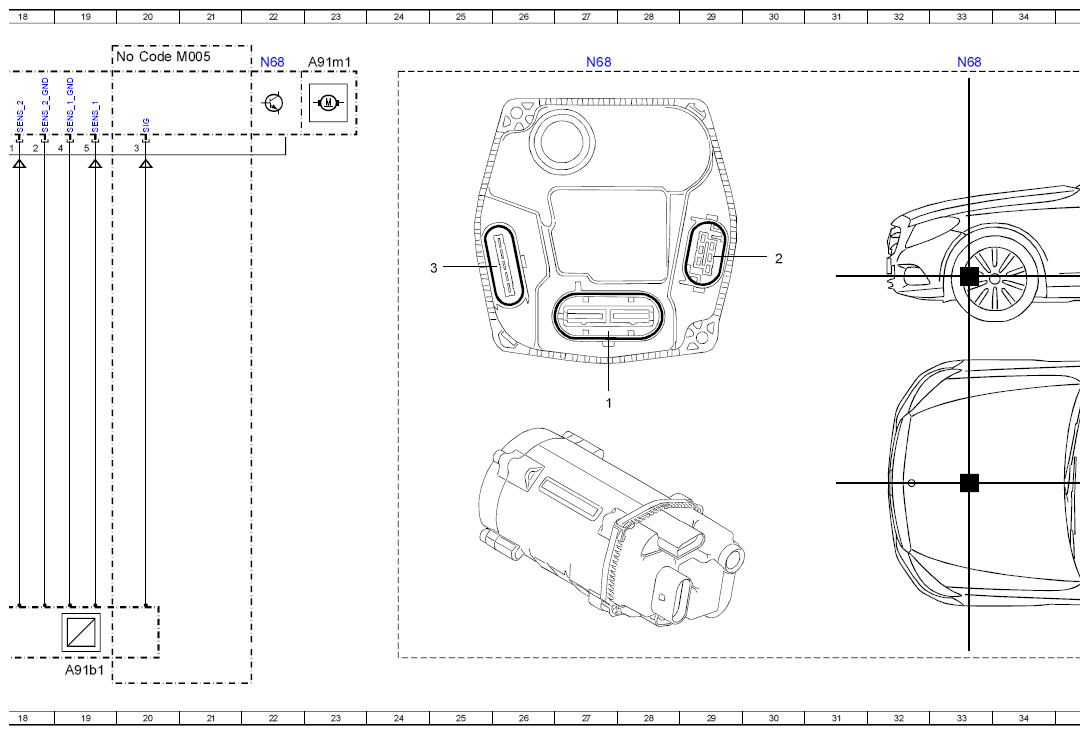

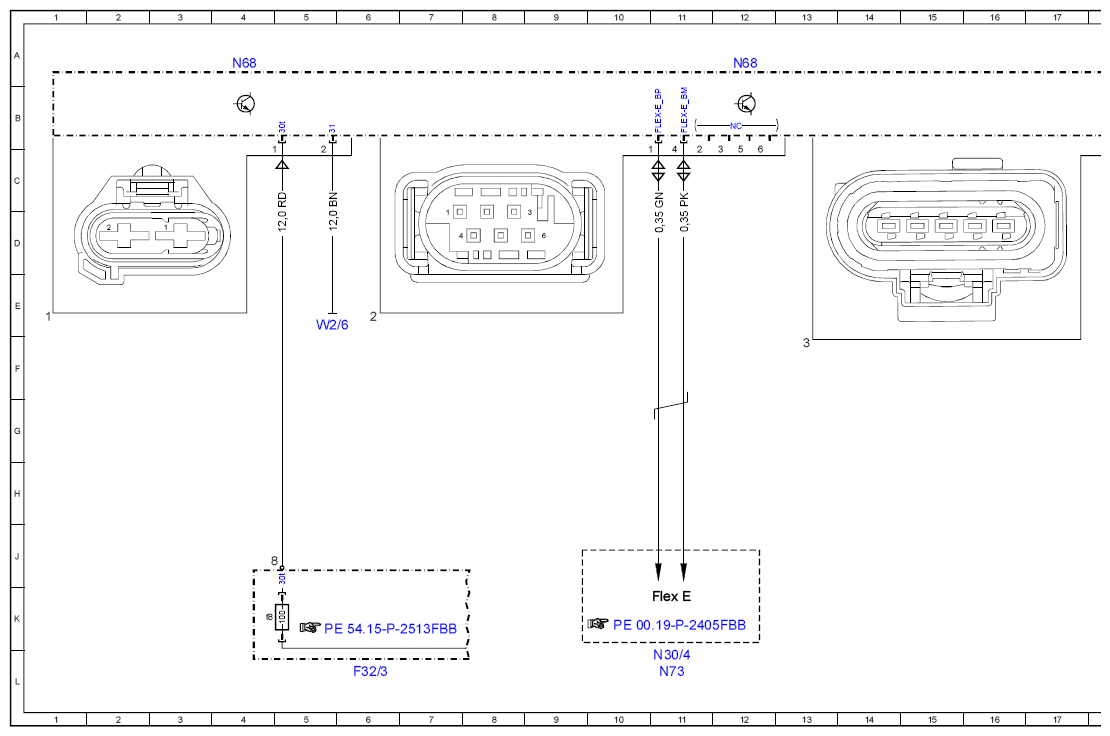

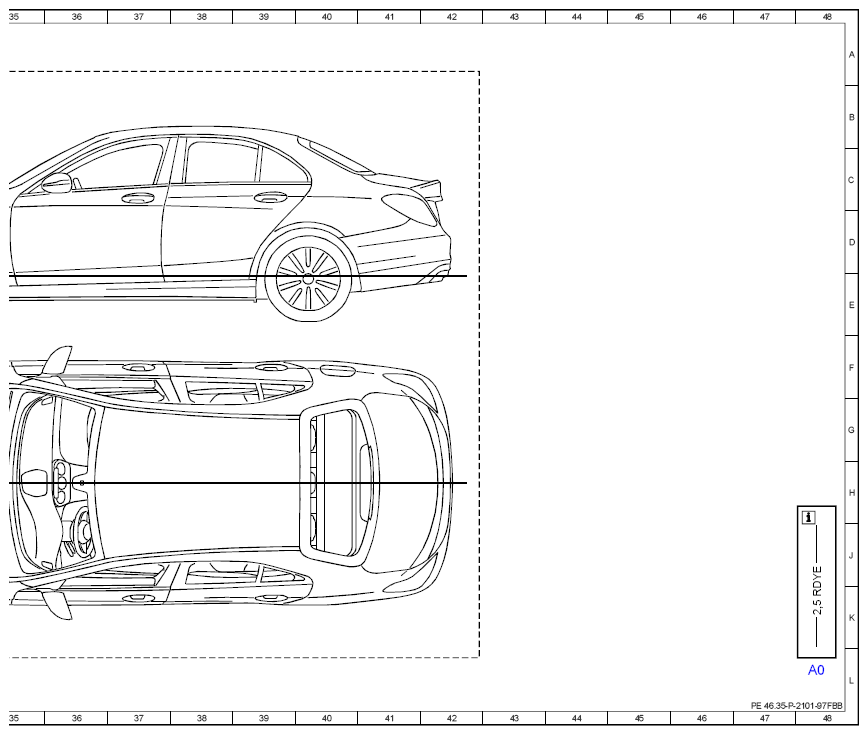

Model 205 as of model year 2019 Control unit N68
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A91b1 | Electric power steering torque sensor | 19L |
| A91m1 | Electric power steering actuator motor | 23A |
| Code M005 | 4MATIC | 20A |
| F32/3 | Engine compartment prefuse box | 6L |
| F32/3f8 | Fuse 8 | 4K |
| Flex E | Chassis FlexRay | 11K |
| N30/4 | Electronic Stability Program control unit | 11L |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| N68 | Electrical power steering control unit | 22A |
| N68 | Electrical power steering control unit | 27A |
| N68 | Electrical power steering control unit | 33A |
| N73 | Electronic ignition switch control unit | 11L |
| W2/6 | Electric power steering ground point | 5E |
