Outlet Air Temperature Sensor, Basic Function - GF83.40-P-2019A
Model all (CAR)

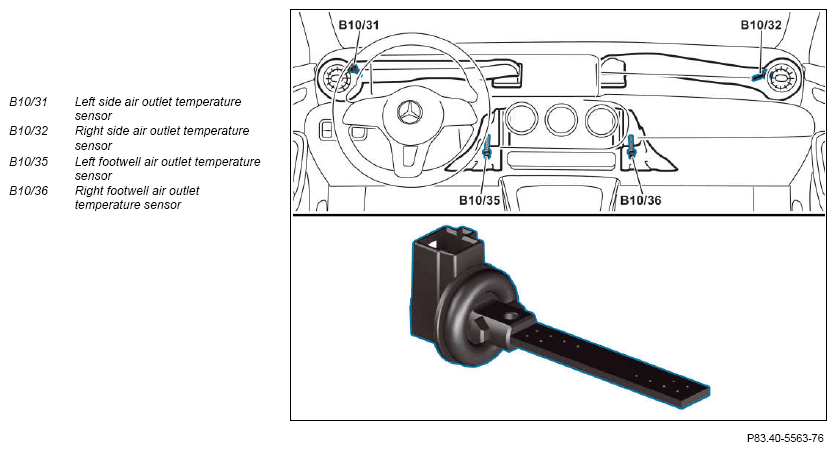

Location
The air outlet temperature sensors are located in the air ducts to the side and footwell vents.
General
The air outlet temperature sensors record the temperatures in the air ducts to the respective air outlets. The control for the climate control reads in the signals from the air outlet temperature sensors directly.
Depending on the vehicle model and the equipment installed, additional air outlet temperature sensors may be located in the air ducts under the center console.
Function requirements
- Circuit 15 ON
- Climate control switched on
