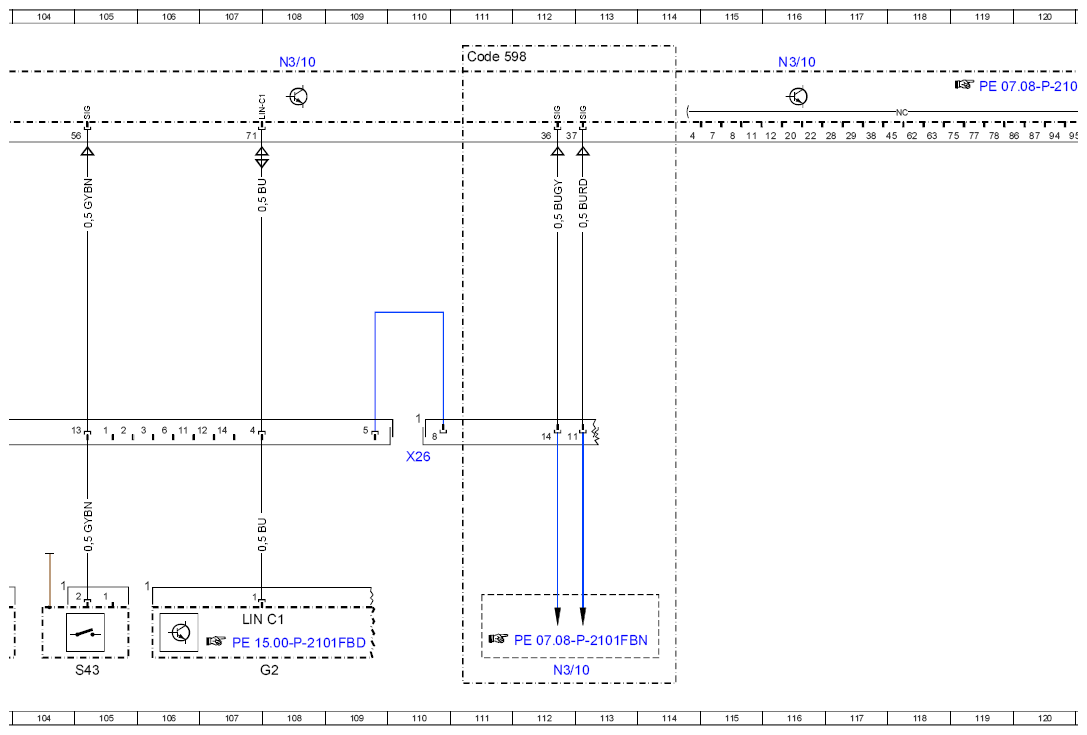

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97FBO
Engine 276.8 in model 205 as of model year 2019 Engine plug
| Code: | Designation: | Position: |
|---|---|---|

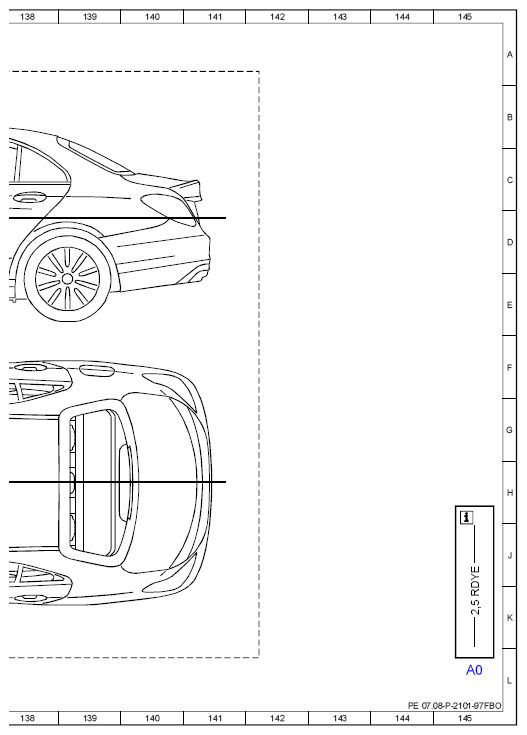

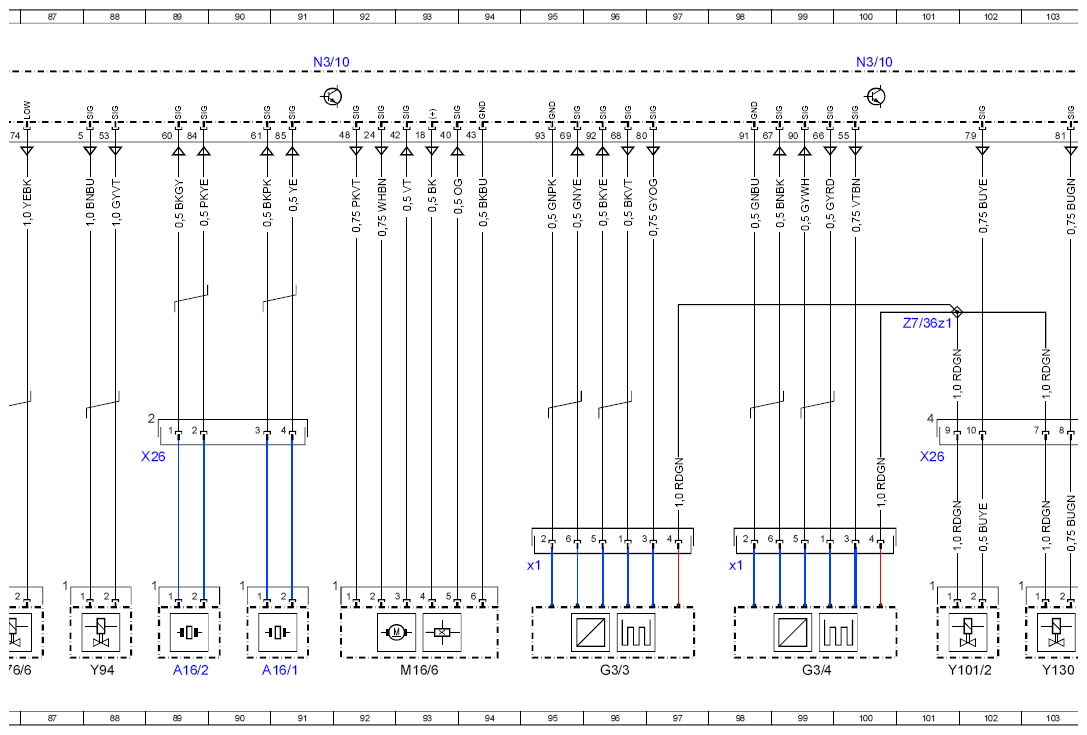

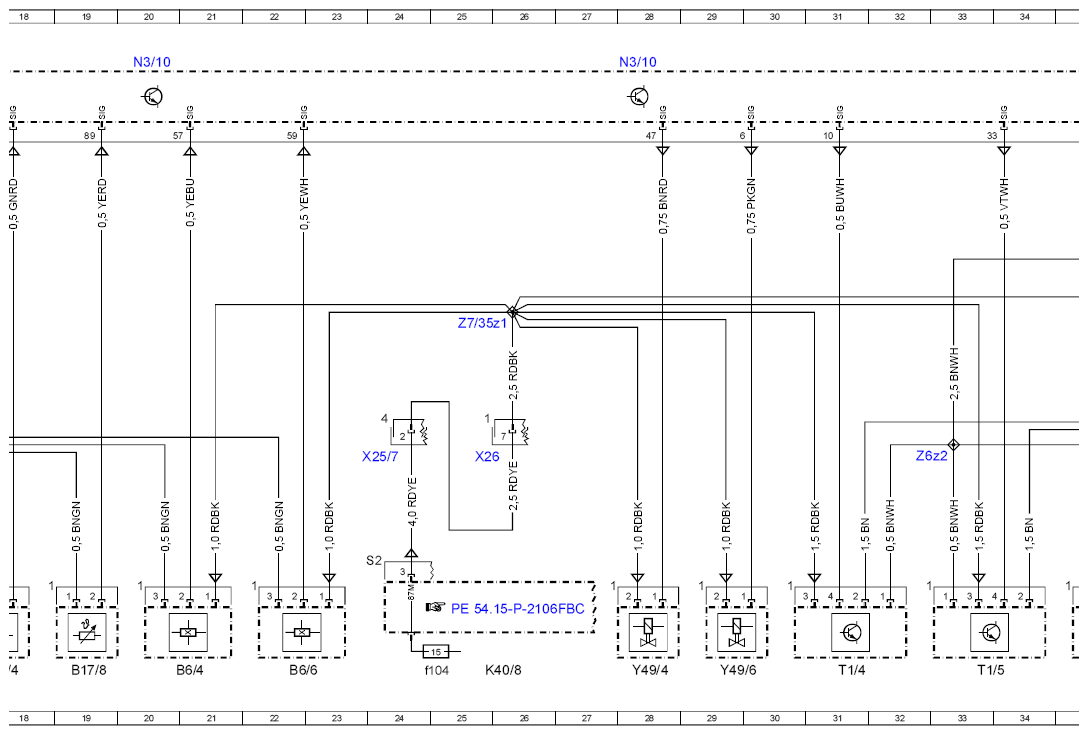

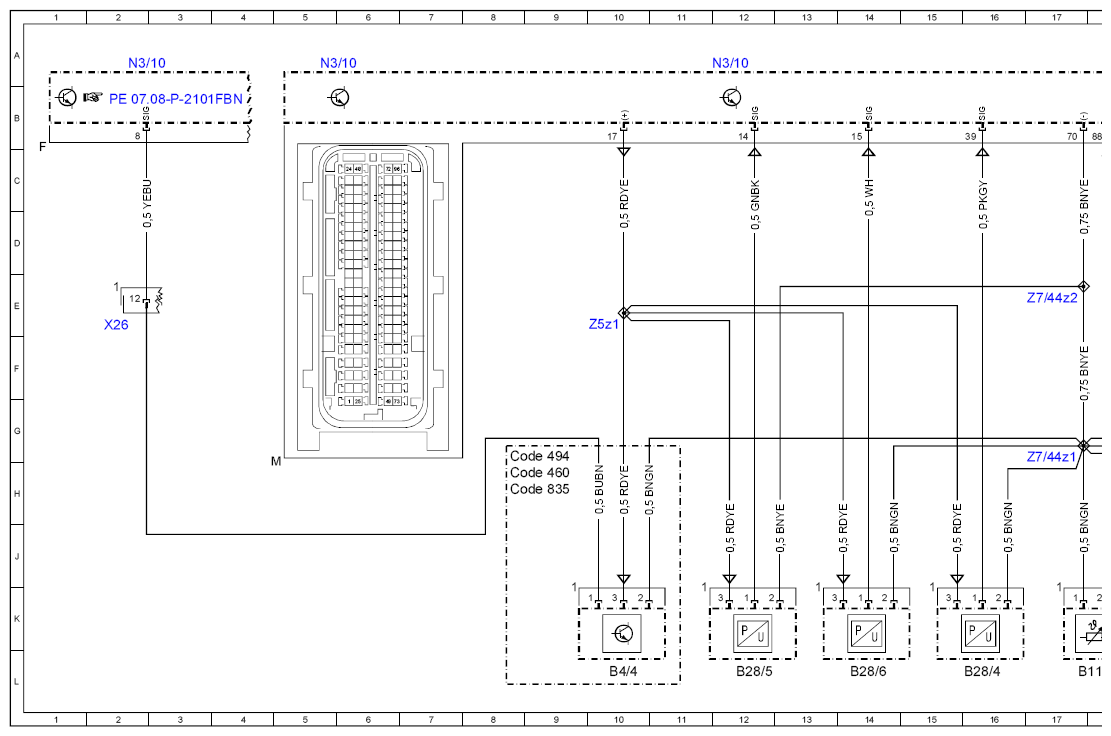

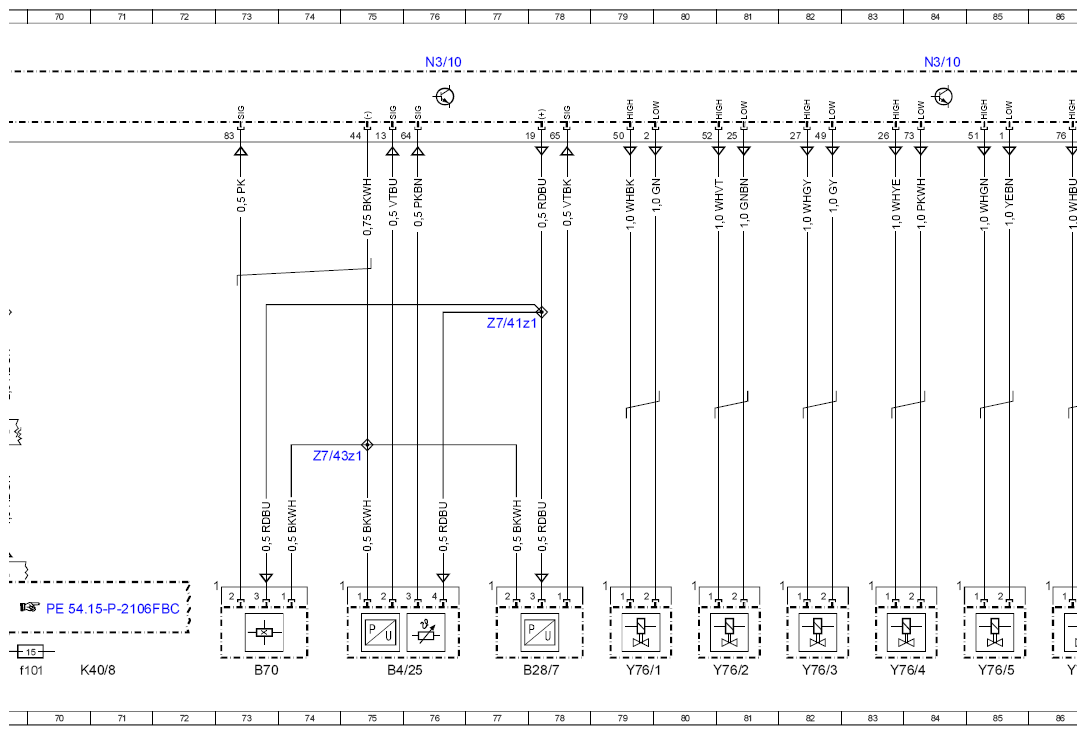

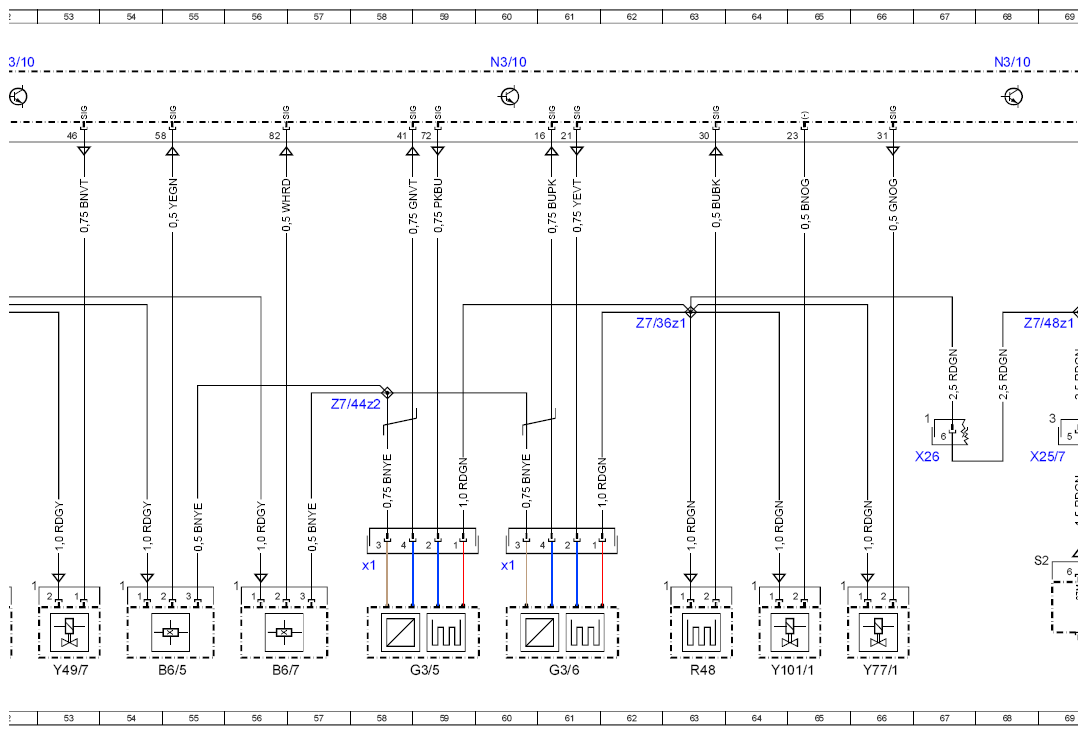

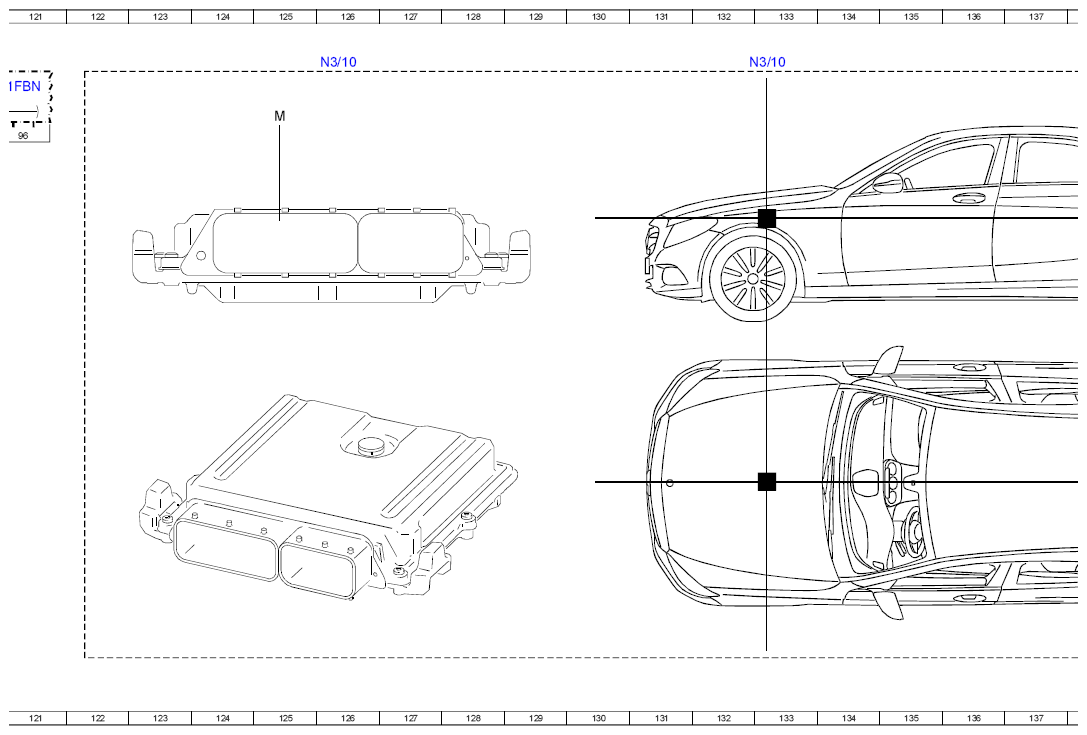

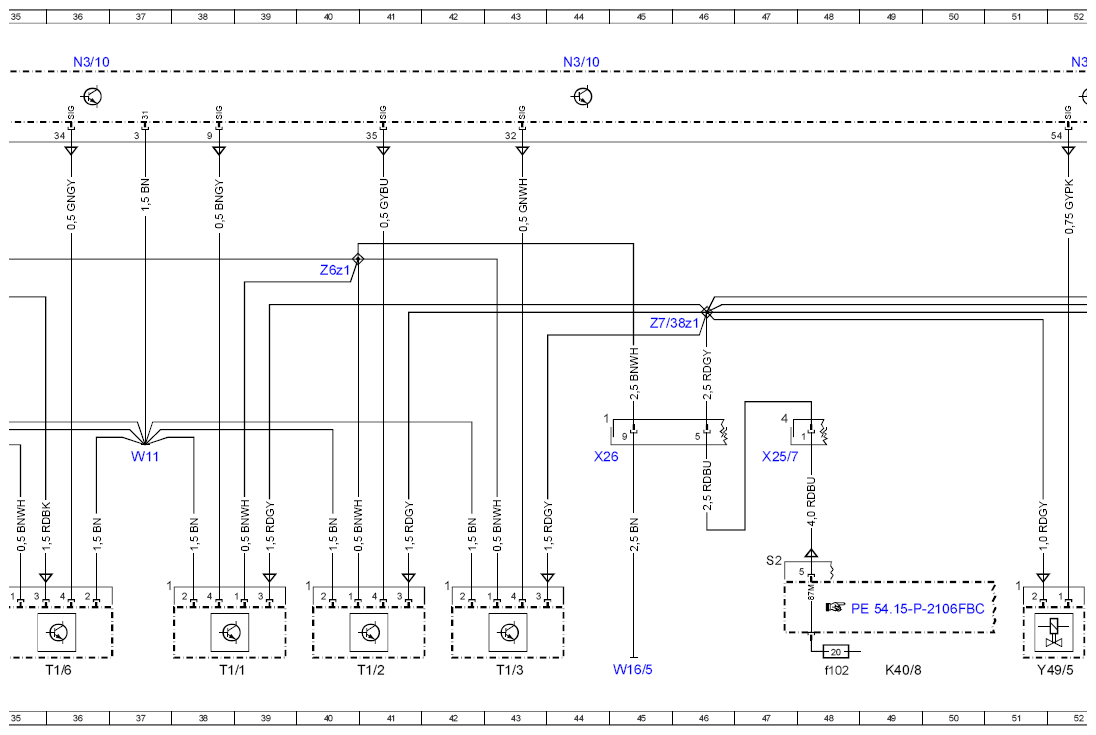

| A0 | Use of wiring diagrams | 145L |
| A16/1 | Knock sensor 1 | 90L |
| A16/2 | Knock sensor 2 | 89L |
| B11/4 | Coolant temperature sensor | 17L |
| B17/8 | Charge air temperature sensor | 19L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 16L |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 12L |
| B28/6 | Pressure sensor upstream of throttle valve | 14L |
| B28/7 | Pressure sensor downstream of throttle valve | 78L |
| B4/25 | Fuel pressure and temperature sensor | 75L |
| B4/4 | Purging pressure sensor | 10L |
| B6/4 | Left intake camshaft Hall sensor | 21L |
| B6/5 | Right intake camshaft Hall sensor | 55L |
| B6/6 | Left exhaust camshaft Hall sensor | 22L |
| B6/7 | Right exhaust camshaft Hall sensor | 56L |
| B70 | Crankshaft Hall sensor | 73L |
| Code 460 | Canada version | 8H |
| Code 494 | USA version | 8G |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 111A |
| Code 835 | Additional parts for South Korea vehicles | 8H |
| G2 | Alternator | 108L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 96L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 95J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 99L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 98J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 59L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 58J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 61L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 60J |
| K40/8 | Engine fuse and relay module | 26L |
| K40/8 | Engine fuse and relay module | 49L |
| K40/8 | Engine fuse and relay module | 70L |
| K40/8f101 | Fuse 101 | 69L |
| K40/8f102 | Fuse 102 | 48L |
| K40/8f104 | Fuse 104 | 25L |
| LIN C1 | Drive train LIN | 107K |
| M16/6 | Throttle valve actuator | 93L |
| N3/10 | ME-SFI [ME] control unit | 2A |
| N3/10 | ME-SFI [ME] control unit | 5A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 112L |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 91A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 108A |
| N3/10 | ME-SFI [ME] control unit | 116A |
| N3/10 | ME-SFI [ME] control unit | 126A |
| N3/10 | ME-SFI [ME] control unit | 133A |
| R48 | Coolant thermostat heating element | 63L |
| S43 | Oil level check switch | 105L |
| T1/1 | Cylinder 1 ignition coil | 38L |
| T1/2 | Cylinder 2 ignition coil | 41L |
| T1/3 | Cylinder 3 ignition coil | 43L |
| T1/4 | Cylinder 4 ignition coil | 31L |
| T1/5 | Cylinder 5 ignition coil | 33L |
| T1/6 | Cylinder 6 ignition coil | 36L |
| W11 | Combustion engine ground point | 37H |
| W16/5 | Left major assembly compartment electronics ground point | 45L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 24H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 47H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 69H |
| X26 | Interior and engine wiring harness electrical connector | 25H |
| X26 | Interior and engine wiring harness electrical connector | 44H |
| X26 | Interior and engine wiring harness electrical connector | 67H |
| X26 | Interior and engine wiring harness electrical connector | 2E |
| X26 | Interior and engine wiring harness electrical connector | 89H |
| X26 | Interior and engine wiring harness electrical connector | 101H |
| X26 | Interior and engine wiring harness electrical connector | 110H |
| Y101/1 | Left bypass air switchover valve | 64L |
| Y101/2 | Right bypass air switchover valve | 101L |
| Y130 | Engine oil pump valve | 103L |
| Y49/4 | Left intake camshaft solenoid | 28L |
| Y49/5 | Right intake camshaft solenoid | 51L |
| Y49/6 | Left exhaust camshaft solenoid | 29L |
| Y49/7 | Right exhaust camshaft solenoid | 53L |
| Y76/1 | Cylinder 1 fuel injector | 79L |
| Y76/2 | Cylinder 2 fuel injector | 81L |
| Y76/3 | Cylinder 3 fuel injector | 82L |
| Y76/4 | Cylinder 4 fuel injector | 83L |
| Y76/5 | Cylinder 5 fuel injector | 85L |
| Y76/6 | Cylinder 6 fuel injector | 86L |
| Y77/1 | Boost pressure control pressure transducer | 66L |
| Y94 | Quantity control valve | 88L |
| Z5z1 | Connector sleeve in wiring harness | 10E |
| Z6z1 | Circuit 31 connector sleeve | 40E |
| Z6z2 | Circuit 31 connector sleeve | 33G |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 25E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 62E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 101E |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 46E |
| Z7/41z1 | Sensor voltage connector sleeve | 77E |
| Z7/43z1 | Sensor ground connector sleeve | 74G |
| Z7/44z1 | Sensor ground connector sleeve | 17G |
| Z7/44z2 | Sensor ground connector sleeve | 58G |
| Z7/44z2 | Sensor ground connector sleeve | 17E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 69E |
