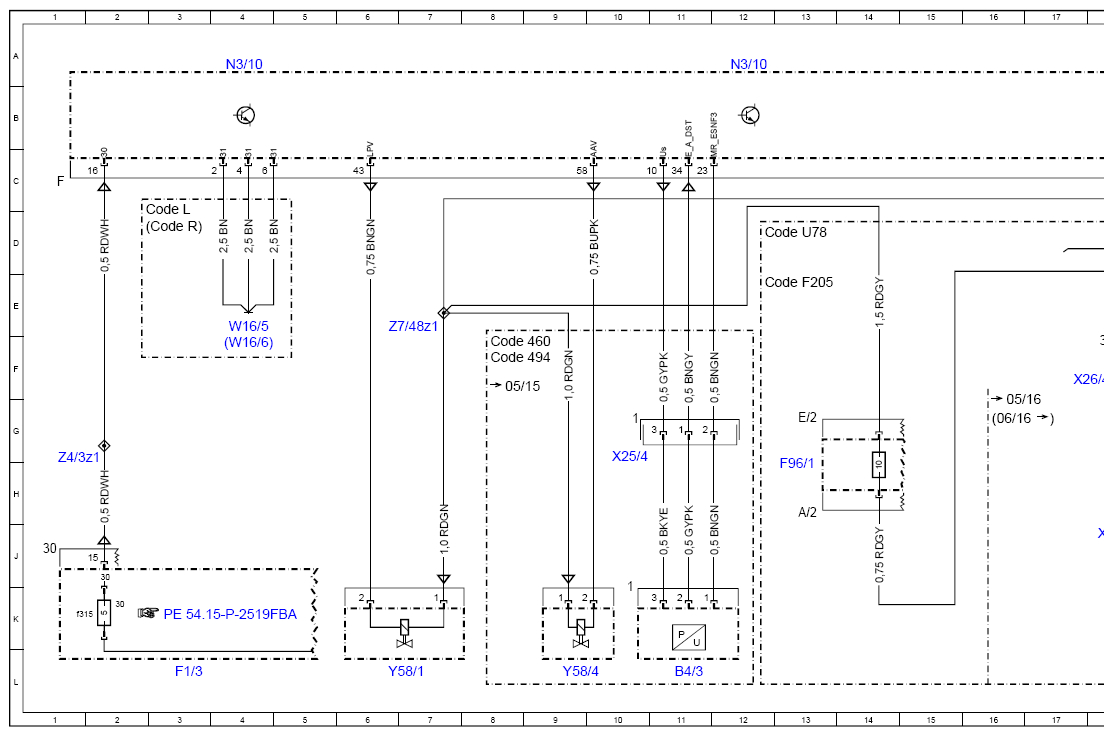

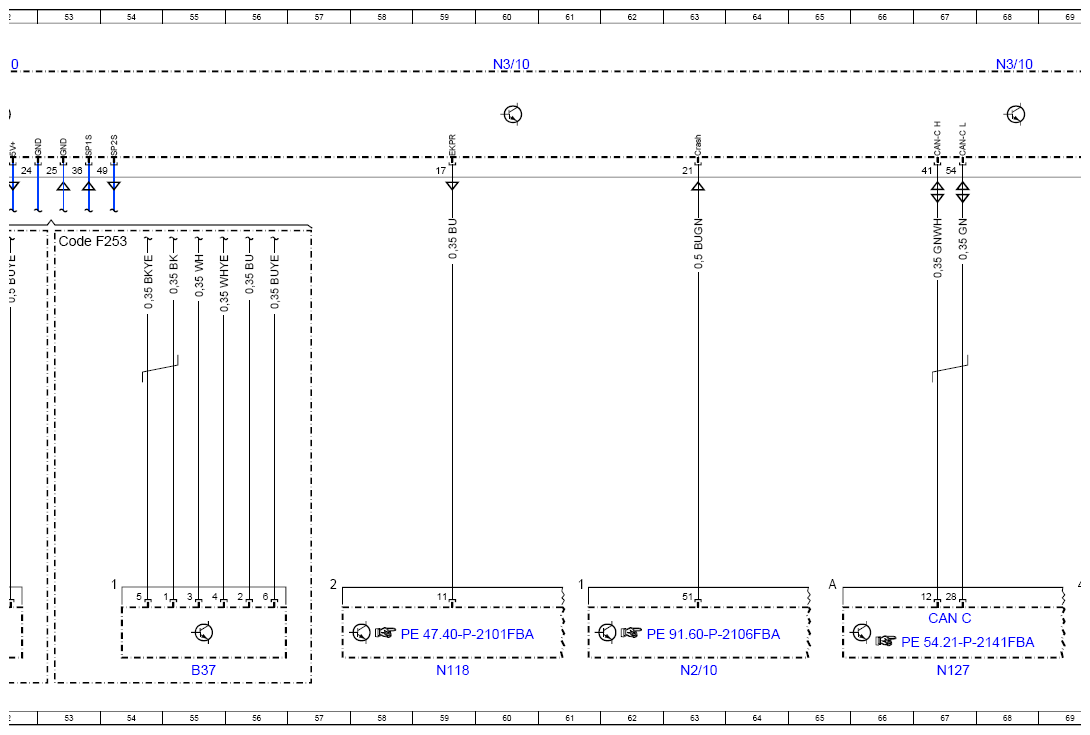

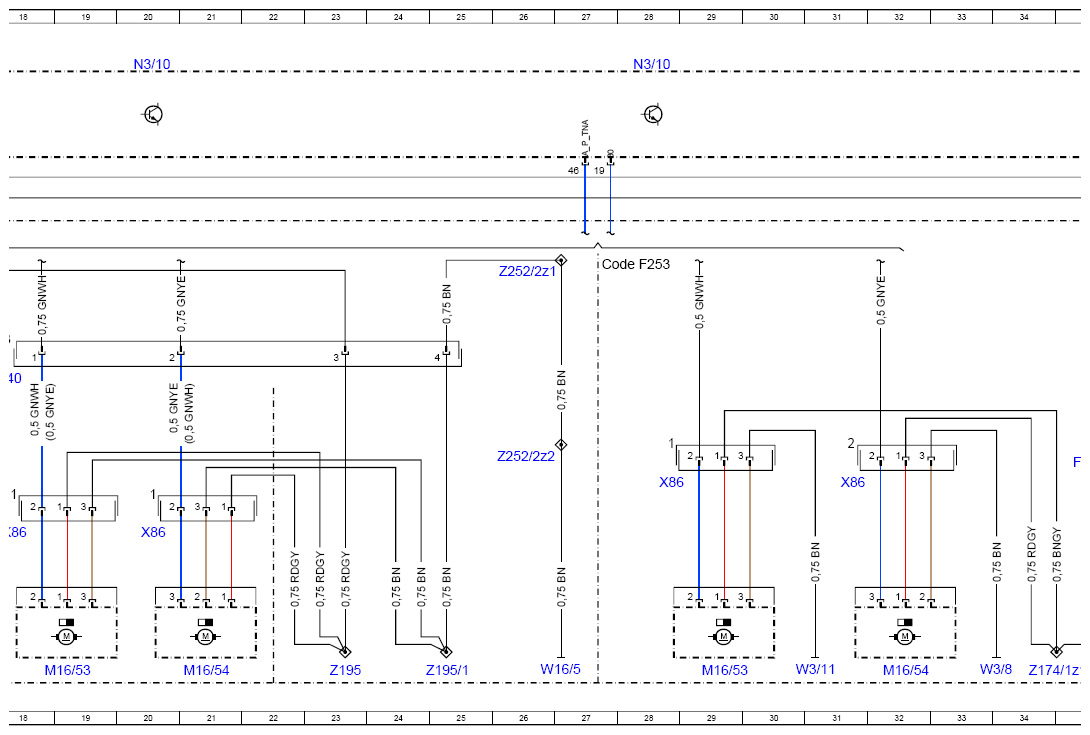

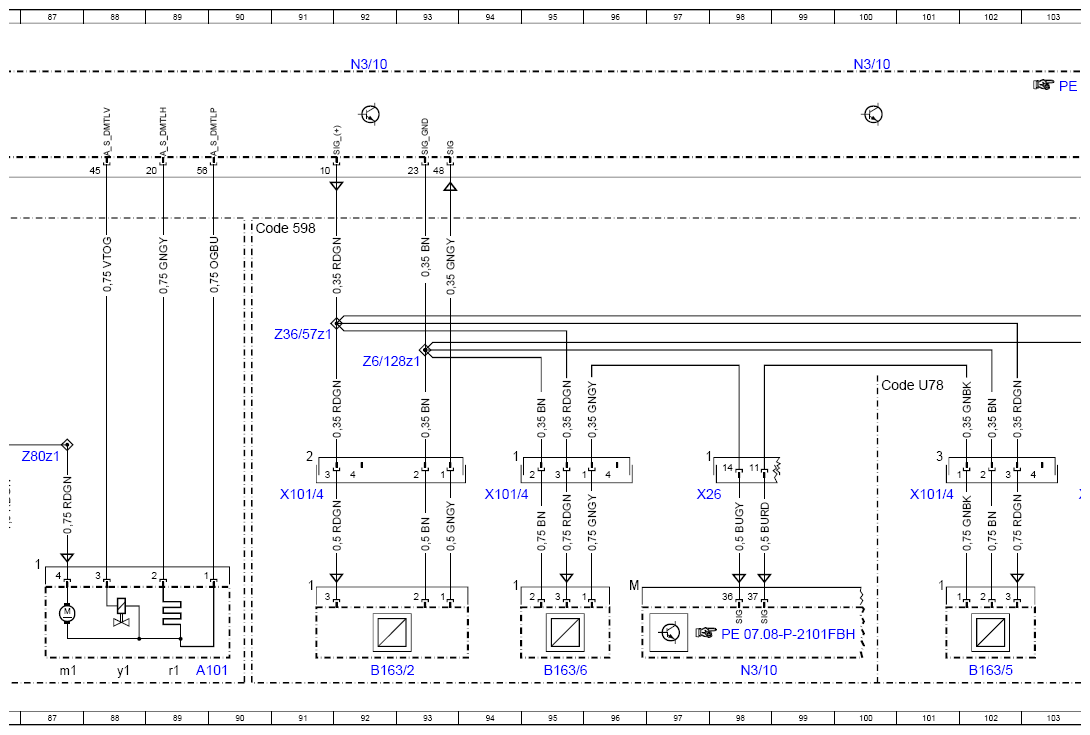

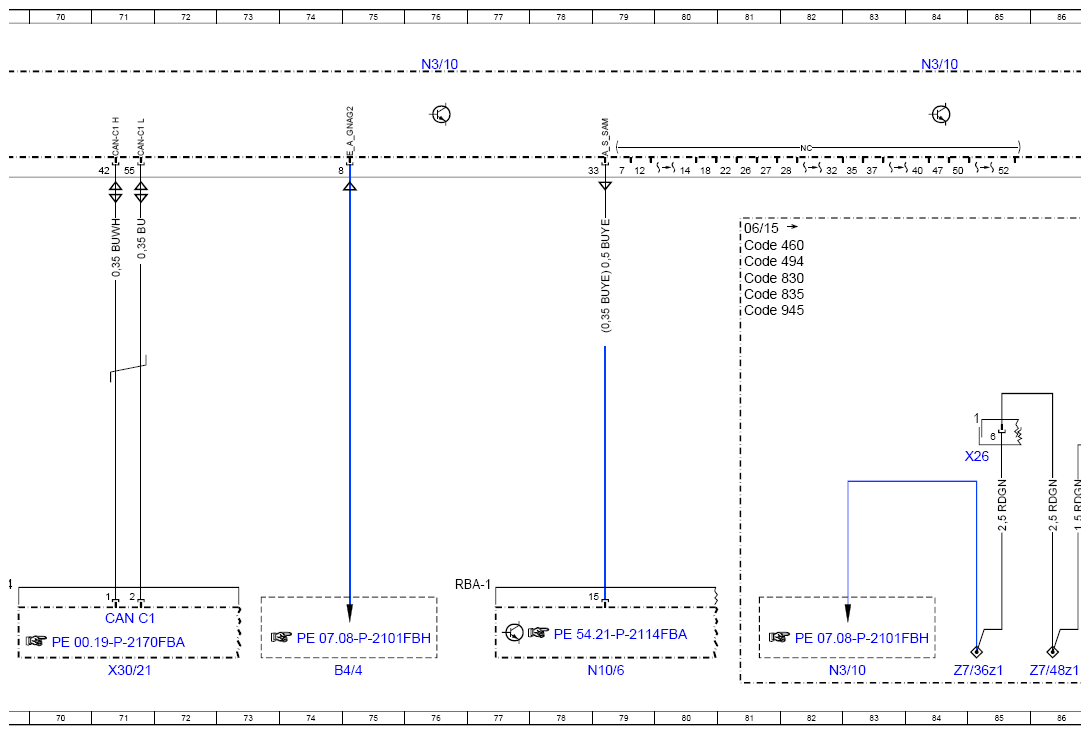

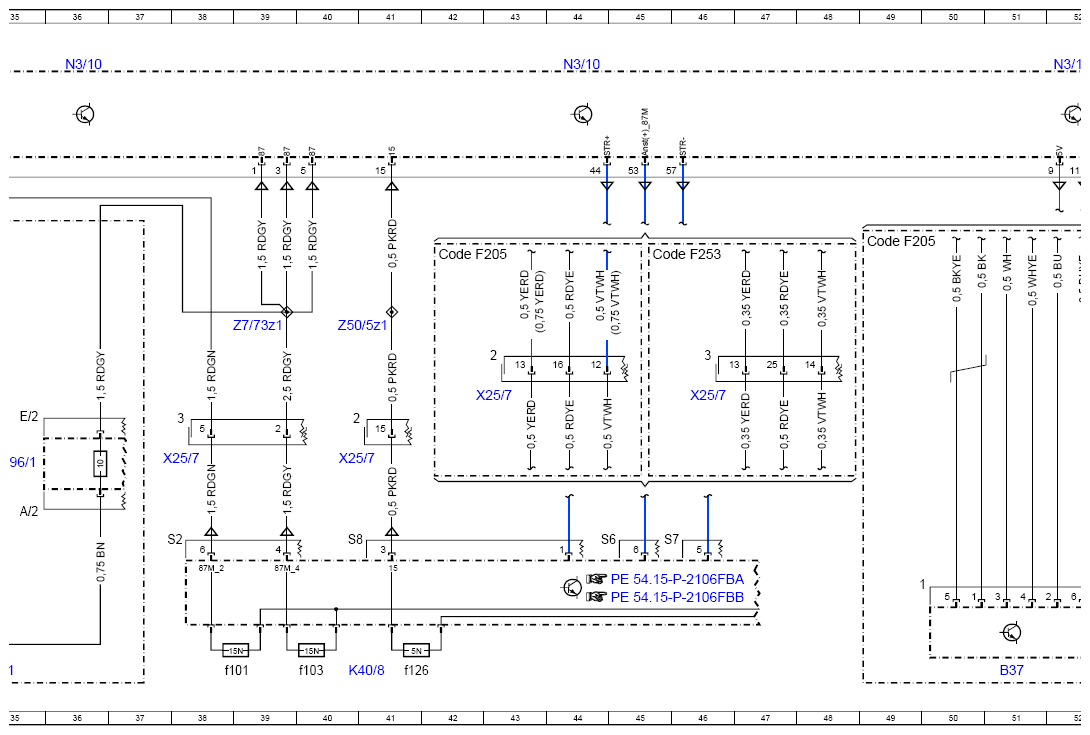

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97FBG
Engine 276 in model 205 up to model year 2019 Control unit N3/10, on vehicle side
Engine 276 in model 253 up to model year 2020 Control unit N3/10, on vehicle side
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| A101 | Fuel tank diagnostic module | 89L |
| A101m1 | Fuel tank diagnostic module pump | 87L |
| A101r1 | Fuel tank diagnostic module heating element | 89L |
| A101y1 | Fuel tank diagnostic module solenoid valve | 88L |
| B163/1 | Temperature sensor upstream of left gasoline particulate filter | 105L |
| B163/2 | Temperature sensor upstream of right gasoline particulate filter | 92L |
| B163/5 | Left gasoline particulate filter differential pressure sensor | 102L |
| B163/6 | Right gasoline particulate filter differential pressure sensor | 95L |
| B37 | Accelerator pedal sensor | 51L |
| B37 | Accelerator pedal sensor | 55L |
| B4/3 | Fuel tank pressure sensor | 11L |
| B4/4 | Purging pressure sensor | 74L |
| CAN C | Engine CAN | 67K |
| CAN C1 | Drive train CAN | 71K |
| Code 460 | Canada version | 8F |
| Code 460 | Canada version | 81D |
| Code 494 | USA version | 8F |
| Code 494 | USA version | 81D |
| Code 598 | Gasoline particulate filter (0PF) with sensor system | 90D |
| Code 830 | Additional parts for China vehicles | 81E |
| Code 835 | Additional parts for South Korea vehicles | 81E |
| Code 945 | China Stage 6 exhaust treatment | 81E |
| Code F205 | MODEL SERIES 205 | 12E |
| Code F205 | MODEL SERIES 205 | 42D |
| Code F205 | MODEL SERIES 205 | 49D |
| Code F253 | MODEL SERIES 253 | 53D |
| Code F253 | MODEL SERIES 253 | 27D |
| Code F253 | MODEL SERIES 253 | 45D |
| Code L | LEFT-HAND DRIVE | 2D |
| Code R | RIGHT-HAND DRIVE | 2D |
| Code U78 | AMG Sport exhaust system | 12D |
| Code U78 | AMG Sport exhaust system | 100F |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f315 | Fuse 315 | 1K |
| F96/1 | Exhaust flaps circuit 87 fuses | 13H |
| F96/1 | Exhaust flaps circuit 87 fuses | 35H |
| K40/8 | Engine fuse and relay module | 40L |
| K40/8f101 | Fuse 101 | 38L |
| K40/8f103 | Fuse 103 | 40L |
| K40/8f126 | Fuse 126 | 41L |
| M16/53 | Left exhaust flap actuator motor | 19L |
| M16/53 | Left exhaust flap actuator motor | 29L |
| M16/54 | Right exhaust flap actuator motor | 21L |
| M16/54 | Right exhaust flap actuator motor | 32L |
| N10/6 | Front SAM control unit | 79L |
| N118 | Fuel pump control unit | 59L |
| N127 | Drivetrain control unit | 67L |
| N2/10 | Supplemental restraint system control unit | 63L |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 82L |
| N3/10 | ME-SFI [ME] control unit | 98L |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| W16/5 | Left major assembly compartment electronics ground point | 26L |
| W16/5 | Left major assembly compartment electronics ground point | 4E |
| W16/6 | Right major assembly compartment ground point | 4F |
| W3/11 | Left rear wheel well ground point | 31L |
| W3/8 | Right rear wheel well ground point | 33L |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 94H |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 101H |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 91H |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 104H |
| X25/4 | Fuel tank electrical connector | 10G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 40H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 38H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 43G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 46G |
| X26 | Interior and engine wiring harness electrical connector | 85H |
| X26 | Interior and engine wiring harness electrical connector | 98H |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 18F |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 71L |
| X86 | Exhaust flap electrical connector | 20J |
| X86 | Exhaust flap electrical connector | 18J |
| X86 | Exhaust flap electrical connector | 28H |
| X86 | Exhaust flap electrical connector | 31H |
| Y58/1 | Purge control valve | 6L |
| Y58/4 | Activated charcoal filter shutoff valve | 9L |
| Z174/1z1 | Circuit 30 DC/DC converter connector sleeve | 34L |
| Z195 | Exhaust flap terminal 87/4 connector sleeve | 23L |
| Z195/1 | Exhaust flap ground connection connector sleeve | 25L |
| Z252/2z1 | Left major assembly compartment ground line connector sleeve (electronic ground) | 26E |
| Z252/2z2 | Left major assembly compartment ground line connector sleeve (electronic ground) | 26G |
| Z36/57z1 | Gasoline particulate filter sensors supply end sleeve | 91F |
| Z4/3z1 | Tml. 30 connector sleeve | 1G |
| Z50/5z1 | Tml. 15 connector sleeve | 41E |
| Z6/128z1 | Gasoline particulate filter sensors ground line end sleeve | 92F |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 84L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 7E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 86L |
| Z7/73z1 | Circuit 87/4 connector sleeve | 39E |
| Z80z1 | Cross section reduction connector sleeve | 87G |
