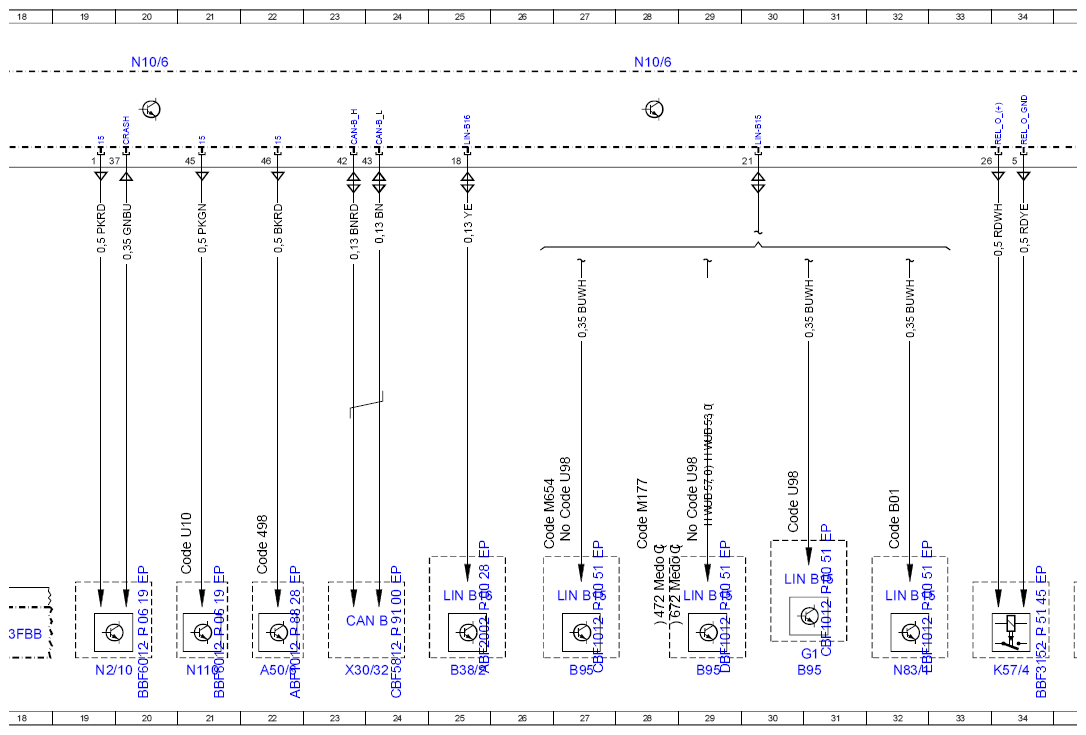

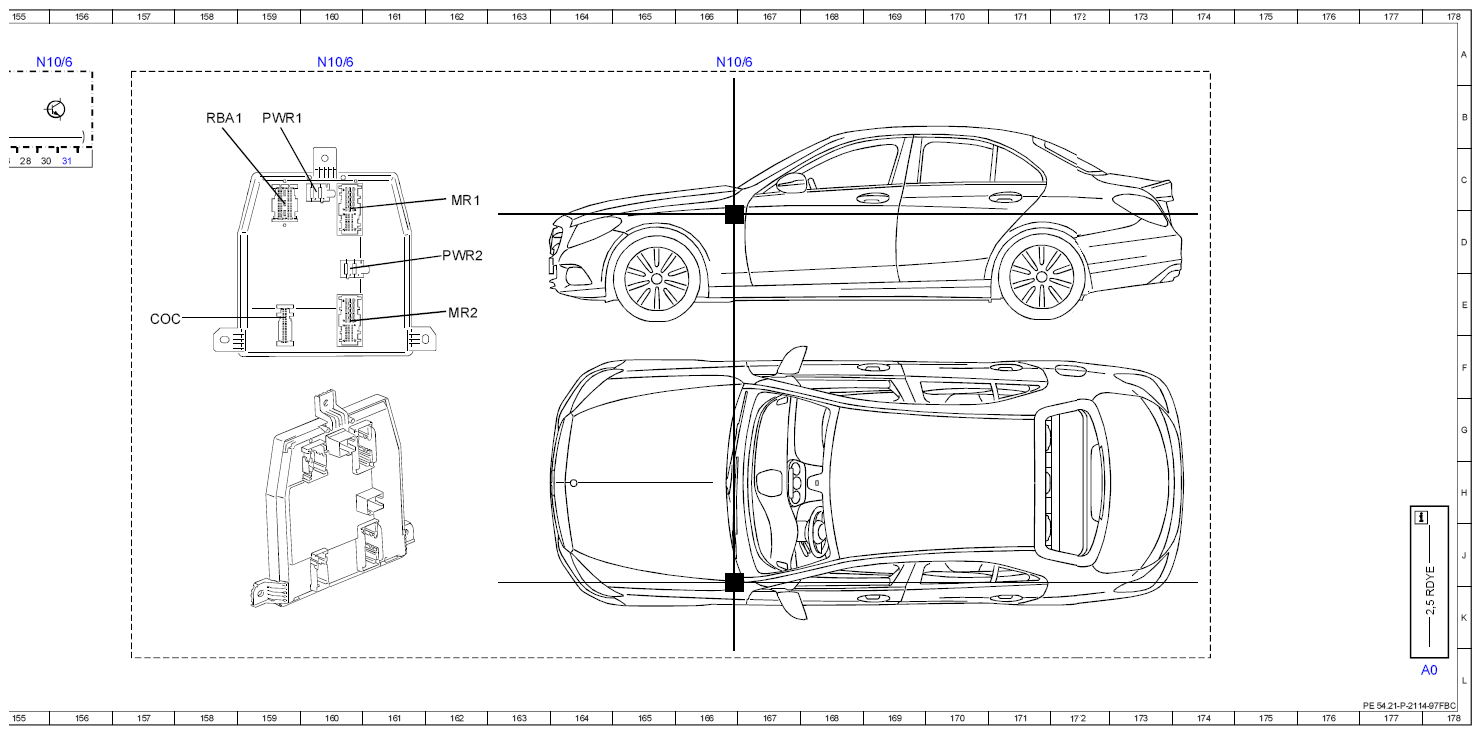

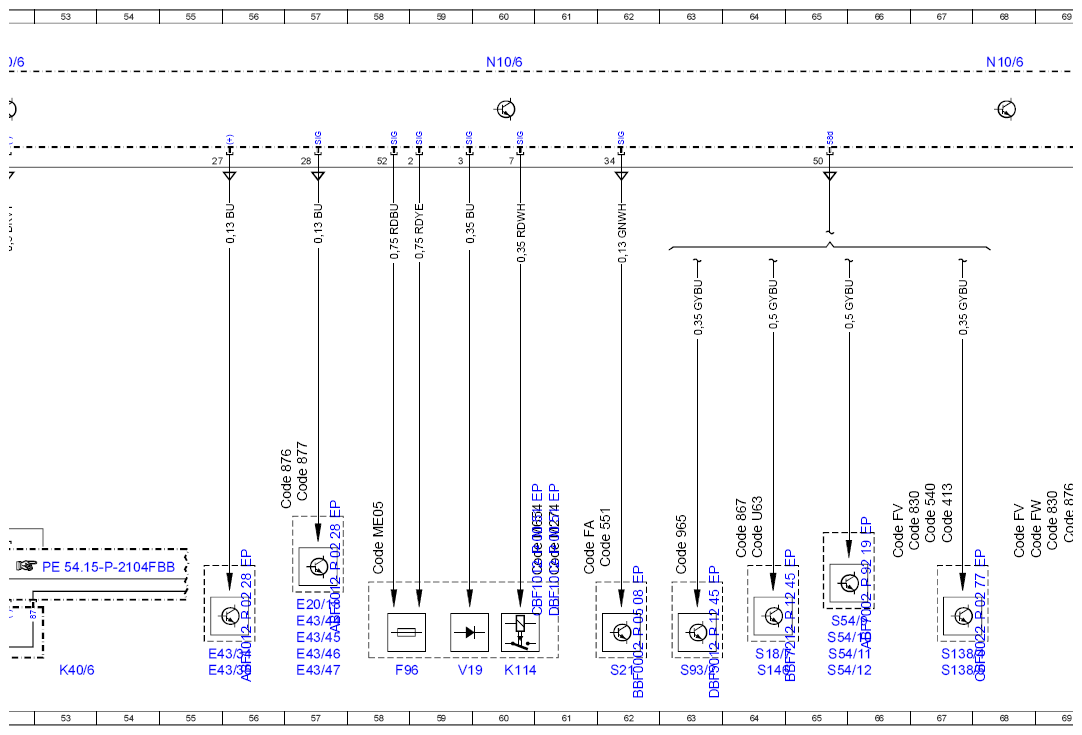

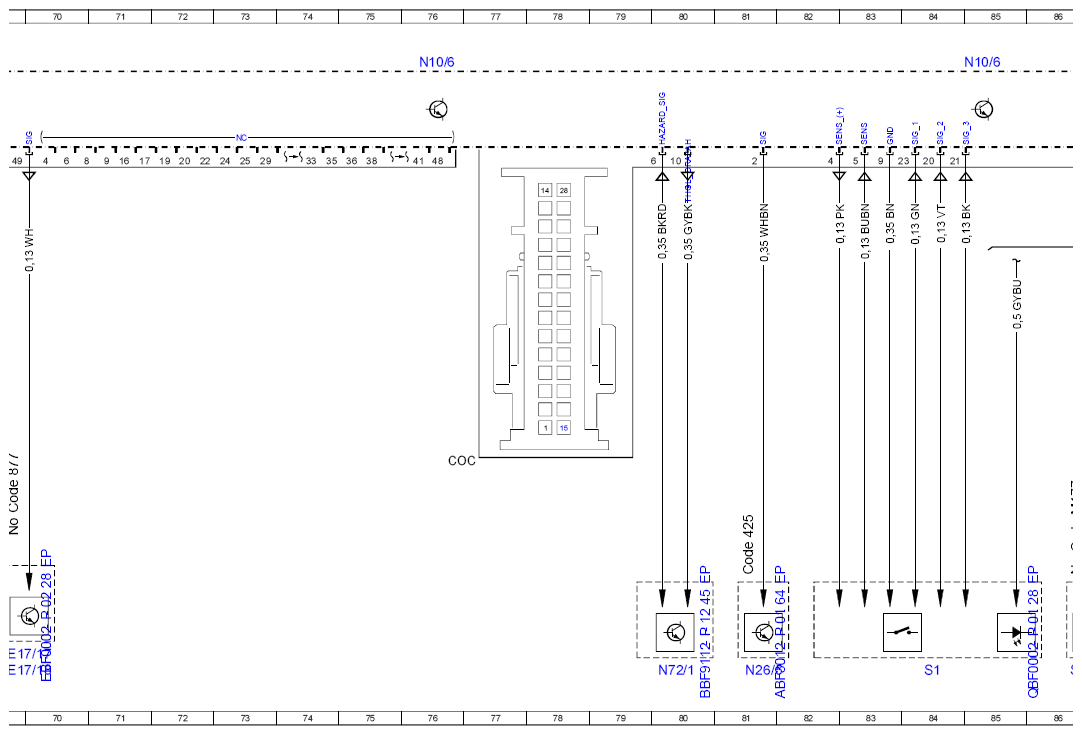

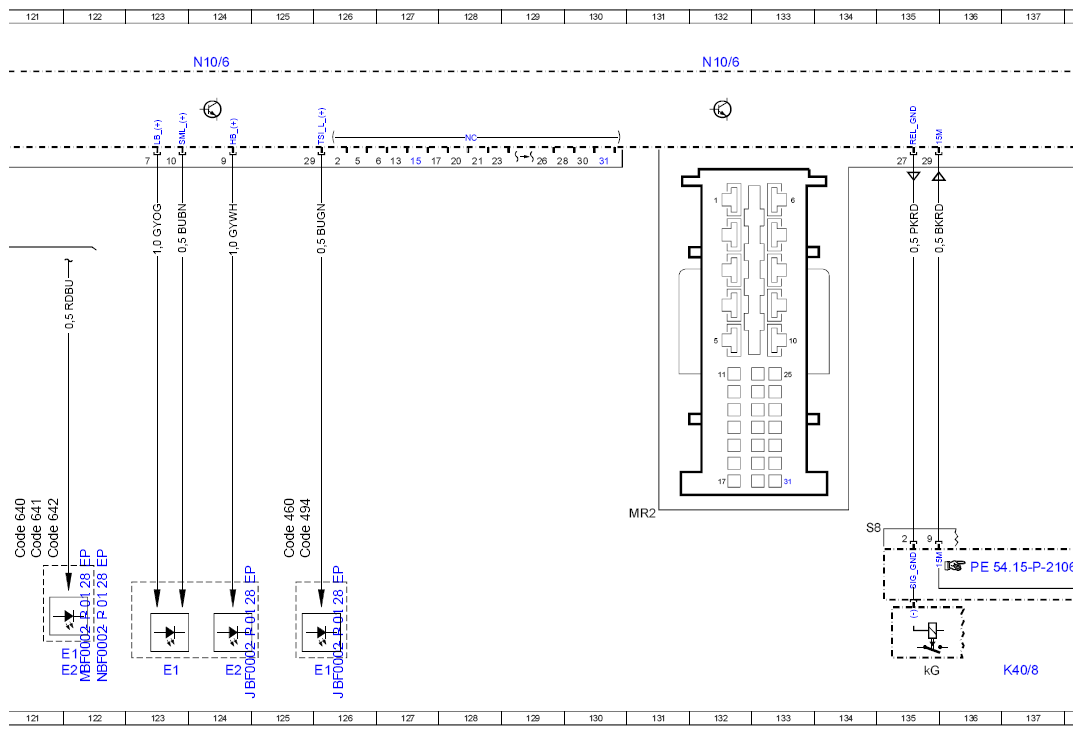

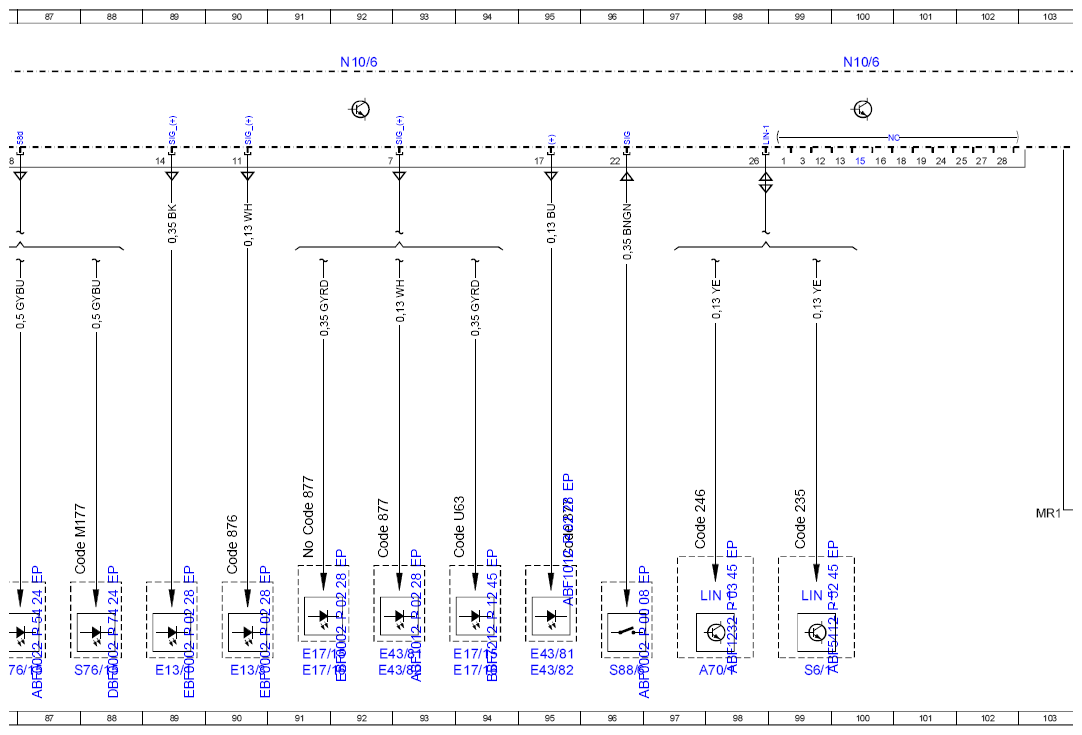

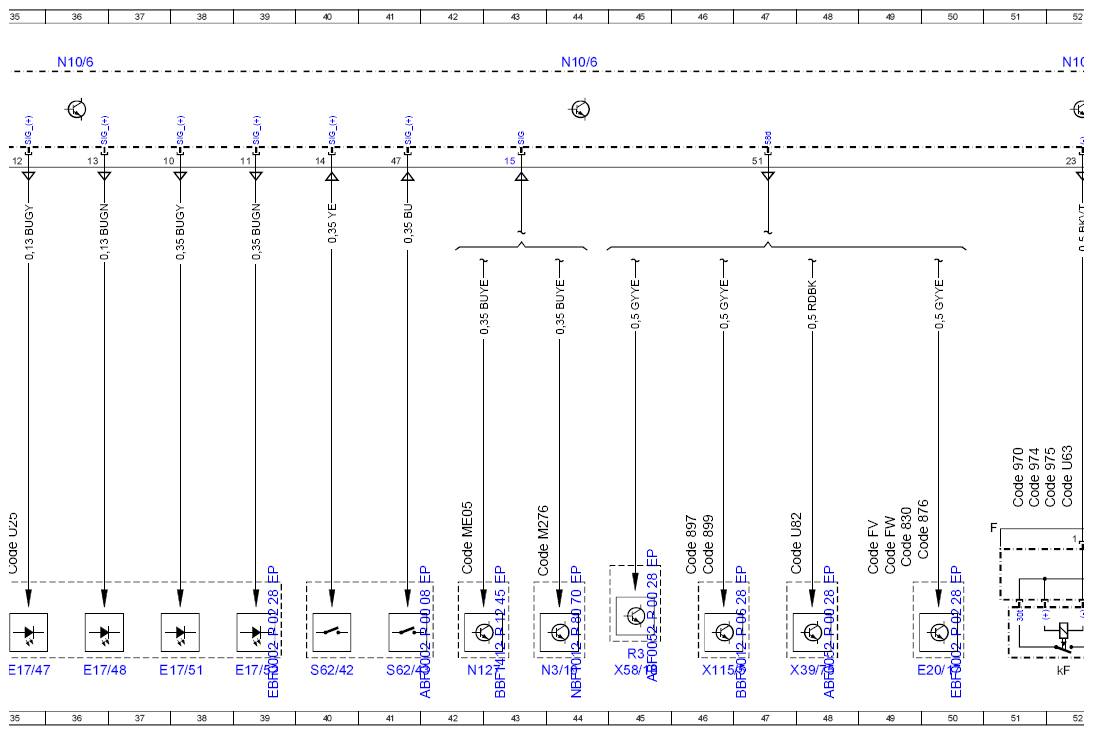

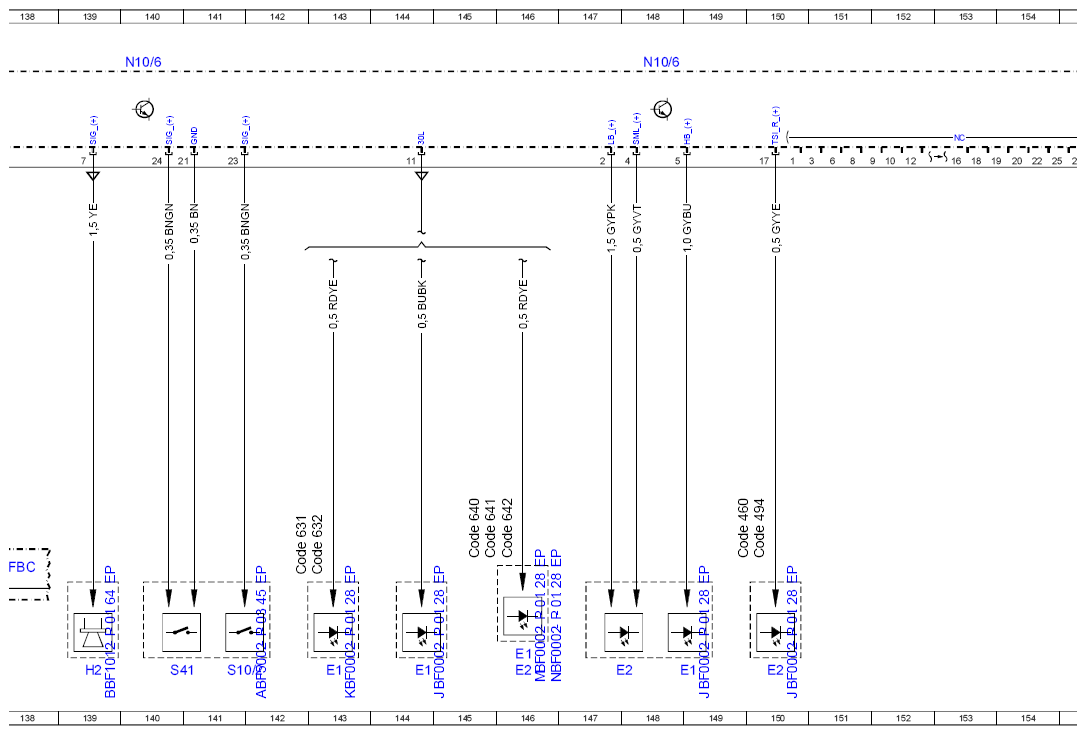

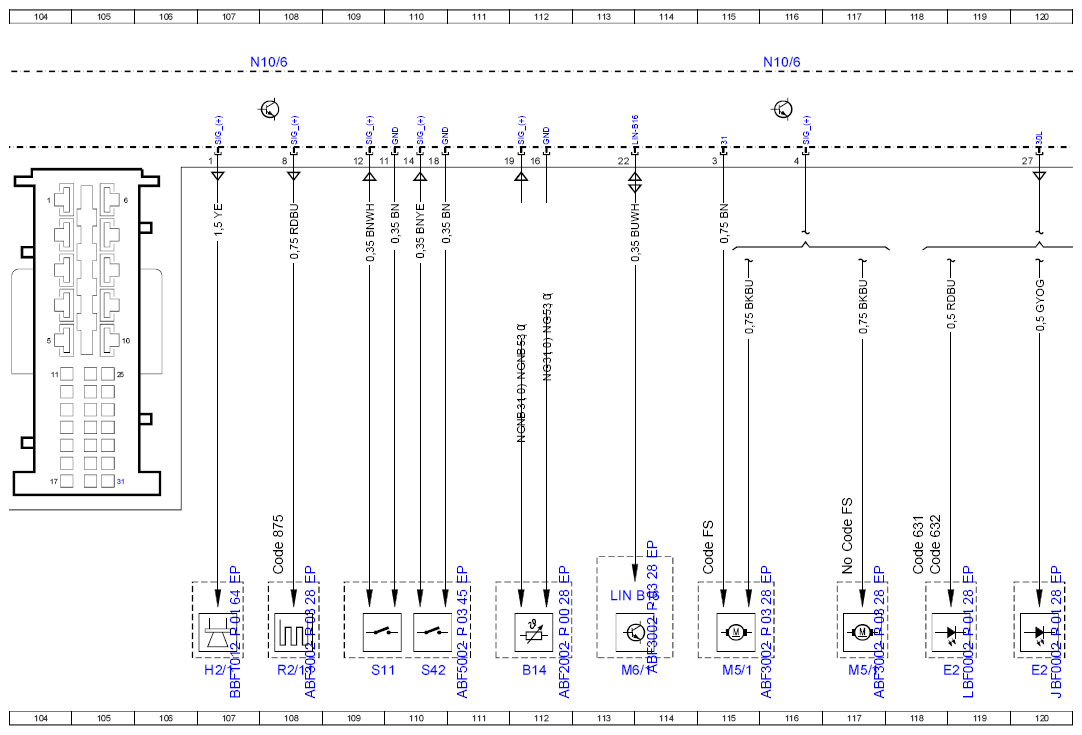

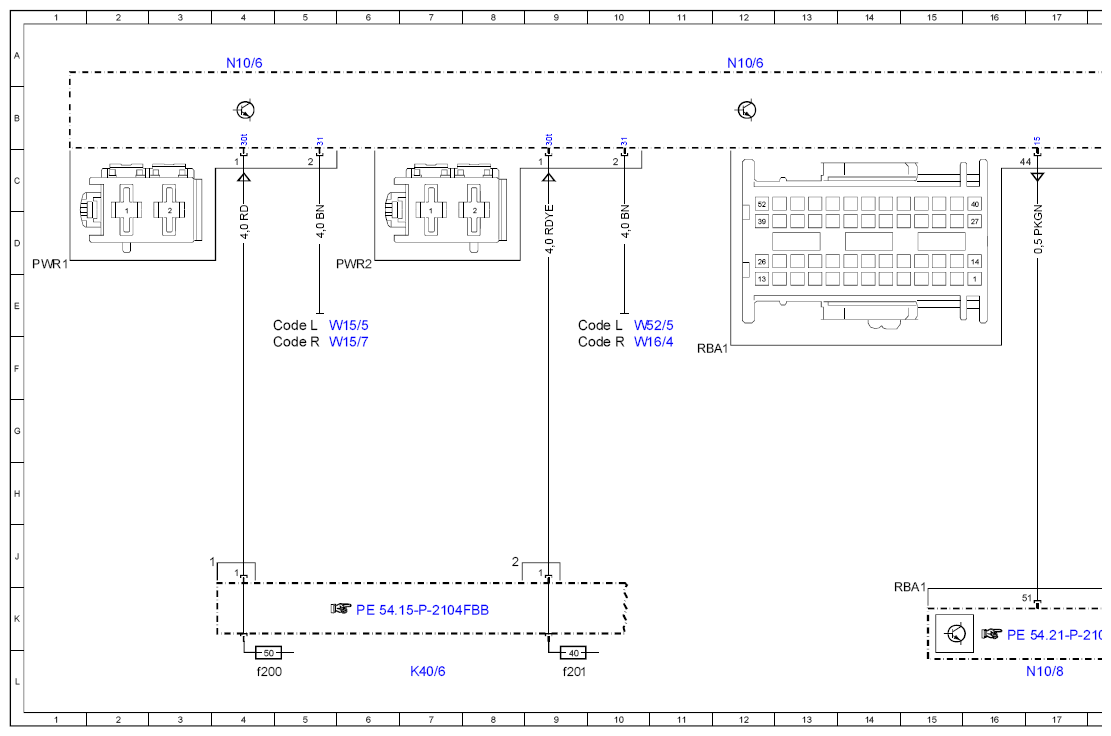

Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97FBC
Model 205 as of model year 2019 Control unit N10/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 178L |
| A50/6 | Dedicated Short-Range Communications control unit | 22L |
| A70/1 | Analog clock | 98L |
| B14 | Outside temperature sensor | 112L |
| B38/2 | Rain/light sensor with additional functions | 25L |
| B95 | Battery sensor | 27L |
| B95 | Battery sensor | 29L |
| B95 | Battery sensor | 31L |
| CAN B | Interior CAN | 23K |
| Code 235 | Active Park Assist | 99J |
| Code 246 | Analog clock | 97J |
| Code 413 | Panoramic sliding sunroof | 67J |
| Code 425 | 6-speed manual transmission | 81J |
| Code 460 | Canada version | 125J |
| Code 460 | Canada version | 150J |
| Code 494 | USA version | 125J |
| Code 494 | USA version | 150J |
| Code 498 | Japan version | 22J |
| Code 540 | Electric roller sun blind for rear window | 67J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 62J |
| Code 631 | Static LED headlamp, left-hand traffic | 118J |
| Code 631 | Static LED headlamp, left-hand traffic | 142J |
| Code 632 | Static LED headlamp, right-hand traffic | 118J |
| Code 632 | Static LED headlamp, right-hand traffic | 143J |
| Code 640 | High Performance LED | 121J |
| Code 640 | High Performance LED | 145J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 145J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 121J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 121J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 146J |
| Code 830 | Additional parts for China vehicles | 49J |
| Code 830 | Additional parts for China vehicles | 67J |
| Code 830 | Additional parts for China vehicles | 69J |
| Code 867 | SPLITVIEW | 64J |
| Code 875 | Heated windshield washer system | 108J |
| Code 876 | Interior lights package | 57H |
| Code 876 | Interior lights package | 50J |
| Code 876 | Interior lights package | 69J |
| Code 876 | Interior lights package | 90J |
| Code 877 | Ambiance illumination | 57H |
| Code 877 | Ambiance illumination | 69H |
| Code 877 | Ambiance illumination | 91J |
| Code 877 | Ambiance illumination | 92J |
| Code 877 | Ambiance illumination | 95J |
| Code 897 | Wireless mobile phone charging | 46J |
| Code 899 | Wireless phone charging at front and antenna | 46J |
| Code 965 | Taxi/rental car - Pre-installation | 63J |
| Code 970 | Police emergency vehicles | 51H |
| Code 974 | Fire department lead emergency vehicle preinstallation | 51H |
| Code 975 | Emergency physician vehicle preinstallation | 52H |
| Code B01 | 48V technology | 32J |
| Code FA | CABRIOLET | 61J |
| Code FS | STATION WAGON | 115J |
| Code FS | STATION WAGON | 117J |
| Code FV | LONG SEDAN | 49J |
| Code FV | LONG SEDAN | 66J |
| Code FV | LONG SEDAN | 68J |
| Code FW | SEDAN | 49J |
| Code FW | SEDAN | 69J |
| Code L | LEFT-HAND DRIVE | 4E |
| Code L | LEFT-HAND DRIVE | 9E |
| Code M177 | SPARK-IGNITION ENGINE M177 | 28J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 86J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 88J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 28J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 61J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 29J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 44J |
| Code M654 | DIESEL ENGINE OM654 | 27J |
| Code M654 | DIESEL ENGINE OM654 | 61J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 42J |
| Code R | RIGHT-HAND DRIVE | 4F |
| Code R | RIGHT-HAND DRIVE | 9F |
| Code U10 | SBE - Seat occupancy recognition | 21J |
| Code U25 | Illuminated door sills | 35J |
| Code U63 | Driving school package | 52H |
| Code U63 | Driving school package | 64J |
| Code U63 | Driving school package | 94J |
| Code U82 | USB port in rear passenger compartment | 48J |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 27H |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 29H |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 30J |
| E1 | Left front lamp unit | 123L |
| E1 | Left front lamp unit | 126L |
| E1 | Left front lamp unit | 122L |
| E1 | Left front lamp unit | 144L |
| E1 | Left front lamp unit | 143L |
| E1 | Left front lamp unit | 148L |
| E1 | Left front lamp unit | 146L |
| E13/1 | Glove box lamp | 89L |
| E13/3 | Stowage compartment illumination | 90L |
| E17/15 | Right front footwell lamp | 91L |
| E17/15 | Right front footwell lamp | 94L |
| E17/16 | Left front footwell lamp | 94L |
| E17/16 | Left front footwell lamp | 91L |
| E17/17 | Left rear footwell lamp | 69L |
| E17/18 | Right rear footwell lamp | 69L |
| E17/47 | Left front illuminated door sill molding | 35L |
| E17/48 | Right front illuminated door sill molding | 36L |
| E17/51 | Left rear illuminated door sill molding | 37L |
| E17/52 | Right rear illuminated door sill molding | 39L |
| E2 | Right front lamp unit | 122L |
| E2 | Right front lamp unit | 120L |
| E2 | Right front lamp unit | 124L |
| E2 | Right front lamp unit | 118L |
| E2 | Right front lamp unit | 147L |
| E2 | Right front lamp unit | 150L |
| E2 | Right front lamp unit | 146L |
| E20/17 | Center console cup holder illumination | 50L |
| E20/18 | Front center console cup holder ambiance illumination | 57K |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 55L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 55L |
| E43/44 | Upper left center console ambient lighting | 57K |
| E43/45 | Upper right center console ambient lighting | 57K |
| E43/46 | Lower left center console ambient lighting | 57L |
| E43/47 | Lower right center console ambient lighting | 57L |
| E43/81 | Left front footwell ambiance illumination | 92L |
| E43/81 | Left front footwell ambiance illumination | 95L |
| E43/82 | Right front footwell ambiance illumination | 95L |
| E43/82 | Right front footwell ambiance illumination | 92L |
| F96 | Additional battery circuit 30 fuses | 58L |
| G1 | On-board electrical system battery | 31L |
| H2 | Left fanfare horn | 139L |
| H2/1 | Right fanfare horn | 107L |
| K114 | ECO start/stop function additional battery relay | 60L |
| K40/6 | Driver-side fuse and relay module | 7L |
| K40/6 | Driver-side fuse and relay module | 53L |
| K40/6f200 | Fuse 200 | 4L |
| K40/6f202 | Fuse 202 | 9L |
| K40/6kF | Circuit 15R relay | 52L |
| K40/8 | Engine fuse and relay module | 137L |
| K40/8kG | Engine compartment terminal 15 relay | 135L |
| K57/4 | Battery disconnect switch relay | 34L |
| LIN 1 | Instrument panel LIN | 99K |
| LIN 1 | Instrument panel LIN | 98K |
| LIN B15 | Battery sensor LIN | 27K |
| LIN B15 | Battery sensor LIN | 30J |
| LIN B15 | Battery sensor LIN | 29K |
| LIN B15 | Battery sensor LIN | 32K |
| LIN B16 | Rain and light sensor LIN | 25K |
| LIN B16 | Rain and light sensor LIN | 113K |
| M5/1 | Windshield washer system pump | 115L |
| M5/1 | Windshield washer system pump | 117L |
| M6/1 | Wiper motor | 113L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 28A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 44A |
| N10/6 | Front SAM control unit | 52A |
| N10/6 | Front SAM control unit | 60A |
| N10/6 | Front SAM control unit | 68A |
| N10/6 | Front SAM control unit | 76A |
| N10/6 | Front SAM control unit | 85A |
| N10/6 | Front SAM control unit | 92A |
| N10/6 | Front SAM control unit | 100A |
| N10/6 | Front SAM control unit | 108A |
| N10/6 | Front SAM control unit | 116A |
| N10/6 | Front SAM control unit | 124A |
| N10/6 | Front SAM control unit | 132A |
| N10/6 | Front SAM control unit | 140A |
| N10/6 | Front SAM control unit | 148A |
| N10/6 | Front SAM control unit | 155A |
| N10/6 | Front SAM control unit | 166A |
| N10/6 | Front SAM control unit | 160A |
| N10/8 | Rear SAM control unit | 17L |
| N110 | Weight Sensing System (WSS) control unit | 21L |
| N127 | Drivetrain control unit | 42L |
| N2/10 | Supplemental restraint system control unit | 19L |
| N26/5 | Electric steering lock control unit | 81L |
| N3/10 | ME-SFI [ME] control unit | 44L |
| N72/1 | Upper control panel control unit | 80L |
| N83/1 | DC/DC converter control unit | 32L |
| R2/11 | Spray nozzle hose heater | 108L |
| R3 | Front cigarette lighter with ashtray illumination | 45L |
| S1 | Exterior lights switch | 84L |
| S10/2 | Right front brake wear sensor | 141L |
| S11 | Brake fluid level switch | 109L |
| S138/4 | Rear window roller sun blind button | 67L |
| S138/5 | Panoramic sliding sunroof roller sun blind button | 67L |
| S146 | Pedal operation monitor switch | 64L |
| S18/7 | Footwell illumination switch | 64L |
| S21 | Center console anti-theft alarm system switch group | 62L |
| S41 | Coolant level switch | 140L |
| S42 | Windshield washer system washer fluid level switch | 110L |
| S54/10 | Right luggage compartment rear backrest release button | 65K |
| S54/11 | Left rear backrest release button | 65L |
| S54/12 | Right rear backrest release button | 65L |
| S54/9 | Left luggage compartment rear backrest release button | 65K |
| S6/1 | Driver-side instrument panel button group | 99L |
| S62/42 | Passenger side engine hood contact switch | 40L |
| S62/43 | Driver side engine hood contact switch | 41L |
| S76/15 | Electric parking brake switch | 86L |
| S76/15 | Electric parking brake switch | 88L |
| S88/6 | Separate trunk lid lock switch | 96L |
| S93/2 | Two-way radio switch | 63L |
| V19 | ECO start/stop function diode | 59L |
| W15/5 | Left front footwell ground point | 5E |
| W15/7 | Right front footwell ground point | 5F |
| W16/4 | Right major assembly compartment ground point | 10F |
| W52/5 | Left center longitudinal member ground point | 10E |
| X115/5 | Front center console USB connector | 46L |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 23L |
| X39/75 | Rear USB electrical connector | 48L |
| X58/18 | Right rear center console 12V socket | 45L |
