Remove/Install Battery Sensor - AR54.10-P-0002LW

Model 205 (except 205.012/047/147/212/247)

Model 213

except code B01 (48V technology)

Model 238, 253, 293

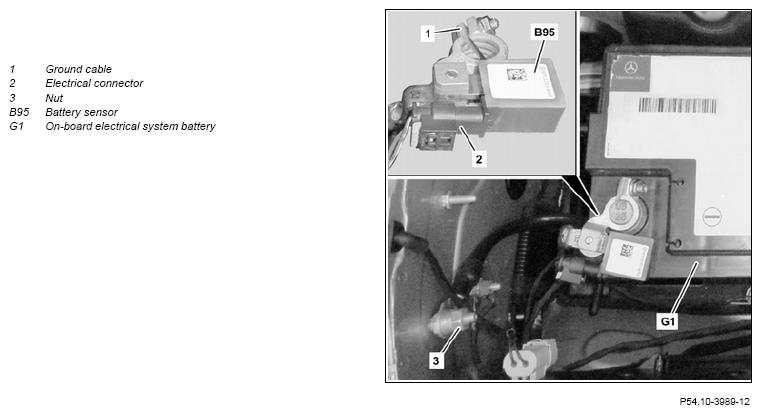

Shown on model 213.### 1#

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Remove/install
1	Disconnect ground line (1) from on-board electrical system battery (G1).	Model 293	AR54.10-P-0003EQ
		Model 238	AR54.10-P-0003LWO
		Model 205 (except 205.012/047/147/212/247) Model 213 except code B01 (48V technology) Model 253	AR54.10-P-0003LW
2	Release and disconnect electrical connector (2).
3	Detach nut (3) and remove ground line (1) with battery sensor (B95).	The ground line (1) and the battery sensor (B95) are one component and cannot be replaced individually.
		Model 293 Right on-board electrical system battery ground point	*BA00.19-P-1002-02F
		Model 238 Battery ground point	*BA00.19-P-1034-02B
		Model 213 except code B01 (48V technology) Battery ground point	*BA00.19-P-1035-02A
		Model 205 (except 205.012/047/147/212/247) as of model year 2019 Model 205 (except 205.012/047/147/212/247) up to model year 2019 Model 253 Battery ground point	*BA00.19-P-1010-01E
4	Install in the reverse order.
