Remove/Install 12 Volt Socket - AR54.10-P-1000LW

Model 205, 213, 253

Courtesy of MERCEDES-BENZ USA

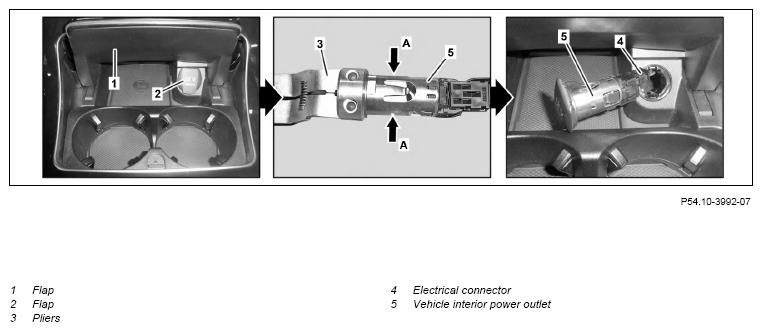

Shown on model 205, installation location of instrument panel

	Remove/install
1	Switch off ignition
2	Open flap (1)
3	Open flap (2) on vehicle interior socket (5)
4	Release vehicle interior socket (5) using pliers (3) and pull out until electrical connector (4) is accessible	The jaws of the pliers (3) must engage in the cutouts of the housing of the vehicle interior socket (5) (arrows A). Align the flap (2).
		Pliers	Fig 1
5	Disconnect electrical connector (4) and remove vehicle interior socket (5)
6	Install in the reverse order

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
