Reversing Camera (RFK), Function - GF54.65-P-0005RF
Model 205
up to model year 2019
with code 218 (Rear view camera)
except code 235 (Parking Pilot with PARKTRONIC)
Model 253 (except 253.99)
up to model year 2020
with code 218 (Rear view camera)
except code 235 (Parking Pilot with PARKTRONIC)
Function requirements, general
- Terminal 15 ON
- Function enabled through control menu on the head unit
- Reverse gear (transmission 716) or gear range "R" (transmission 722, 724, 725) engaged
- Trunk lid or liftgate closed

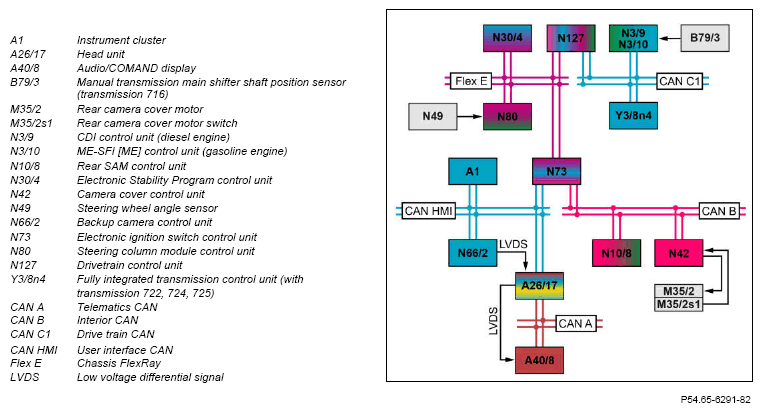

The electronic ignition lock control unit sends the status of circuit 15 to the reversing camera control unit via user interface CAN.
The head unit sends the function enable to the reversing camera control unit via user interface CAN.
If the trunk lid or liftgate is not closed, the picture on the Audio/COMAND display is overlaid with a warning message. The guide lines are hidden from view.
The rear SAM control unit sends information on the status of the trunk lid or liftgate (open or closed) over the interior CAN, electronic ignition lock control unit and the user interface CAN to the reversing camera control unit.
During commissioning and after replacement of the reversing camera control unit or the trunk lid or liftgate, the reversing camera must be coded again using the diagnosis tester. The reversing camera is calibrated automatically after initial startup.
Reversing camera, general
The reversing camera control unit is an optical parking aid. Its tasks include the recording of images of the surrounding area to the rear of the vehicle, the generation of dynamic and static guide lines and the transmission of the picture data to the head unit. The pictures recorded by the reversing camera using an extended angle of vision of ∠ > 180° are processed accordingly by the integrated control unit. The current driving path is shown on the Audio/COMAND display in the form of guide lines based on the vehicle dimensions, vehicle speed and steering angle. The reversing camera function comprises the following subfunctions:
- Function sequence for activating/deactivating reversing camera
- Function sequence for actuating the camera cover
- Function sequence for picture recognition, picture output
Function sequence for activating/deactivating reversing camera
The reversing camera control unit is activated when reverse gear or the "R" drive range is engaged.
Vehicle with transmission 716:
Engaging the reverse gear is recorded by the manual transmission main shifter shaft position sensor. The CDI control unit or the ME-SFI [ME] control unit reads in the signal of the manual transmission main shifter shaft position sensor directly, uses it to generate the "Reverse gear engaged" signal and transmits this to the electronic ignition lock control unit via the drive train CAN, the powertrain control unit and the chassis FlexRay.
The reversing camera control unit evaluates the input factors and activates or deactivates the reversing camera function.
The reversing camera control unit is deactivated under the following conditions:
- Vehicle speed during forward travel v > 12 km/h
- Driving distance during forward travel s > 10 m
- Time period t > 255 s when reverse gear not engaged or gear range "R" not engaged
- Gear range "P" engaged (with transmission 722, 724, 725)
- Circuit 15 OFF
Vehicle with transmission 722, 724, 725:
Gear range "R" is engaged through the fully integrated transmission control unit. The fully integrated transmission control unit then sends the "Gear range R engaged" status to the electronic ignition lock control unit over the drive train CAN, powertrain control unit and suspension FlexRay.
The electronic ignition lock control unit uses the incoming information to generate the "Reverse gear engaged" status that is independent of the transmission variant and sends this via user interface CAN to the reversing camera control unit.
Function sequence for actuating the camera cover
In order to protect the camera lens from dirt, it is covered by a camera cover. The camera cover is automatically opened or closed according to the status of the reversing camera control unit (activated or deactivated). The camera cover is opened and closed when requested by the reversing camera control unit. The reversing camera control unit sends this over the user interface CAN, electronic ignition lock control unit and the interior CAN to the camera cover control unit. The camera cover control unit then actuates the rear camera cover motor directly. The status of the rear camera cover (open or closed) is detected from the rear camera cover motor switch. The camera cover control unit reads in the status of the rear camera cover motor switch and sends this over the interior CAN, electronic ignition lock control unit and the user interface CAN to the reversing camera control unit.
To allow the camera lens to be cleaned, the camera cover can be opened using the control menu of the head unit. During this, no image is shown in the Audio/COMAND display. The head unit sends the "Service mode" request to the reversing camera control unit via user interface CAN. The further course of signals corresponds to that for the opening of the camera cover when the reversing camera is activated.
The camera cover is automatically closed from a speed of v > 30 km/h (irrespective of any calibration procedure) or after switching off circuit 15. During a calibration procedure, it is possible that the camera cover remains open for the duration of the calibration even after the reversing camera function has been deactivated. The camera cover is not closed until after the calibration is complete.
Additional function requirements for picture recording and picture output
- Reversing camera control unit activated
Function sequence for picture recognition, picture output
The reversing camera control unit sends the request to display the picture data over the user interface CAN to the head unit, processes the recorded camera pictures and then sends the processed picture data over the low voltage differential signaling line to the head unit. The head unit activates the Audio/COMAND display via the telematics CAN and sends the processed image data via the LVDS line to the Audio/COMAND display. The processed picture data is then shown on the Audio/COMAND display.
The reversing camera control unit uses the steering wheel angle and stored vehicle parameters (lane and exterior contour of the vehicle) to calculate guide lines which are superimposed on the display.
The steering angle is recorded by the steering wheel angle sensor. The steering column tube module control unit reads in the signals of the steering wheel angle sensor directly and sends information regarding the steering wheel angle via chassis FlexRay, electronic ignition lock control unit and user interface CAN to the reversing camera control unit.
The reversing camera function can be operated in the following modes which the driver can select:
- Maneuvering mode
- Trailer mode (with CODE 550 (Trailer hitch))
- Wide-angle mode
The corresponding selection is made on the head unit's control menu in the appropriate control level.
If the reversing camera was previously operated in maneuvering mode, the maneuvering mode is activated again when reverse gear or the "R" gear range is engaged. This function does not apply if the reversing camera was previously operated in trailer mode.
Maneuvering mode:
The maneuvering mode assists the driver when reversing while parking. To do so, dynamic guide lines are shown in the display in addition to the pictures recorded by the reversing camera.

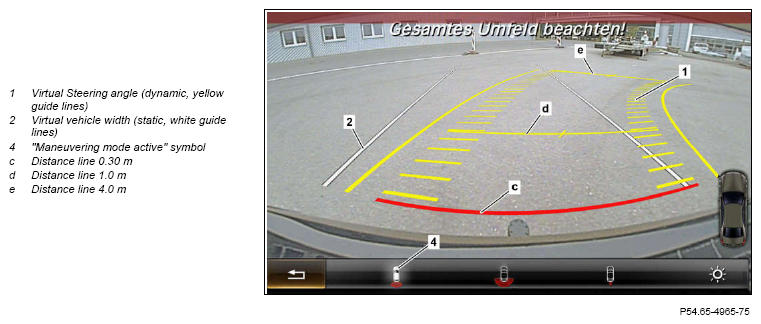

Display of dynamic and static guide lines (when wheels are turned in), shown on model 222
The virtual steering angle (yellow guide lines) is shown as soon as the driver engages reverse gear or the gear range "R". It indicates to the driver the path that the vehicle would follow with the current steering wheel angle. This curve is automatically adapted as the steering wheel angle changes. The distance between the virtual steering angle (yellow guide lines) corresponds to slightly more than the width of the vehicle. Parking procedure:
To park, the driver must alter the steering wheel angle until one of the outer yellow guide lines virtually touches the parking space marking. The parking space marking can, for example, be another vehicle or a line on the asphalt. The driver must then continue reversing and adapting the steering wheel angle until the parking space markings run parallel to the current direction of travel.
Virtual vehicle width (white guide lines):
position in order to drive in a straight line up to the final position in the parking space. When doing so, the driver can check using the virtual vehicle width (white guide lines) whether the vehicle is straight in relation to the parking space and whether the parking space is wide enough.
The white guide lines symbolize the vehicle width including the outside mirrors.
The distance lines inform the driver of the distances between the rear area and obstacles.
Trailer mode (with code 550 (Trailer hitch)):
Trailer mode supports the driver when reversing to a trailer by zooming to the trailer hitch's ball head. To do so, special guide lines are shown in the display in addition to the pictures recorded by the reversing camera.

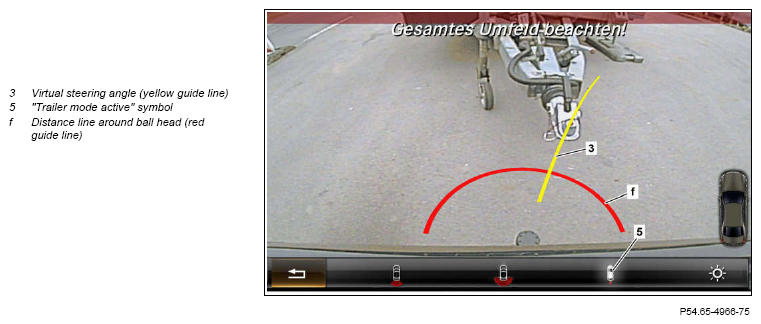

Display of distance lines in trailer mode (with CODE 550 (Trailer hitch)); shown on model 222
Virtual steering angle (yellow guide line):
The virtual steering angle (yellow guide line) and the distance line (red guide line) are shown as soon as the driver engages reverse gear or the gear range "R". The virtual steering angle indicate to the driver the path which the vehicle would follow with the current steering wheel angle. This curve is automatically adapted to the situation as the steering angle changes. The length of the guide line corresponds to approx. s = 1 m. Distance line around the ball head (red guide line):
The distance line (red guide line) is shown with a radius of s = 0.30 m around the ball head.
All the guide lines are hidden for an attempted correction (forward travel) and shown again when the reverse gear or gear range "R" is engaged again taking the following parameters into consideration:
- Time period t < 255 s
- Vehicle speed v < 12 km/h
- Driving distance s < 10 m forward travel
The picture displayed disappears when these parameters are exceeded. The reversing camera then remains in standby mode.
The direction of travel is defined using the wheel rotation direction. The vehicle speed is calculated from the wheel speed.
The Electronic Stability Program control unit sends the corresponding information via the suspension FlexRay, electronic ignition lock control unit and user interface CAN to the instrument cluster. The instrument cluster calculates the vehicle speed to be displayed and sends it via user interface CAN to the reversing camera control unit.
Wide-angle mode:
The wide-angle mode supports the driver when reversing in unclear traffic areas. The reversing area is shown in the Audio/COMAND display as a three-part view with an angle of ∠ > 180°. This gives the driver a clear view of crossing roads in good time, e.g. when reversing out of narrow streets.

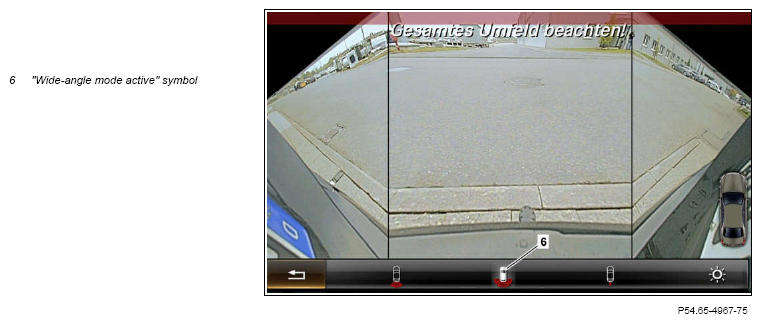

Display of reversing area in wide-angle mode, shown on model 222
